17
1. Overview 2. Installation
3. Optional
Installation
4a. INSTALLING AND WIRING
ELECTRICAL POWER CONT’D

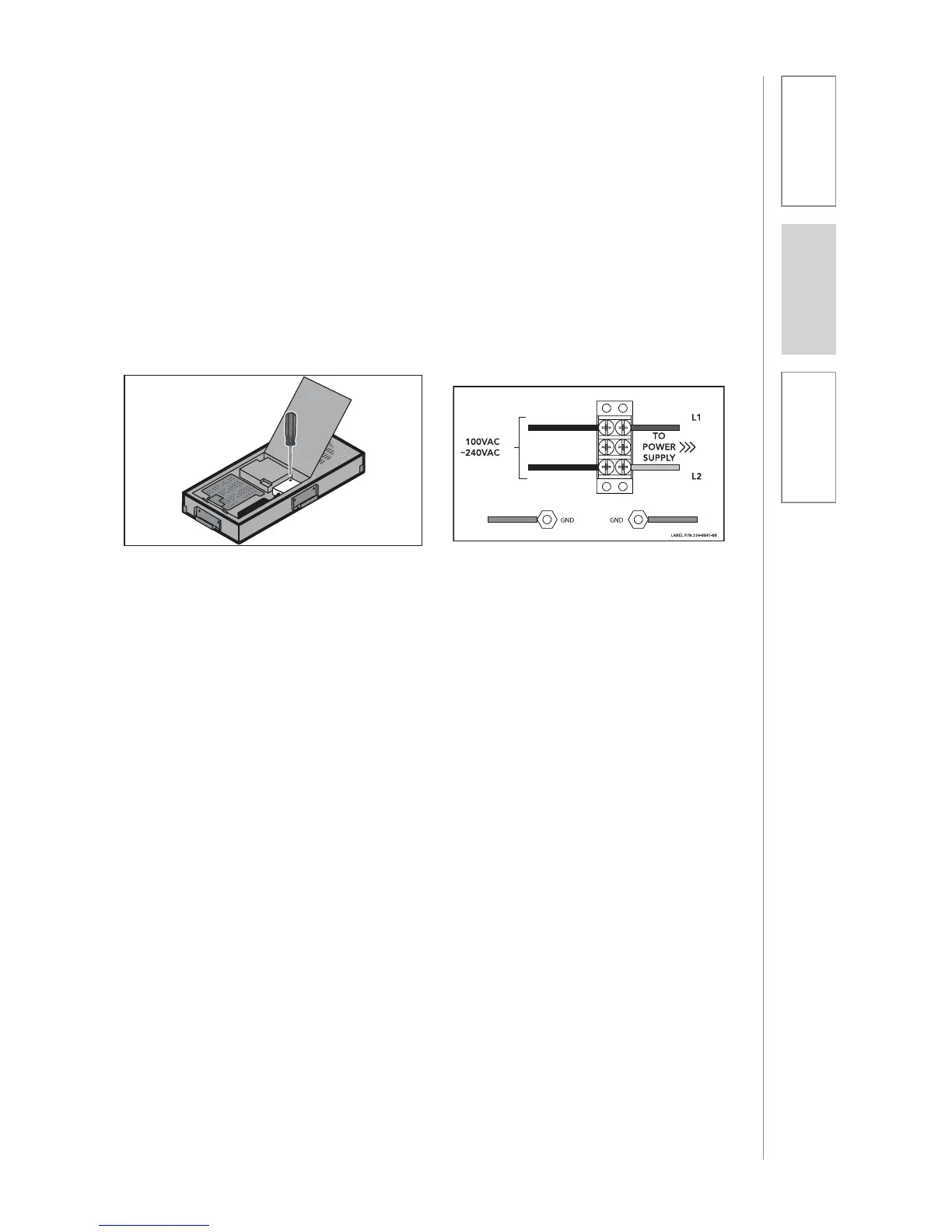

d. Remove the lid to the internal electrical box by loosening the two screws and
sliding the lid out. (See figure 2)
e. Attach the ground wire to the grounding lug provided. Attach the remaining
two wires to the terminal block screws as indicated. (See Figure 3)
f. Replace the cover on the internal electrical box and turn the electrical circuit
back on at the main breaker.
Figure 3Figure 2
Note: When hard wiring AC power to Topcat, electrical codes require
for the Topcat to be permanently affixed to the ceiling rail. Utilizing ex-
isting holes on the vertical section of the ceiling rail (center of the hole
to the base of the rail must be a minimum of 15mm) drill two screw on
each 2’ side of the Topcat. Drilling these screws into the designated
areas of the Topcat chassis will not cause harm to the product. (see
figure 3, page 14).
