18
1. Overview 2. Installation
3. Optional
Installation
4a. INSTALLING AND WIRING
ELECTRICAL POWER CONT’D
To building
AC power mains
Power supply
90V
to
260V

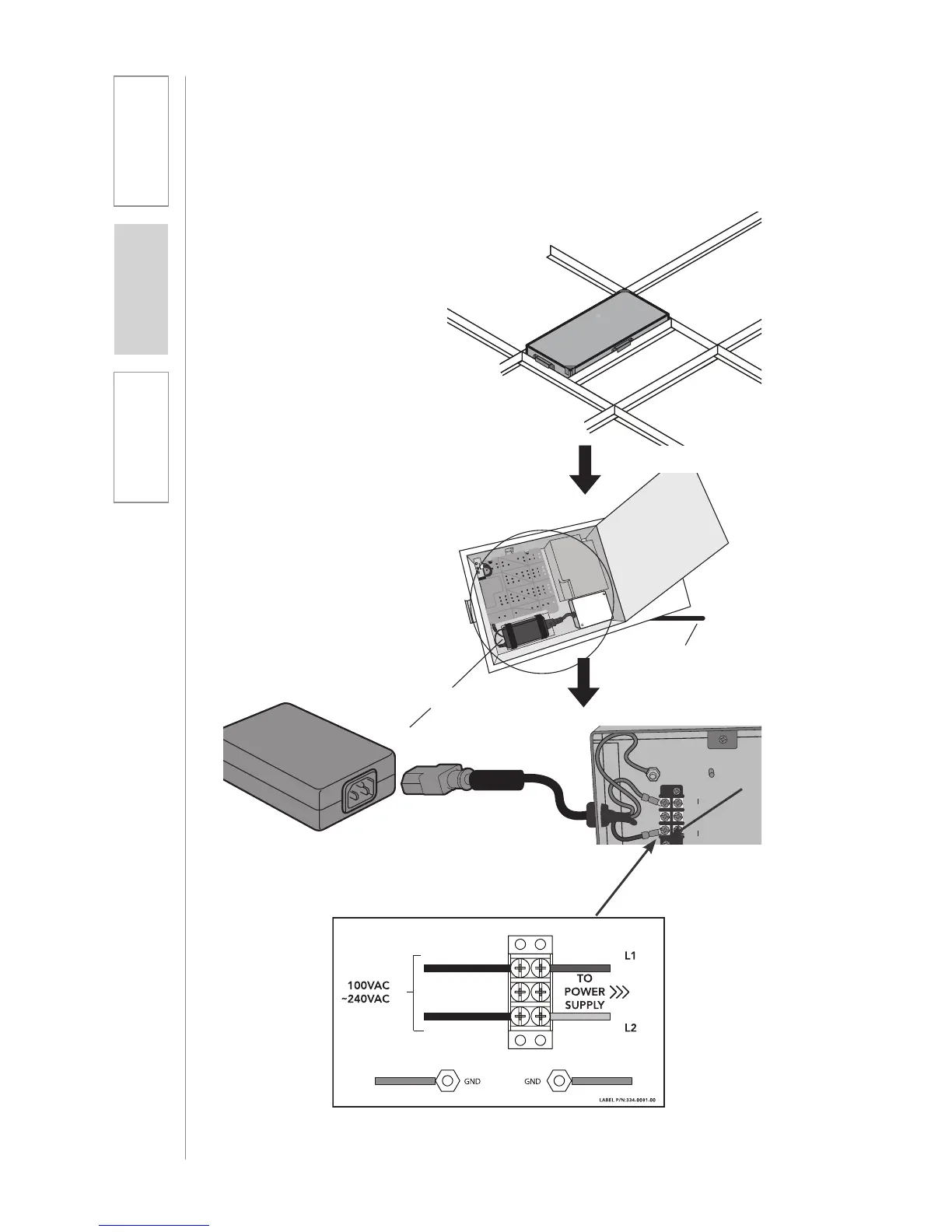

Wiring AC Power to the Topcat
Note: When hard wiring AC
power to Topcat, electrical
codes require for the Topcat to
be permanently affixed to the
ceiling rail. Utilizing existing
holes on the vertical section of
the ceiling rail (center of the
hole to the base of the rail must
be a minimum of 15mm) drill
two screw on each 2’ side of the
Topcat. Drilling these screws
into the designated areas of
the Topcat chassis will not
cause harm to the product. (see
figure 3, page 14)
