Lightware DVI-OPT-TX220-ST-Pro - Mechanical Drawings


10. Appendix DVI-OPT-220-Pro series – User's Manual 38

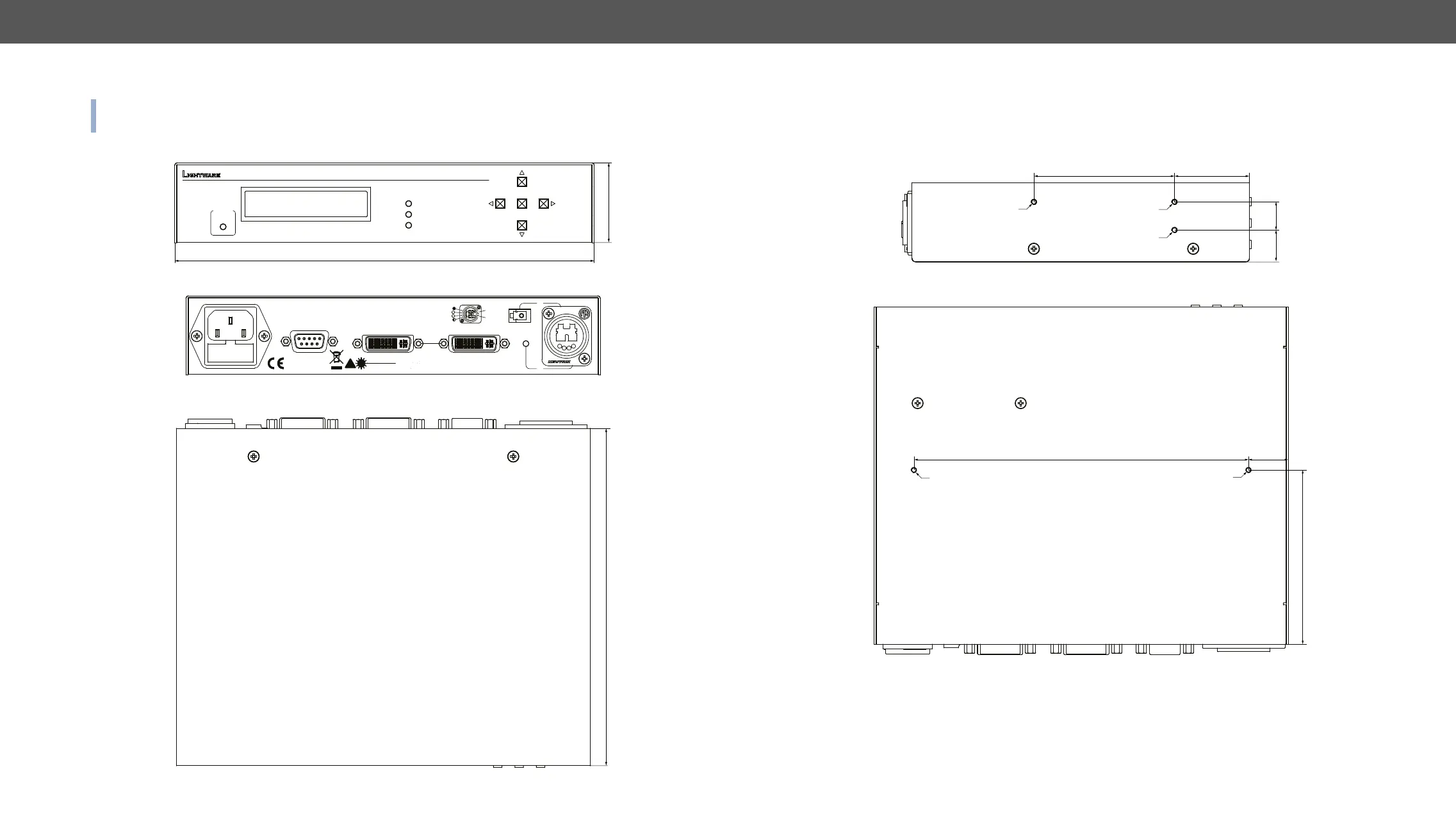

Mechanical Drawings

units are the same.

Rear View
Top View
POWER
SOURCE CONNECTED (pin14 +5V)
LASER ACTIVE
DVI INPUT SIGNAL PRESENT ENTER
DVI Multimode Fiber Transmitter
DVI-OPT-TX220-Pro
42.2
221
A
B
DVI INPUT LOCAL MONITOR OUTPUT
100-240 V AC
FUSE: F 1 A
50/60 Hz 0.7 A
Remote power for receiver DC OUT +15V
GND
Remote power for receiver DC OUT +15V
GND
LASER
ACTIVE
FIBER OUTPUT (A):
50/125 MULTIMODE
RoHS
Made in EU, HU
B
A
LOCAL CONTROL
RS-232
Laser Radiation
850 nm, Class 3
181
Left View
Bottom View
17
15
40
75
M3 thread
M3 thread
M3 thread
178.5
M3 thread
M3 thread
21.7
93




