6.8.2. Network tab
Network-related settings are available on the tab.

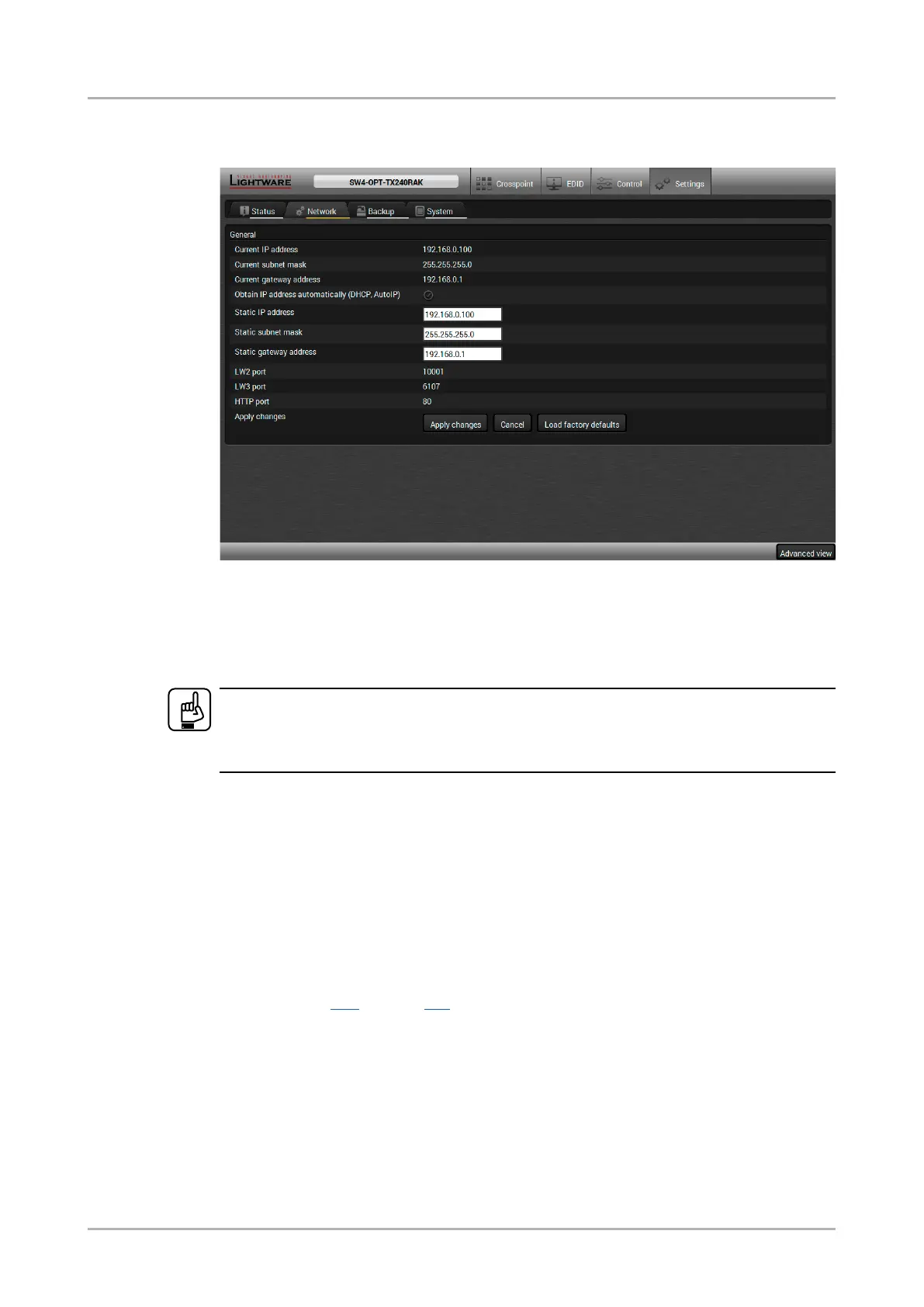

Settings menu, Network tab
The actual status of IP settings is shown in the rst three lines. When static IP address is
used, the DHCP option shall be unticked and below three lines can be used to dene the
IP settings. The device is able to communicate with LW2 and LW3 protocols, the ports can
be set in the displayed lines.
ATTENTION!
Connecting to the transmitter via Ethernet and using LW2 port no. (default is 10001) the
device will accept LW2 protocol commands. Using LW3 port no. (default is 6107) the device
will accept LW3 protocol commands.
6.8.3. Function buttons
System log button
Logged events can be collected and saved into a le which is useful when troubleshooting
or in another special case for analyzing. Data collecting may take some minutes. You will
be prompted about log generating before starting. When the collecting is done, the Save as
window appears; select the desired location and press the Save button.
Factory defaults button
Factory default values can be restored by pressing the button; you will be asked to conrm.
The connection will be terminated and the device is rebooted. Factory default values are
listed in section 11.6 on page 104.
Reboot button
The device can be restarted; the connection will be terminated.
HDMI-3D-OPT-TX200 series
User’s manual
Software control Page 45 / 106
