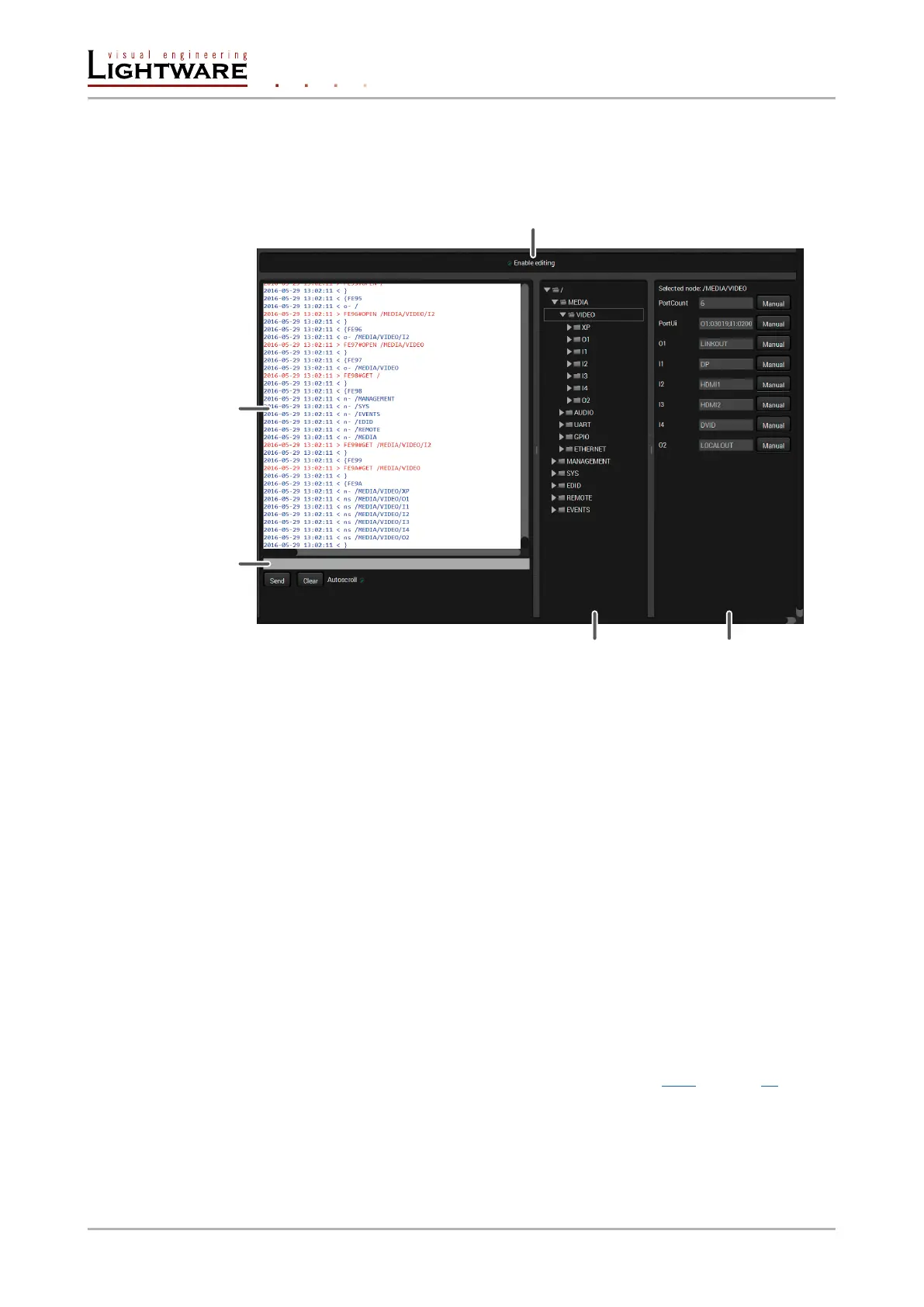

6.10. Advanced view
Advanced view is the surface for LW3 protocol tree with a terminal window. Commands and
specic parameters (which are not available on the graphical user interface of the LDC)
can be run and set.
1
Edit mode
The default appearance is the read-only mode. If you want to
modify the values or parameters, tick the option. You will be
prompted to conrm your selection.
2
Terminal window
Commands and responses with time and date are listed in this
window. Sent command is displayed in red and starts with ‘>’
character, received response is displayed in blue and starts
with ‘<’ character. The content of the window can be emptied
by the Clear button. If the Autoscroll option is ticked, the list is
scrolled automatically when a new line is added.
3
Command line
Type the desired command and execute it by the Send button.
4
Protocol tree
LW3 protocol tree; select an item to see its content.
5
Node list
Correspondent parameters and nodes are shown which are
connected to the selected item in the protocol tree.
Manual button: Manual (short description) of the node can
be called and displayed in the terminal window. See more
information about manuals in section 8.3.4 on page 69.
Set button: Saves the value/parameter typed in the textbox.
Call button: Calls the method, e.g. reloads factory default
settings.
2
3
4 5
Page 48 / 106 Software control
