Mounting guidelines for DL2
The DL2 column is supplied with either 8 mm end plates or 3 mm end plates.
8 mm end plates:
For mounting on the desk frame there are 4 holes for M10 bolts. It is recommended to use all 4 bolts.
3 mm end plates:
For mounting on the desk frame there are 4 holes in the column for DG 80 x 35 screws. It is recommended to
use all 4 screws.
As the table top amplifies the sound we advise you to place a vibration/shock-absorbing material between
the table top and the table frame.
The outer profile of the DL2 column has tracks, which can be used for mounting a bracket. The mounting
bracket can be used for e.g.:
Mounting a customised cover (for encapsulation of the DL2).
Mounting of a computer

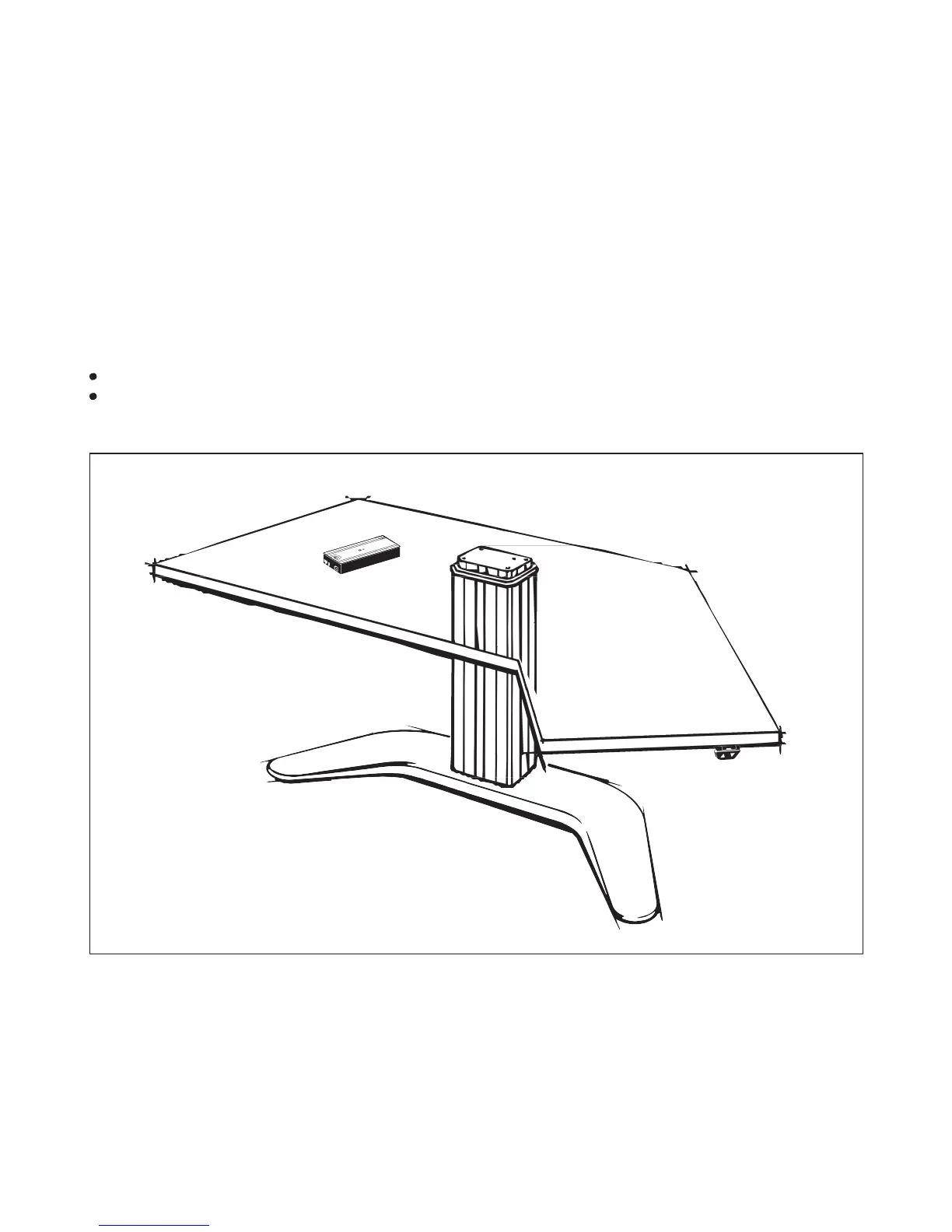

Figure 1
Example of how to mount a DL2 system
