Mounting guidelines CBD6S (SMPS)
The control box is to be fastened with 2 screws with a head diameter between ø 8 and ø 10 mm. Out of
regard for the tension surface ø 10 mm is preferable due to lower surface tension. See drawing appendix for
placing of mounting holes and the space the CBD takes up.

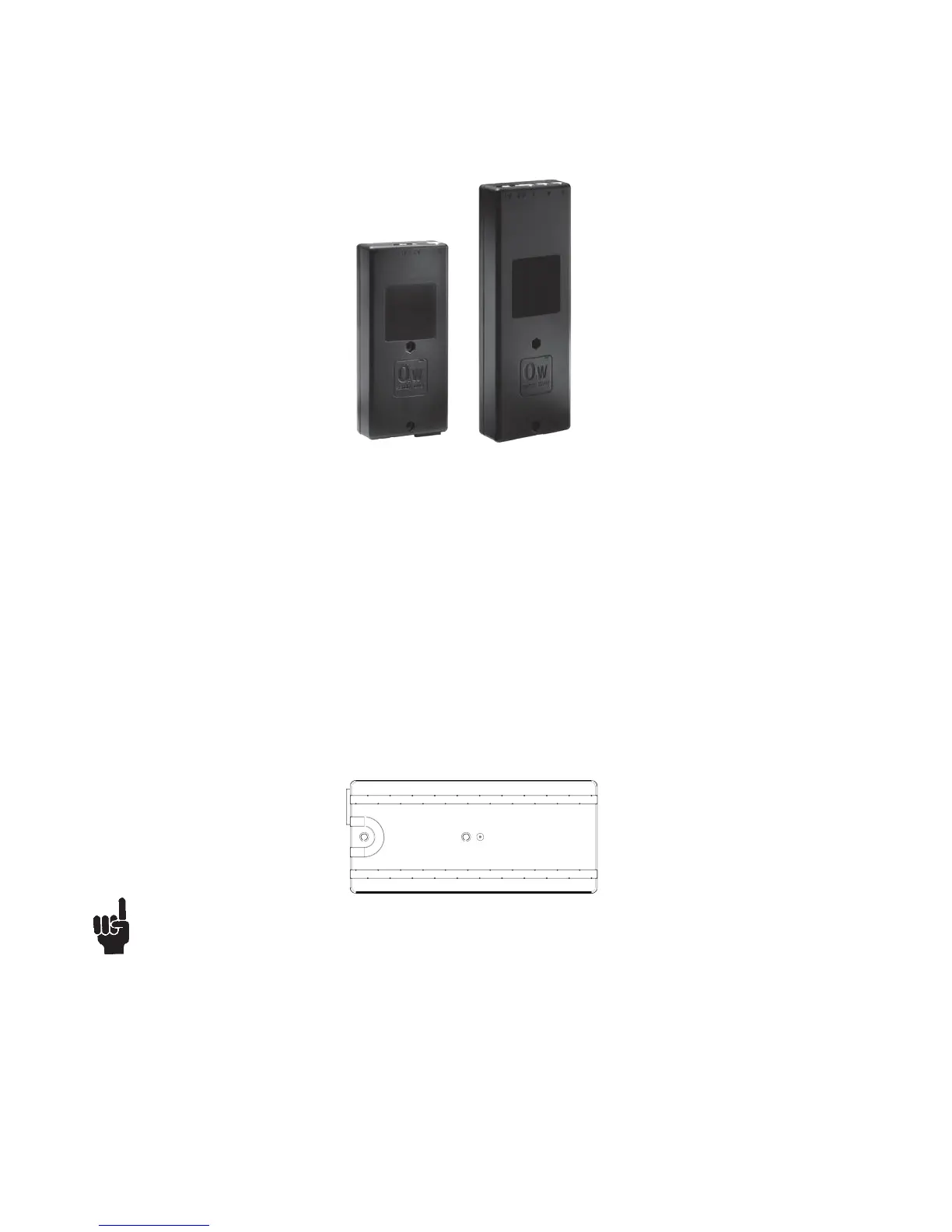

CBD6S 200W and CBD6S 300W
The CBD must not be packed in heat insulating material, but must be placed so that it can emit waste heat
into the surroundings. There are no ventilation holes to consider, the CBD emits heat through the surface.
The plug must be visible when the CBD is mounted so that the supply to the CBD can be disconnected at
replacement, if any.
The mounting screws on the control box must be fastened with a max. torque of 1 Nm.
The mounting surface to which the control box is attached should have a surface evenness of better than ±
0.5 mm.
Bottom with cable grooves
The bottom of CBD6S (SMPS) is equipped with two cable grooves improving the cable management when
mounting. The grooves can be used to bypass the CBD for both motorcables and the mains cable (EU version
only) from one side to the other, giving a cleaner design.
Remember to lead the cables through the grooves before mounting the control box.
For mounting and operation of the desk panel, please see the separate user manual for desk panels.
