Bending moment
Spindle top
Y+
X-
X+
Y-

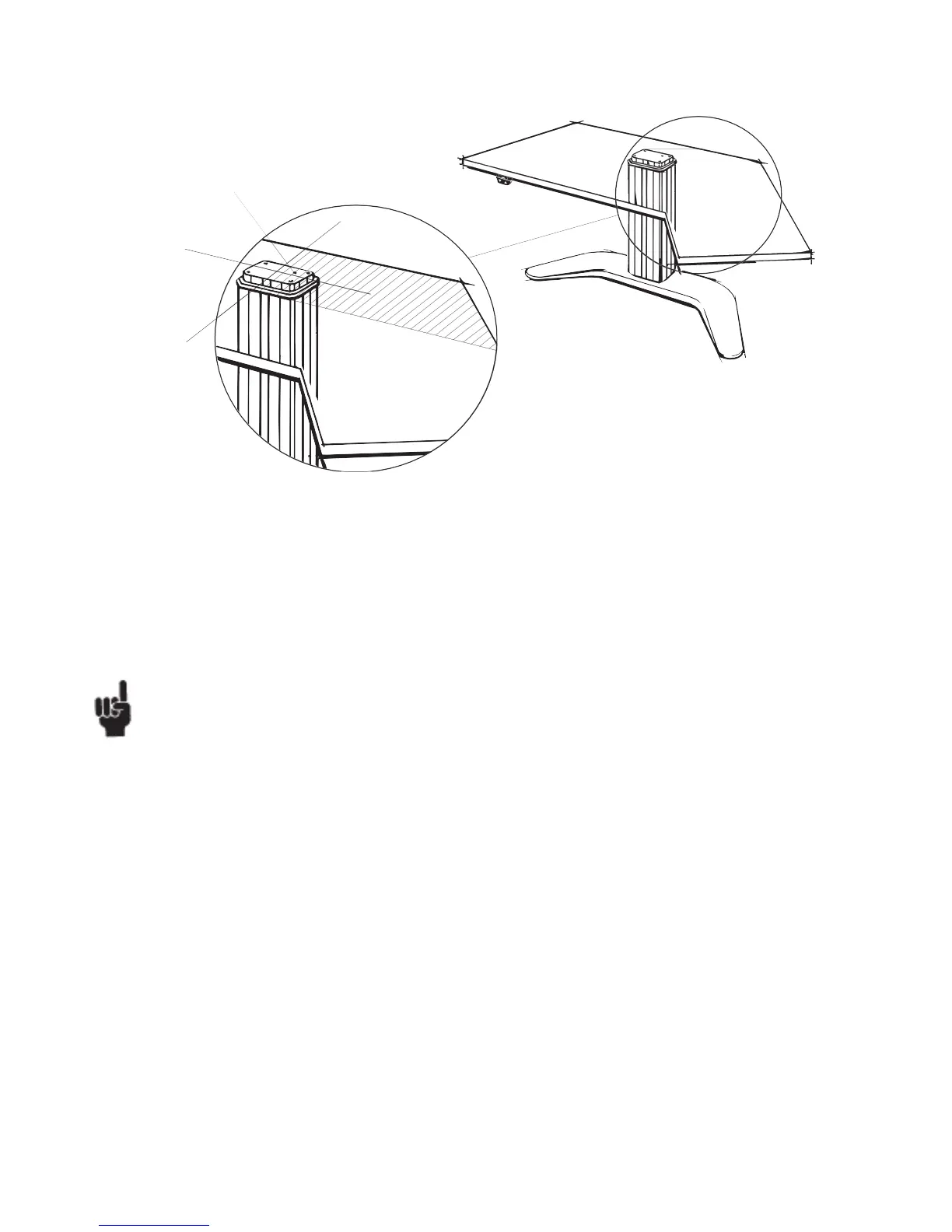

Figure 2
To limit the influence from the bending moment it is recommended to place the heaviest load in the shaded
area (see figure 2) in which the spindle is placed. The spindle part is placed in the same side as the cable
outlet.
See the DL2 data sheet for further information regarding bending moment.
LINAK recommends that the DESKLINE
®
system should be used in push applications.
