Electrical connection of the DL2 with control box

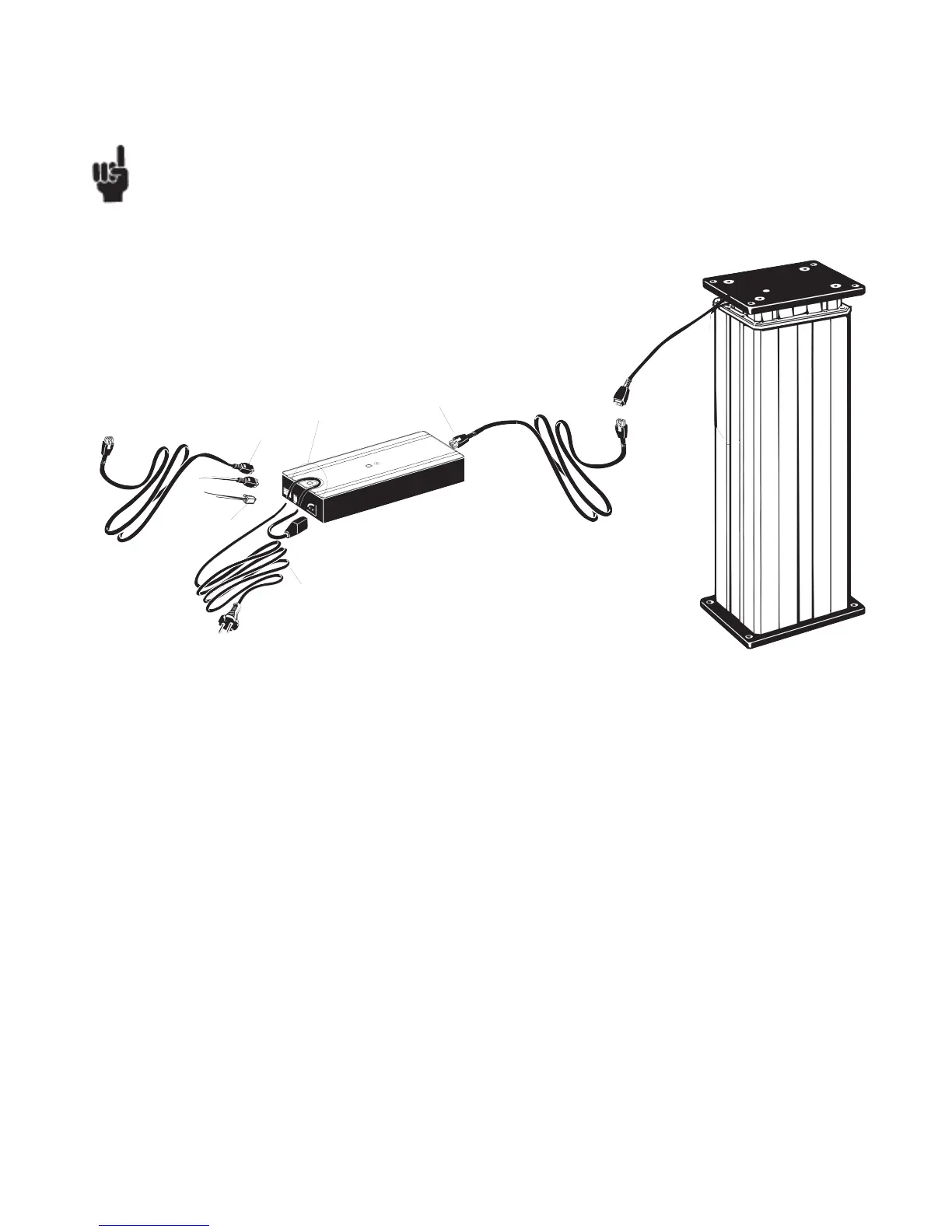

The systems is to be connected as shown on figure 3. Each DL2 is to be connected to the sockets on the
control box by means of the motor cables, which have a 6-pin plug in each end.
Finally the mains cable is to be mounted and power switched on. Please note that the control box
must only be connected to the voltage stated on the label.
DL
Hook for cable relief
DL
DP
Mains cable
Figure 3
