Lincoln FLEXTEC 450 - Connecting Ln-25 Pro and Ln-25 Pipe to the Flextec 450; Connecting Ln-25 Pro Dual Power to the Flextec 450

A-11
INSTALLATION
FLEXTEC™ 450
A-11

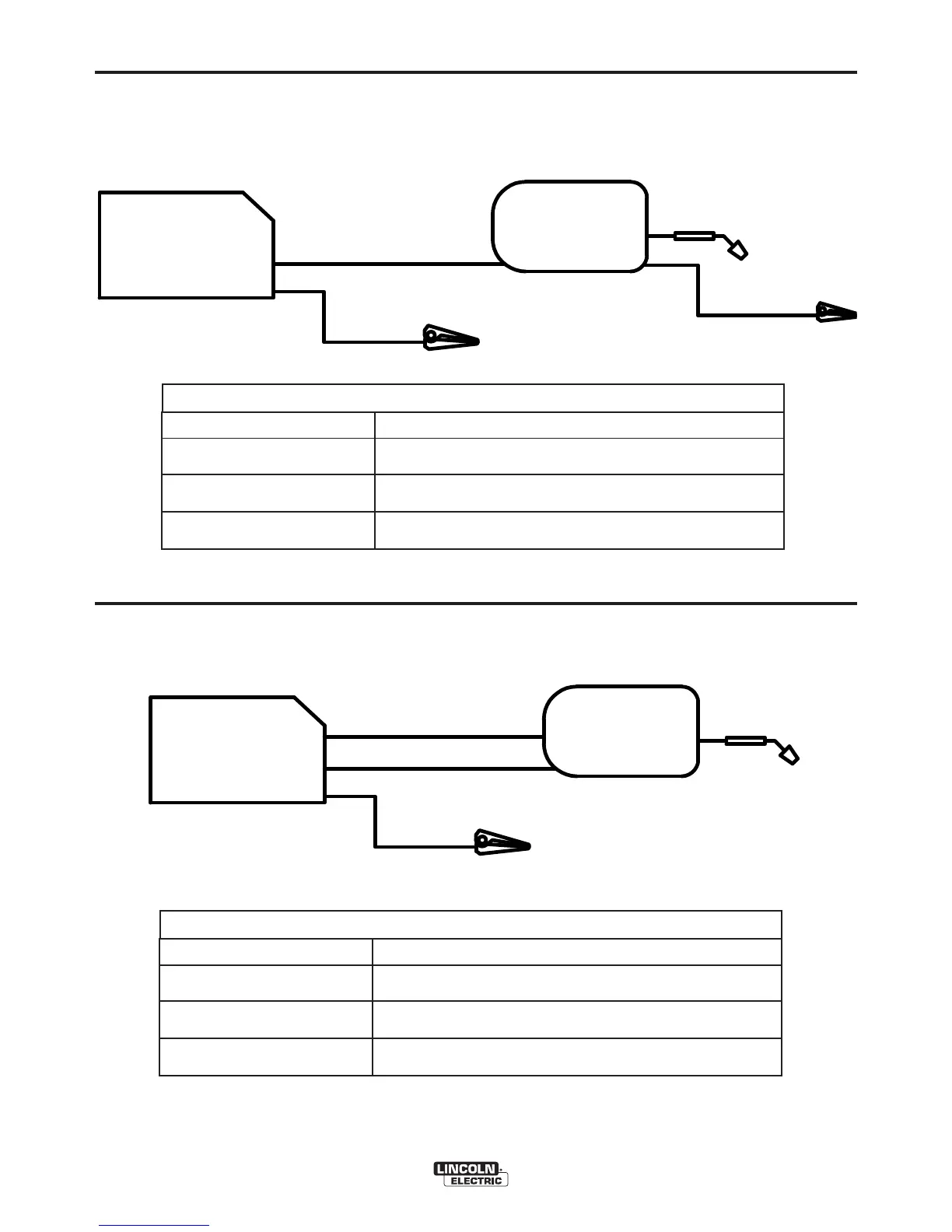

CONNECTING LN-25 PRO AND LN-25 PIPE TO THE FLEXTEC™ 450
ELECTRODE
FLEXTEC™-450
WIRE FEEDER
LN-25 PRO
LN-25 PIPE
WORK
WORK CLIP
ELECTRODE
FLEXTEC™-450
WIRE FEEDER
* LN-25 PRO
DUAL POWER
WORK
CONTROL CABLE K1797-XX
CONTROL SETTING
WELD MODE
WELD TERMINALS
REMOTE/LOCAL
VOLTMETER POLARITY
CV, CV-INNERSHIELD
OFF
LOCAL
PROCESS DEPENDENT
CONTROL SETTING
WELD MODE
WELD TERMINALS
REMOTE/LOCAL
VOLTMETER POLARITY
CV, CV-INNERSHIELD
OFF
REMOTE
PROCESS DEPENDENT
CONNECTING LN-25 PRO DUAL POWER TO THE FLEXTEC™ 450
*CONTROL CABLE SETUP SHOWN. REFER TO LN-25 PRO CONNECTION DIAGRAM IF SETTING UP
"ACROSS-THE-ARC" FEEDER.
