11.1.5 Image 3 B Protector
®
The Protector® is not a component of the bed. The Protector® is an optional accessory.
Mount the Protector in the closed position as follows:
 Put the tube of the Protector (2) into the housing near the foot of the bed (3), so that the Protector is facing
the side rail.
 The safety pin must be locked in place.
Mount the Protector in the open position as follows:
 Put the tube of the Protector (2) into the housing near the foot of the bed (3), so that the Protector is facing
out from bed.
 The safety pin must be locked in place.
Dismount the Protector as follows:
 Press and hold the release button (1).
 Push the Protector up.
WARNING!
Risk of injury due to patient falling out of bed!

Ensure the Protector® is securely anchored to the housing.

To check stability, push the Protector up without touching the release button.

Always check that the side rail is properly locked.
WARNING!
Risk of damage to the bed or patient injury!

Do not attach the bed end to accessory housing (3).

Do not use the Protector with bed extension.

The Protector® can be used with powder coated bed ends only.

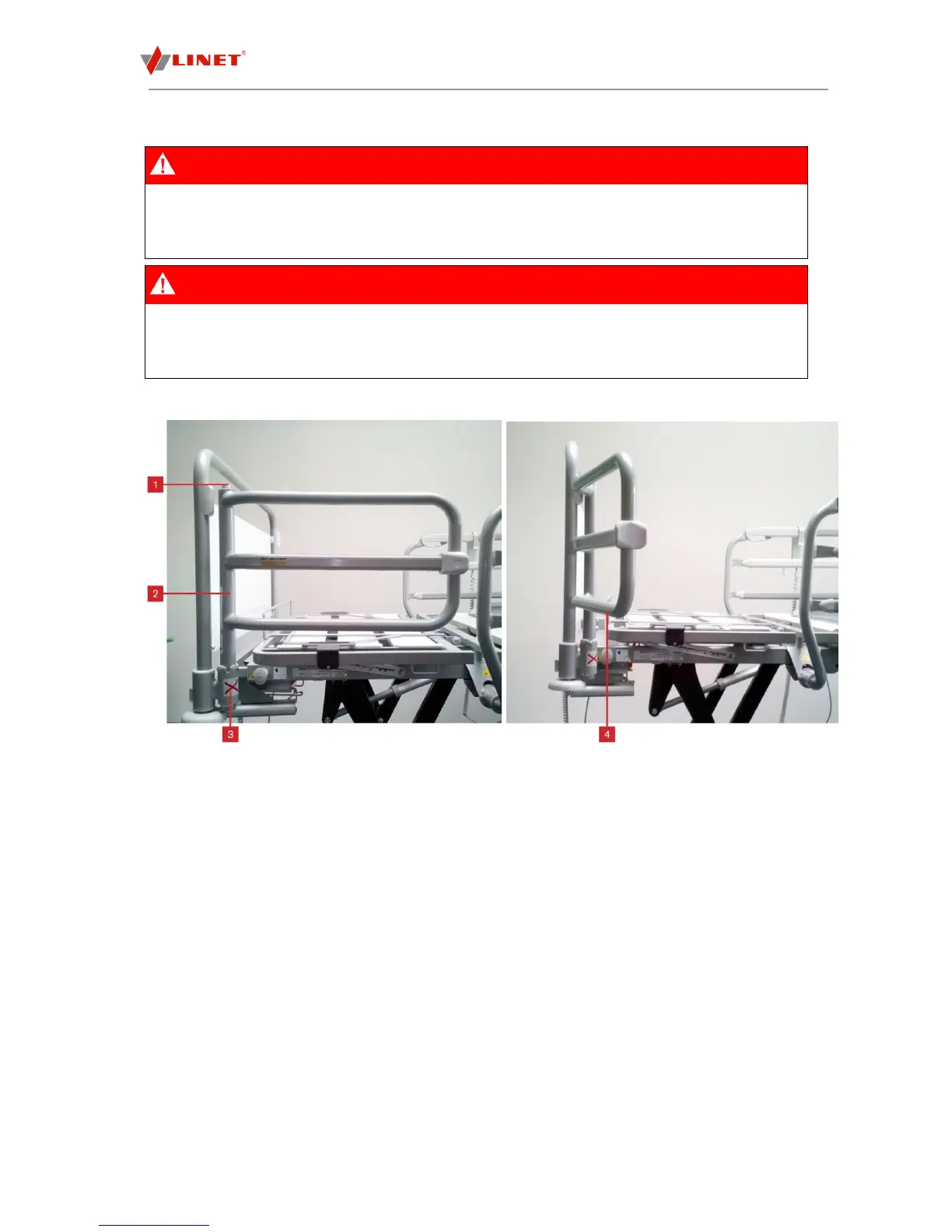

Fig. 21 Closed Protector®
Fig. 20 Opened Protector®
