3 Unit Description
3.1 L1403 HD Transmitter

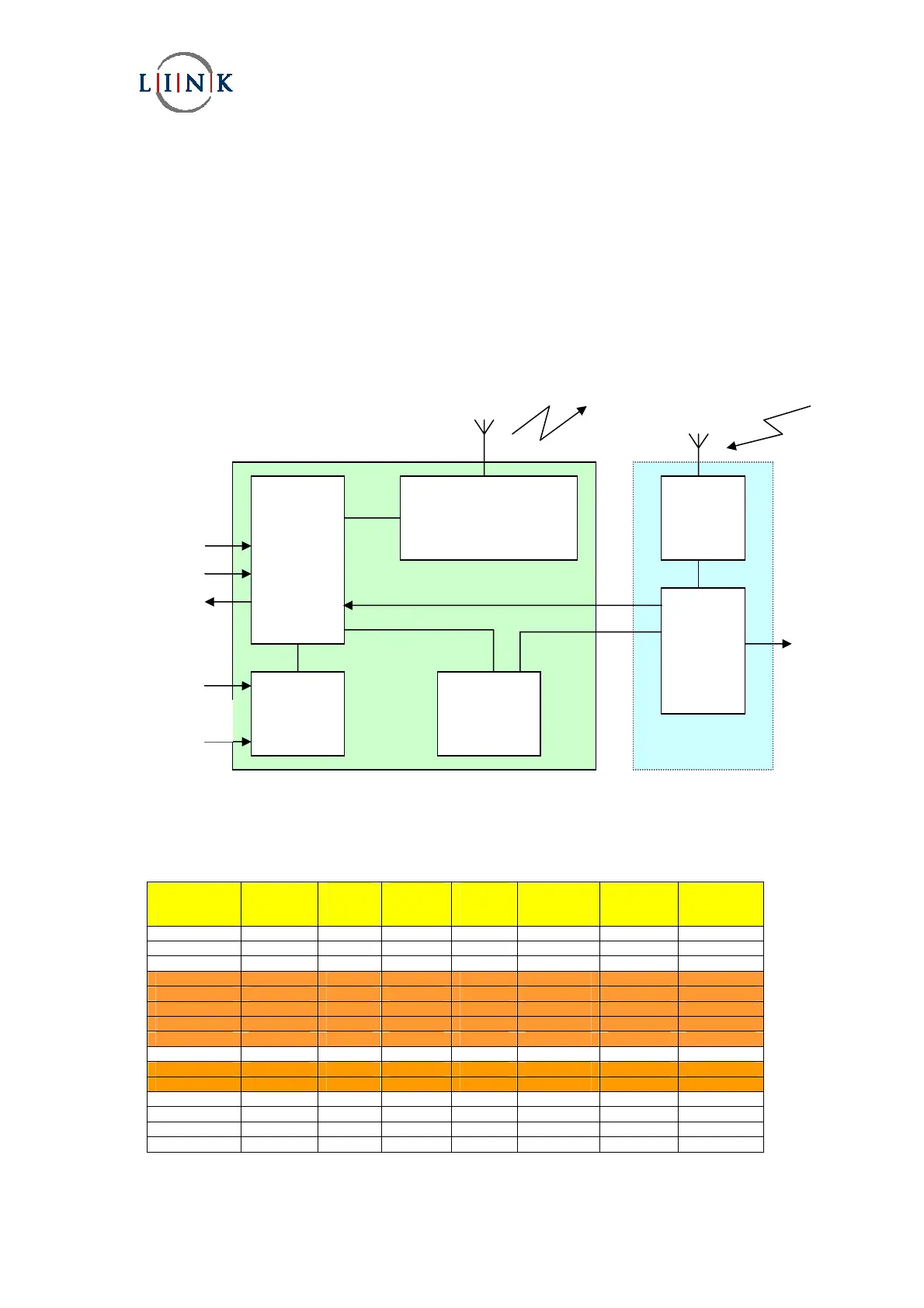

The camera transmitter unit contains four board printed circuit board assemblies in one housing and an optional unit
containing the camera controller board and UHF radio modem :-
• Encoder
• Audio
• IQ Up Converter
• Display Controller
• Camera Controller (optional)
3.1.1 Video Formats
The L1403 transmitter unit will accept HD-SDI feeds in any of the following formats :-
Standard
Total lines
per frame
Total
samples
per line
Active
lines per
frame
Active
samples
per line
Interlace or
Progressive
V freq H freq
1080I/60 1125 2200 1080 1920 I 60 Hz 33.75 KHz
1080I/59.9 1125 2200 1080 1920 I 60/1.001 33.716 KHz
1080I/50 1125 2640 1080 1920 I 50 Hz 28.125 KHz
1080P/30 1125 2200 1080 1920 P 30 Hz 33.75 KHz
1080P/29.9 1125 2200 1080 1920 P 30/1.001 33.716 KHz
1080P/25 1125 2640 1080 1920 P 25 Hz 28.125 KHz
1080P/24 1125 2750 1080 1920 P 24 Hz 27.0 KHz
1080P/23.9 1125 2750 1080 1920 P 24/1.001 26.973 KHz
1080P/24/sf 1125 2750 1080 1920 SF 48 Hz 27.0 KHz
1080P/23.9/sf 1125 2750 1080 1920 SF 48/1.001 26.973 KHz
720P/60 750 1650 720 1280 P 60 Hz 45 KHz
720P/59 750 1650 720 1280 P 60/1.001 44.955 KHz
720P/50 750 1980 720 1280 P 50 Hz 37.5 KHz
The formats highlighted in RED are not available with the current firmware. Please contact Link Research Ltd.
for details.
Encoder
Audio
IQ Up Conv. & Power Amp.
Front Panel
UHF
Radio
Modem
Camera
Controller
SDI
Analogue
Audio
Camera
Control
Data
ASI
Camera Return Data
