2 System Operation

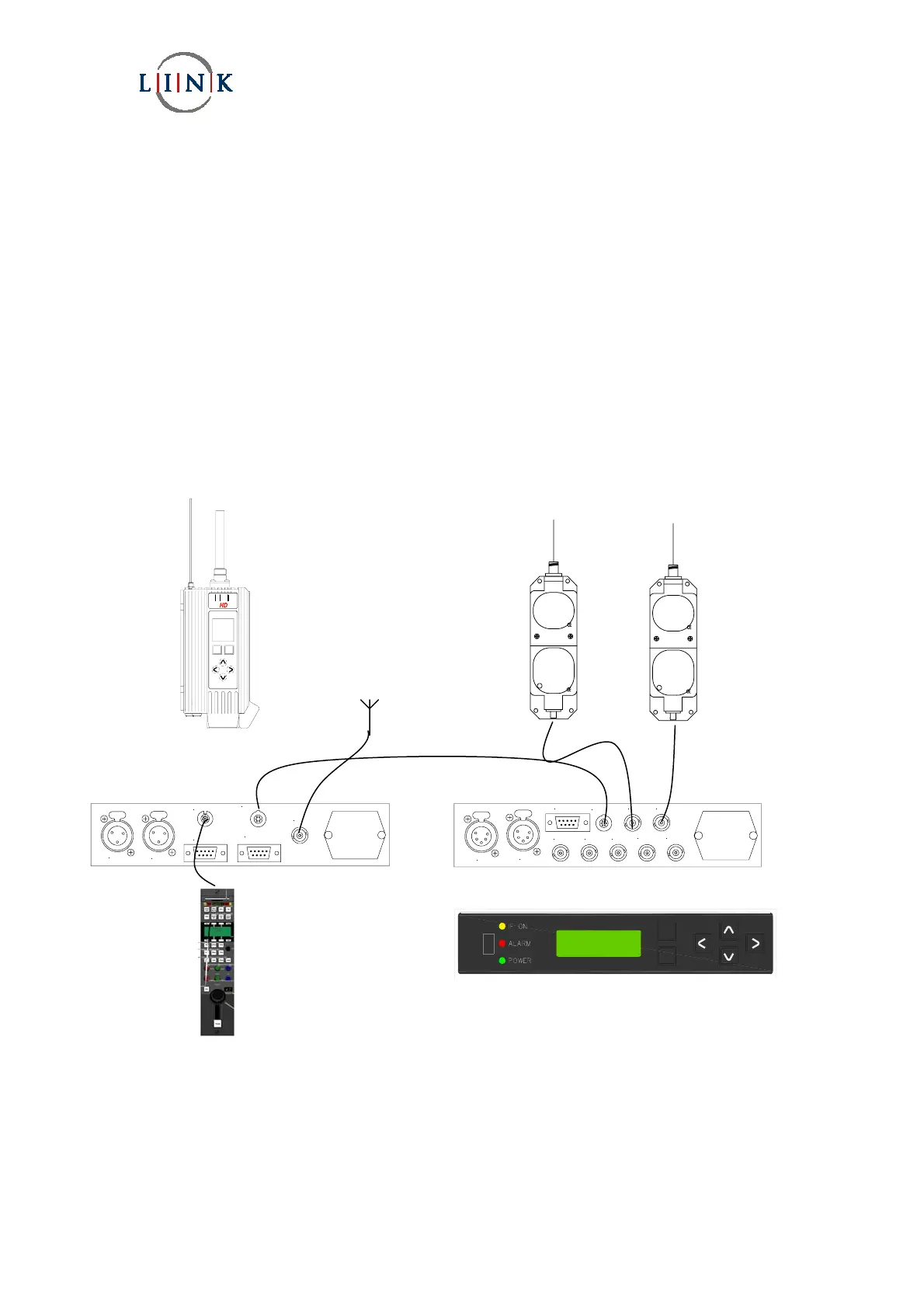

The Link HD wireless radio camera system comprises of three main components :-
Link HD Transmitter - L1403 (2GHz) or L1405 (3GHz)
Link RF Down Converter (2 off) - L3020 (2GHz) or L3050 (3GHz)
Link HD Receiver - L2132
Optional components for camera control :-
Link Wireless CCU Interface - L1255
Link HD Camera Controller - L1420
Camera manufacturers OCP - Grass Valley OCP400; Sony 700 Series, Ikegami HDK series
The basic system will include 3dBi Omni vertically polarized antenna for the transmitter and down converters; a range of
alternative antennas can be supplied to meet different operational requirements.
These will provide the basic operation of the Link HD system although other configurations are possible including diversity
operation; Triax interconnection etc.
Please contact Link Research Ltd for details.
