When replacing the filter unit, take care not to damage the mating coaxial connector: ensure it is fully upright before closing.
Also take care not to damage the weather proof seal on the down converter unit.
Lift straight up
Do not twist
Down convertor unit
Filter unit
Lift the filter unit straight up from the down converter body.

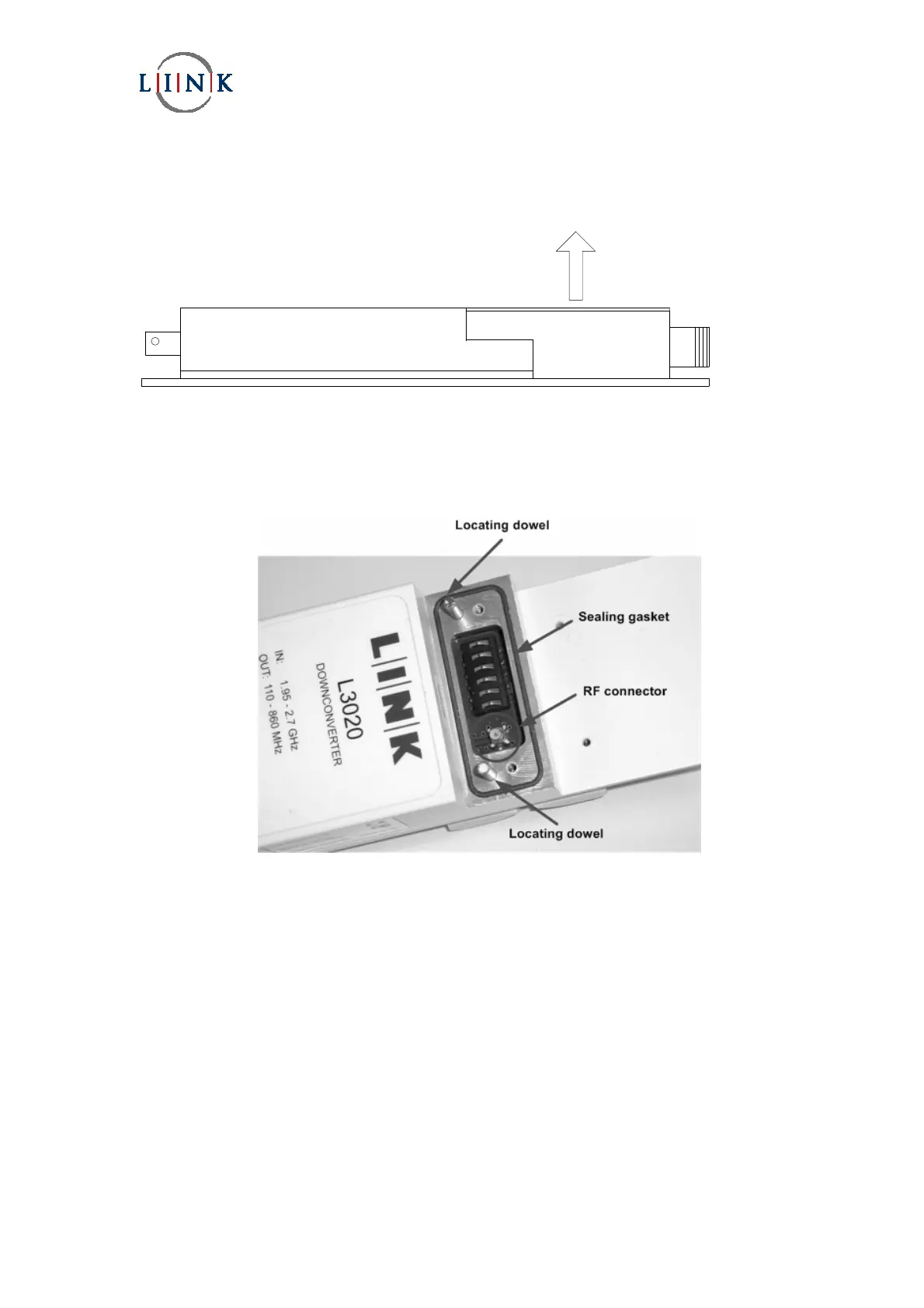

View of the L3020 unit with the filter block removed.
