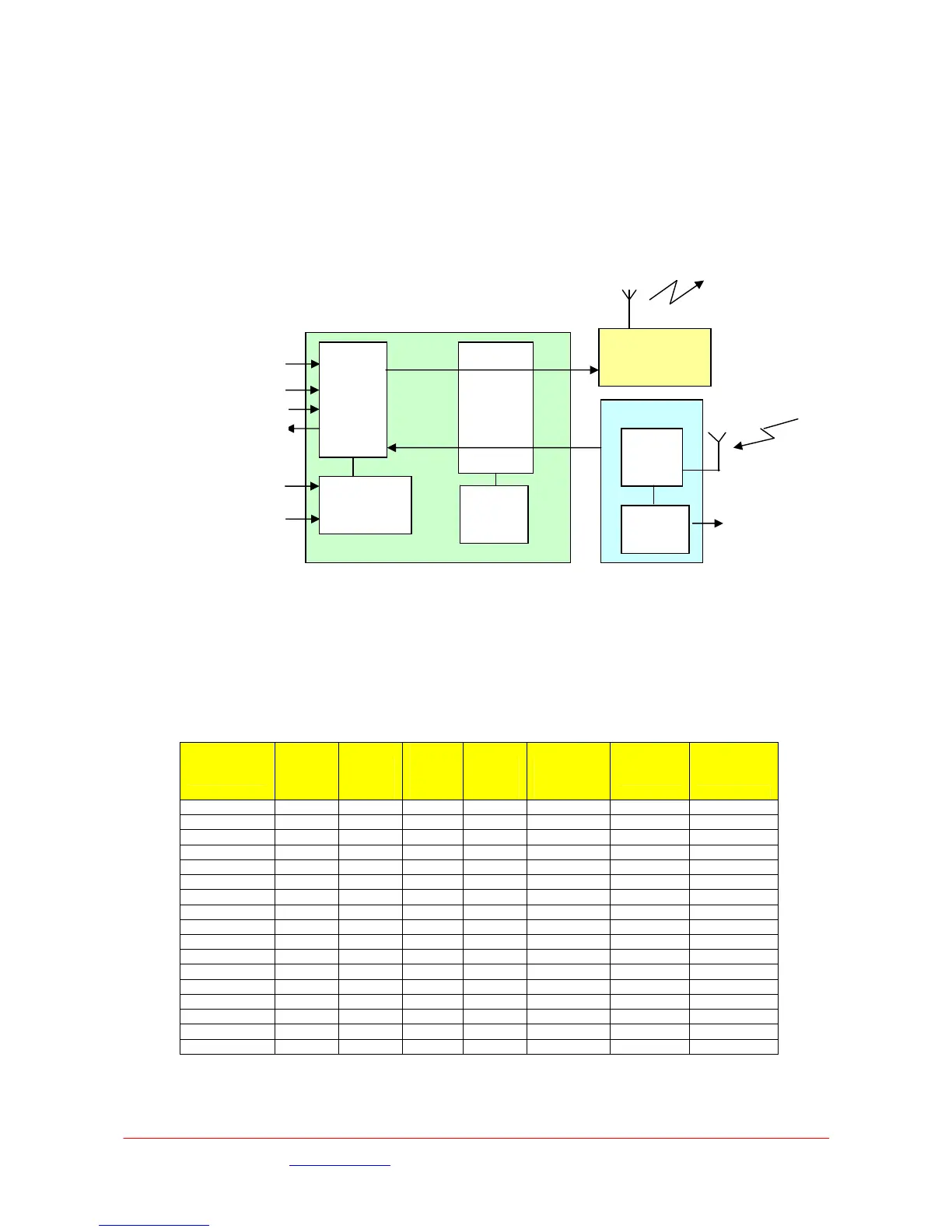

3.3 L1500 HD Transmitter Description and Specification
The complete transmitter unit contains three main assemblies which can provide a flexible and
upgradeable transmitter system:-
• Main unit, contains encoder, audio pre-amps, display and controller
• Modular RF Up Converter, available in various frequency bands
Encoder
Line
Audio
Mic
IQ Up Conv. &
Power Amp.
Front Panel
UHF
Radio
Modem
Camera
Controller
SDI
Analogue
Audio
Camera
Control
Data
ASI in
ASI
Option
Display &
Keypad
SD
Analo
g
ue
IQ
Ret. Data
• Camera Controller (optional) or a ‘dummy’ unit must be fitted
3.3.1 Video Formats
The L1500 transmitter unit will accept HD-SDI inputs in any of the following HD formats :-
Standard
Total
lines
per
frame
Total
samples
per line
Active
lines
per
frame
Active
samples
per line
Interlace
or
Progressive V freq H freq
1080I/60 1125 2200 1080 1920 I 60 Hz 33.75 KHz
1080I/59.9 1125 2200 1080 1920 I 60/1.001 33.716 KHz
1080I/50 1125 2640 1080 1920 I 50 Hz 28.125 KHz
1080P/30 1125 2200 1080 1920 P 30 Hz 33.75 KHz
1080P/29.9 1125 2200 1080 1920 P 30/1.001 33.716 KHz
1080P/25 1125 2640 1080 1920 P 25 Hz 28.125 KHz
1080P/24 1125 2750 1080 1920 P 24 Hz 27.0 KHz
1080P/23.9 1125 2750 1080 1920 P 24/1.001 26.973 KHz
1080Psf/60 1125 2200 1080 1920 P 60 Hz 33.75 KHz
1080Psf/50 1125 2640 1080 1920 P 50 Hz 28.125 KHz
1080Psf/24 1125 2750 1080 1920 SF 48 Hz 27.0 KHz
1080Psf/23.9 1125 2750 1080 1920 SF 48/1.001 26.973 KHz
720P/60 750 1650 720 1280 P 60 Hz 45 KHz
720P/59 750 1650 720 1280 P 60/1.001 44.955 KHz
720P/50 750 1980 720 1280 P 50 Hz 37.5 KHz
