Link L1500 Series User Manual

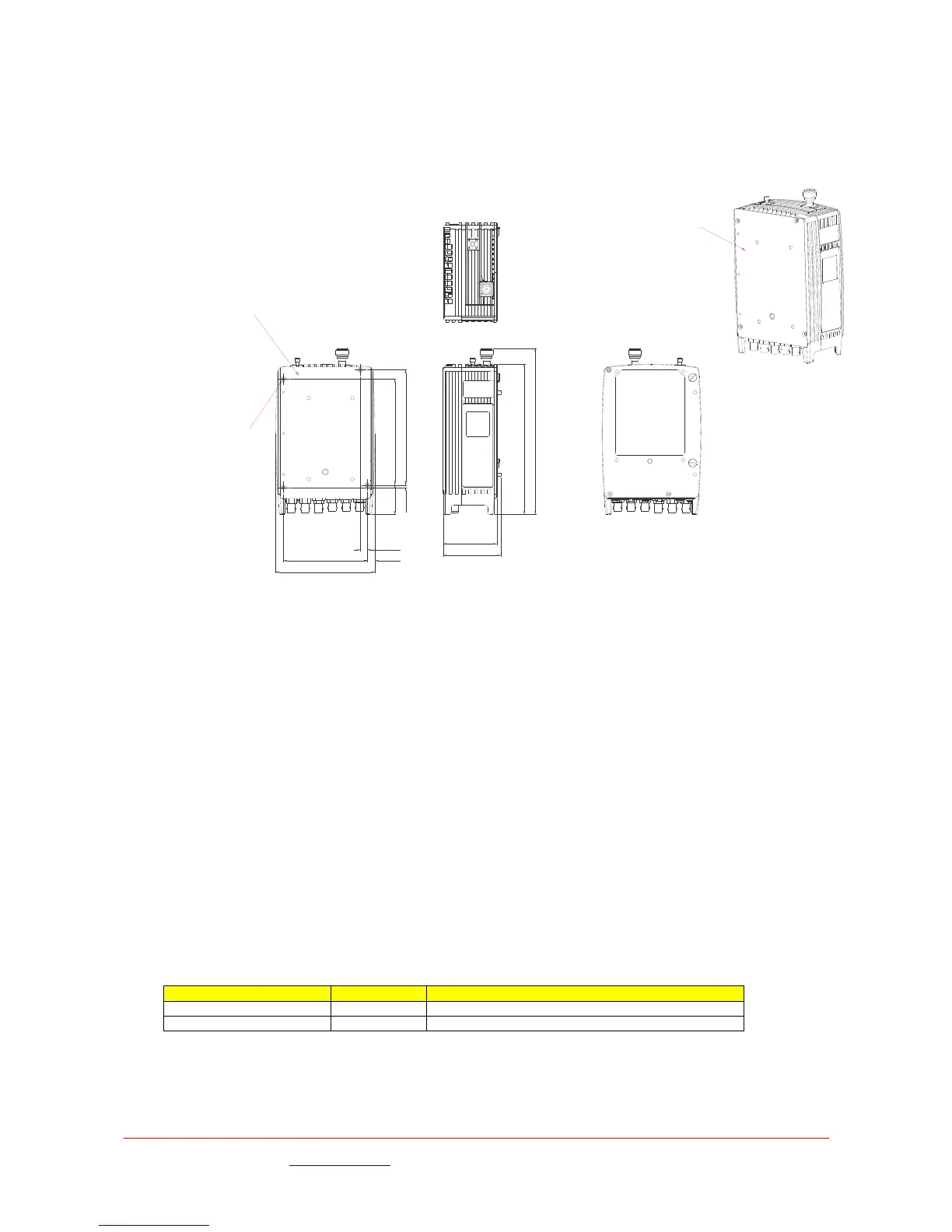

3.5 Mechanical
FROM SURFACE)
DEPTH 8.0mm
(MAX THREAD
4-M3 HOLES
LOOSE PIECE
LOOSE PIECE
3.00
8.75
140.25
202.41
70.45
129.00
35.70
9.25102.50
121.00
65.45
183.20
Unit shown with no battery mount or camera interface mounts fitted.
4 L1520 Camera Controller / Data Receiver – Optional
All configuration of the camera controller is via the main L1500 LCD display and operators menu. :-
Setup/Camera Control/Cam Type.
The only functions that require to be configured are :-
Camera Type- Thomson (LDK6000)
Sony (HDC1500)
Ikegami
Frequency- Dependent upon the configuration of the UHF radio, please contact Support for
details.
The following leads are supplied for connection between the camera controller (CC Data connector)
and camera head.
Thompson- LDK6000 L0016
Sony L0017
Connector type Legend Description
4 way LEMO Tally Connection to external Tally light – future design
6pin LEMO CC Data Serial control data to camera head.
Images are for illustration only and may differ from components supplied
Link Research Ltd www.linkres.co.uk Support UK/Europe + (44) 1923 474099 USA +(1)9786715700
Page 14 of 31 CL140045 Issue C Link L1500 Series System Manual
