2 System Description
The Link L1500 HD wireless radio camera system comprises of three main components :-
Link HD Transmitter - L1500+L1510* Upconvertor
Link RF Down Converter (2 off) - L3070 (2/7GHz) or L3050 (3GHz)
Link HD Receiver - L2132/4
*Note- In this manual L1510 is used to denote any of the optional RF / UpConverter modules.
Optional components for camera control :-
Link Wireless CCU Interface - L1255
Link HD Camera Controller - L1520
For Camera manufacturers OCP, Grass Valley OCP400; Sony 700 Series, and Link Generic (Ikegami
HDK future)
The basic system will include 3dBi Omni vertically polarized antenna for the transmitter and down
converters; a range of alternative antennas can be supplied to meet different operational
requirements.
These will provide the basic operation of the Link HD system although other configurations are
possible including diversity operation, through Triax and fibre etc.
Please contact Link Research Ltd for details.
For basic operation, connections to the L1500 HD Transmitter unit are HD/SD video, analogue audio
and if required an RS232 data link. Power is supplied either via the attached battery plate or external
LEMO connector.
The power switch on the side of the L1500 is provided to switch the L1500 / L1520. This switch
cannot be used to control the supply to the forward camera interface plate which is always fed power
from the battery or external Lemo connector.

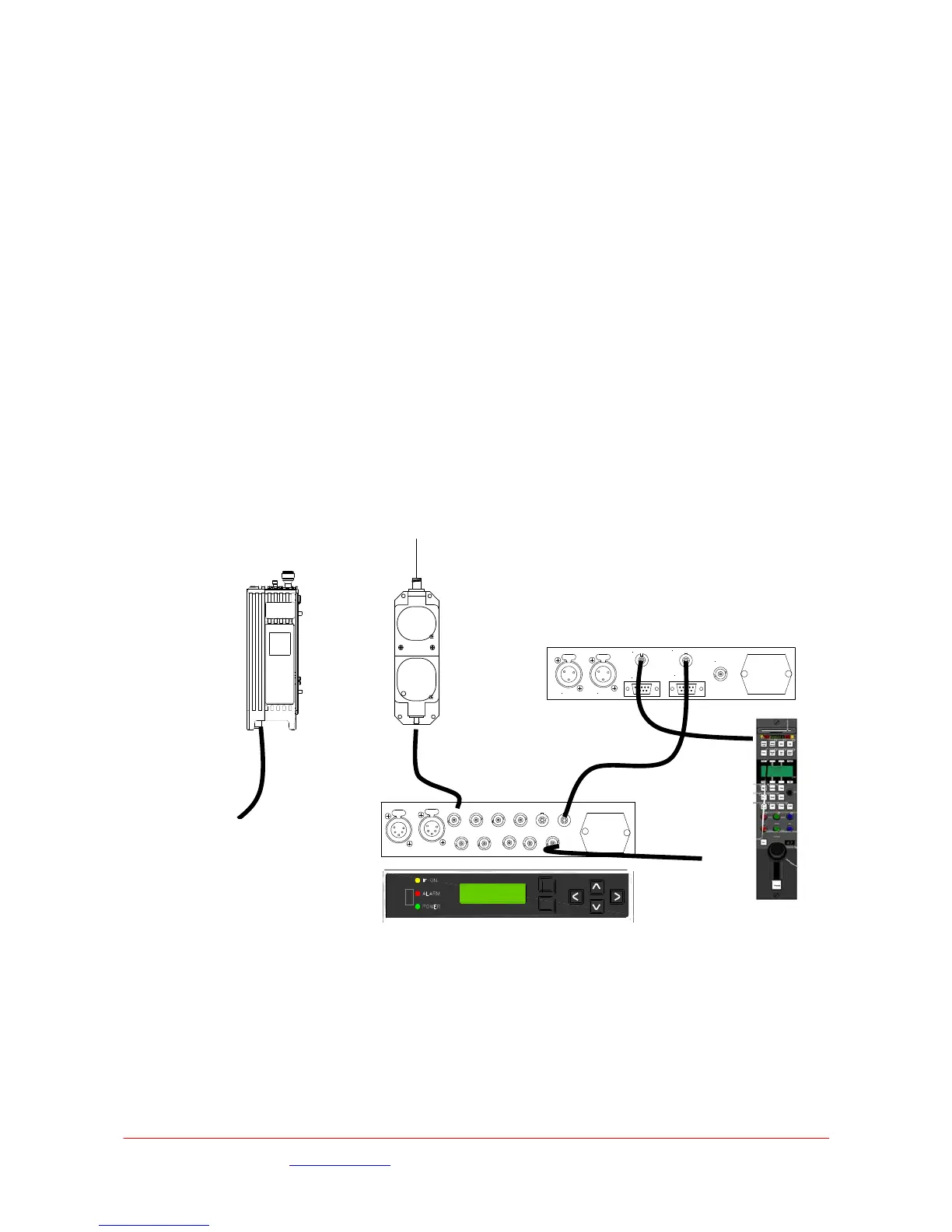

Max 4, Min 2
L30**
Downconverters
To Next Page
