Images are for illustration only and may differ from components supplied
Link Research Ltd www.linkres.co.uk Support UK/Europe + (44) 1923 474099 USA +(1)9786715700
Page 4 of 31 CL140045 Issue C Link L1500 Series System Manual
The L1500 can be supplied with various interface plates providing mounting of different batteries and
to different camera mounts - either IDX / Sony ‘V’ , PAG Loc or Anton Bauer Gold Mount are available.
Adaptor brackets are also available to allow mounting of the L1500 to the rear of Thompson LDK6000
series of cameras and the Sony 1500 series. These interface plates provide a ‘quick release’ to
remove the transmitter from the camera
A full list of accessories and cables is given at the end of this document
3 L1500 Series Encoder/Transmitter
The L1500 Series Encoder/Transmitter is a compact HD/SD MPEG2 Encoder, DVB-T and LMS-T
modulator and 100mW output power amplifier (250mW FCC only). LMS-T is a unique robust
modulation scheme developed specifically for wireless camera use.
3.1
Operation
The L1500 is configured by the operator using the menu structure displayed on the colour LCD
display, 9 membrane push buttons are used to navigate through these menus and select the required
data. Please see 3.1.2 below for details of the L1500 menu structure.

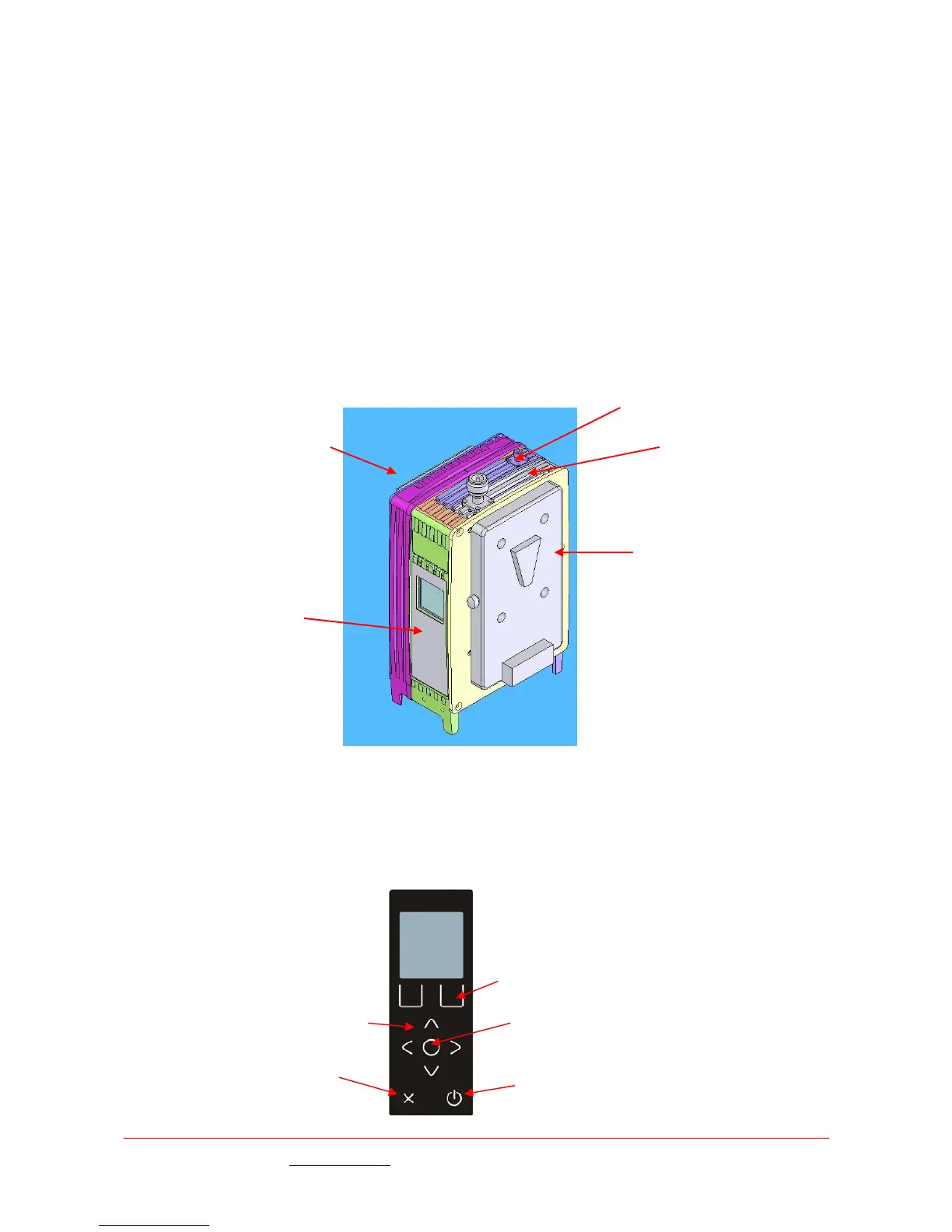

Control
Camera Control Module
– L1520
RF Module /Up Converter
Module – L1510
Camera Interface
Battery
Interface
Panel
Function ke
y
s
action de
p
ends u
p
on
p
osition within menu
‘Enter’
‘Power’
U
p
/ Down / Left /Ri
g
ht
‘Cancel’ / ‘Exit’
