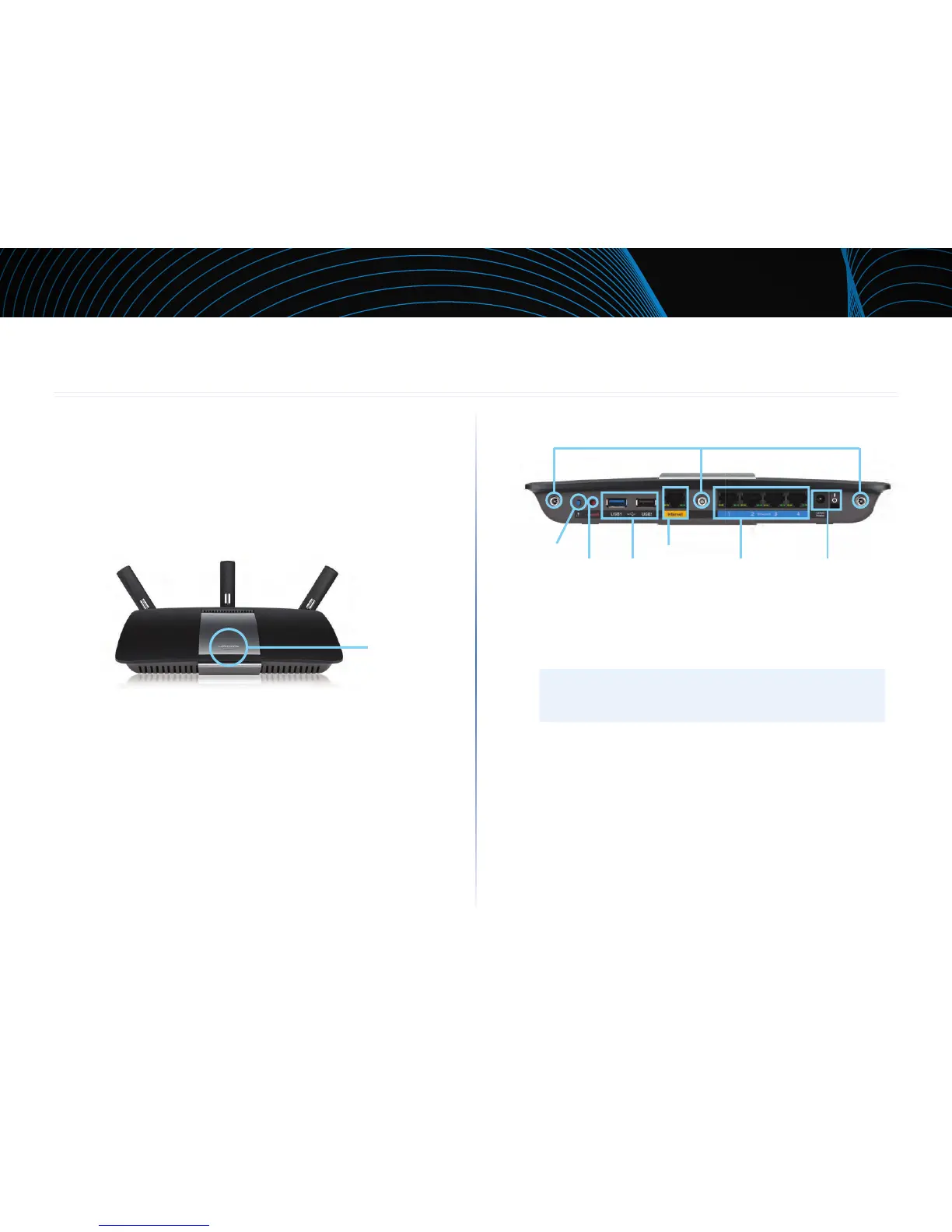

Product Overview
Linksys EA-Series
EA6900
Top view
Indicator light
• Indicator light—Stays on steadily while power is connected and
following a successful Wi-Fi Protected Setup connection. Flashes or
pulses slowly during bootup, during firmware upgrades, and during a
WiFi Protected Setup connection. Flashes quickly when there is a WiFi
Protected Setup error.
Back view
Ethernet ports
Wi-Fi Protected
Setup button
Internet port
Power port
Reset button
USB port(s)
• Adjustable Antenna ports— The included 3 adjustable external
antennas should be connected to the router before powering it on. Twist
the antenna connector clockwise onto the port on the router.
NOTE
For best performance, position the side antennas at a 30˚ angle as
shown in the picture on the left.
• Wi-Fi Protected Setup™ button—Press to easily configure wireless
security on Wi-Fi Protected Setup-enabled network devices.
• USB ports—Connect and share a USB drive or a USB printer
• Ethernet ports—Connect Ethernet cables to the blue gigabit
(10/100/1000) ports and to wired Ethernet network devices.
Product Overview
Adjustable Antenna ports
