Linksys LAPAC1750 User Manual

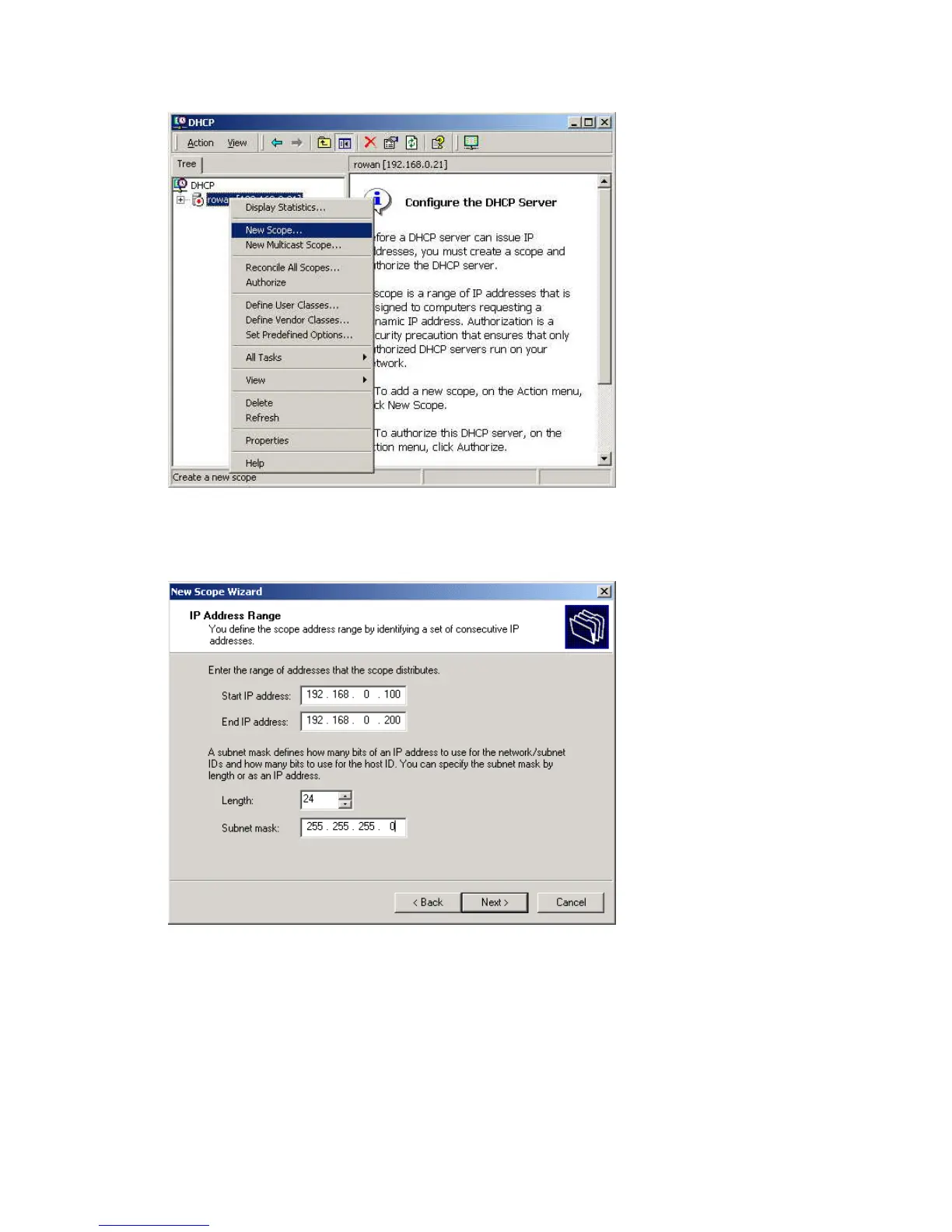

3. Click Next when the New Scope Wizard Begins.
4. Enter the name and description for the scope, click Next.
5. Define the IP address range. Change the subnet mask if necessary. Click Next.
6. Add exclusions in the address fields if required. If no exclusions are required, leave it
blank. Click Next.
7. Change the Lease Duration time if preferred. Click Next.
8. Select Yes, I want to configure these options now, and click Next.
9. Enter the router address for the current subnet. The router address may be left blank if
there is no router. Click Next.
109

Linksys LAPAC1750 Specifications

General

Modulation	-
Frequency band	2.412 - 2.462, 5.18 - 5.24, 5.745 - 5.825 GHz
Channels quantity	11 channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3u
Wi-Fi data rate (max)	500 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Quality of Service (QoS) support	Yes
Internal	No
Placement	Ceiling, Wall
Certification	FCC, CE, IC
Product color	White
Cable lock slot type	Kensington
Supported network protocols	IPv6
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	802.1x RADIUS, WDS, WEP, WPA, WPA2
Number of SSID supported	16
Antenna features	Integrated antenna
Input current	1.5 A
AC input voltage	12 V
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	243.08 mm
Width	236.98 mm
Height	43.69 mm
