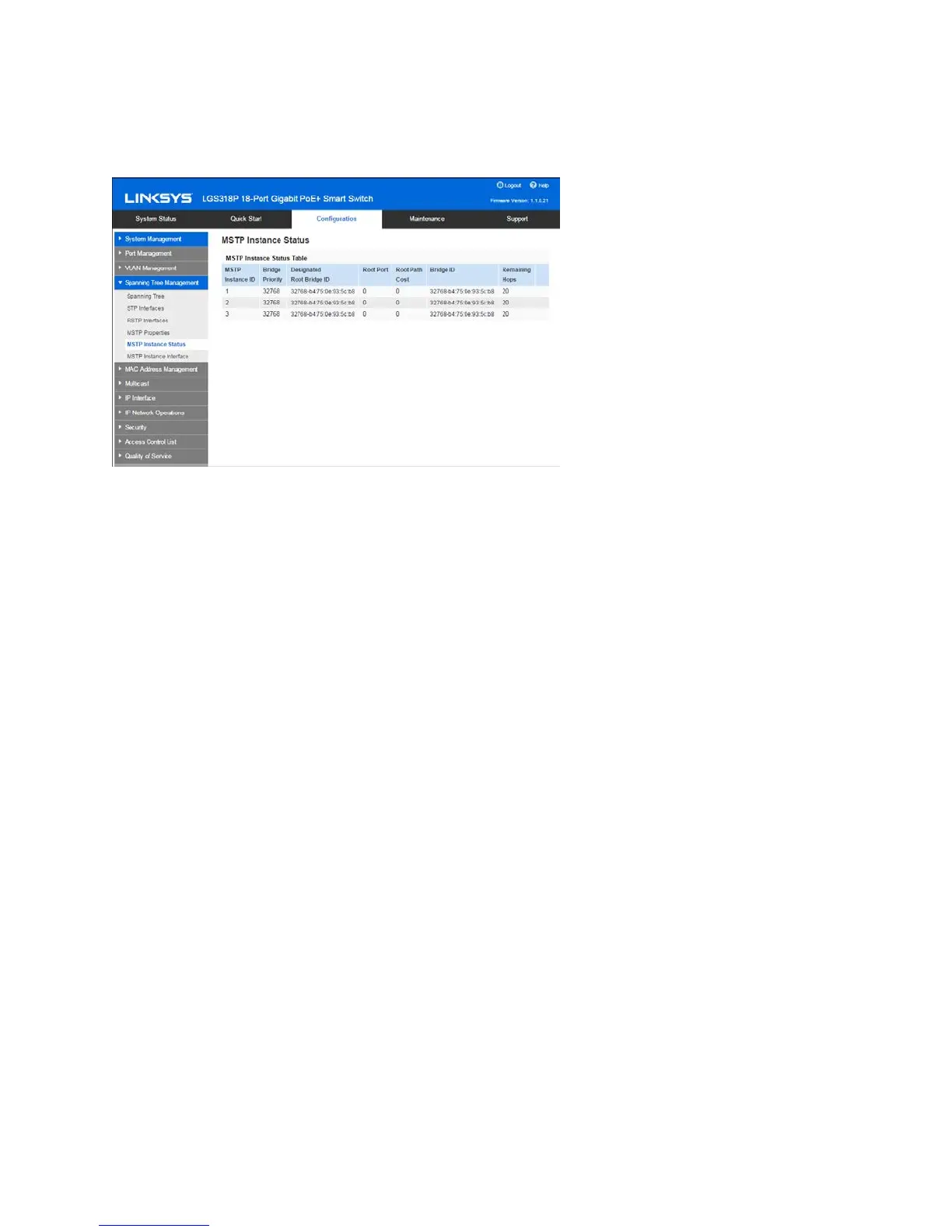

MSTP Instance Status
The MSTP Instance Status page displays parameters of MST instances. This is the per-instance
equivalent to the Spanning Tree page.
To view MSTP instance settings:
Click Configuration > Spanning Tree Management > MSTP Instance Status.
•
Instance ID—Select an MST instance to be displayed and defined.
•
Bridge Priority—Set the priority of this bridge for the selected MST instance.
•
Designated Root Bridge ID—Displays the priority and MAC address of the Root Bridge for
the MST instance.
•
Root Port—Displays the root port of the selected instance.
•
Root Path Cost—Displays the root path cost of the selected instance.
•
Bridge ID—Displays the bridge priority and the MAC address of this device for the
selected instance.
•
Remaining Hops—Displays the number of hops remaining to the next destination.
