QoS Statistics
Queues Statistics
The Queues Statistics page displays queue statistics, including statistics of forwarded and
dropped packets, based on interface, queue, and drop precedence.
To view Queues Statistics:

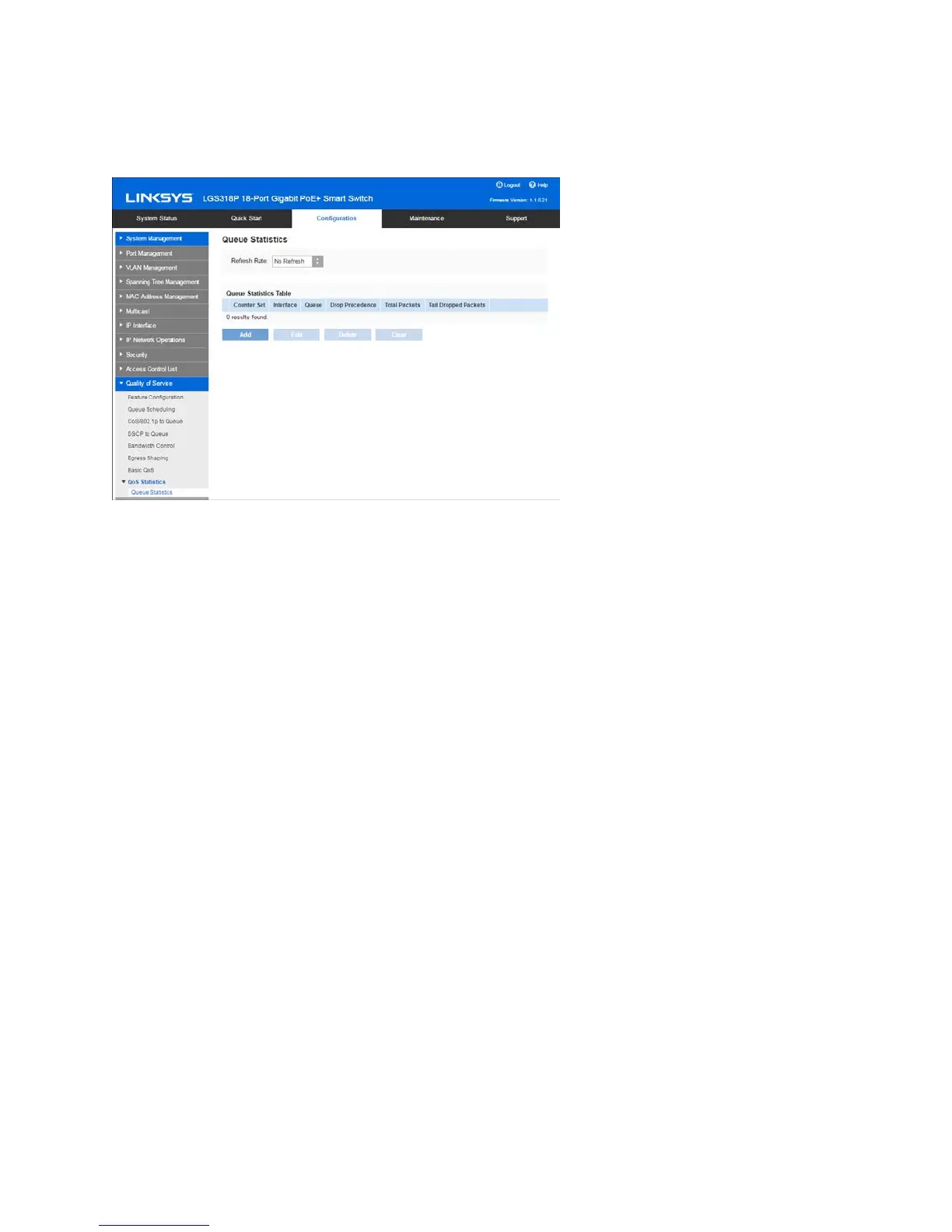

1. Click Configuration > Quality of Service > QoS Statistics > Queues Statistics.
This page displays the following fields:
•
Refresh Rate—Select the time period that passes before the interface Ethernet
statistics are refreshed.
The available options:
o
No Refresh—Statistics are not refreshed.
o
15 Sec—Statistics are refreshed every 15 seconds.
o
30 Sec—Statistics are refreshed every 30 seconds.
o
60 Sec—Statistics are refreshed every 60 seconds.
•
Counter Set
The available options:
o
Set 1—Displays the statistics for Set 1 that contains all interfaces and
queues with a high DP (Drop Precedence).
o
Set 2—Displays the statistics for Set 2 that contains all interfaces and
queues with a low DP.
•
Interface—Queue statistics are displayed for this interface.
