Linksys WRT54GS User Manual

15
Chapter 5: Setting up the Wireless-G Broadband Router
Using the Setup Wizard
Wireless-G Broadband Router with SpeedBooster
6. The Setup Wizard will ask you to connect your broadband modem to the Router. After you have done so, click
the Next button.
7. The Setup Wizard will ask you to connect a network cable to your PC. After you have done so, click the Next
button.

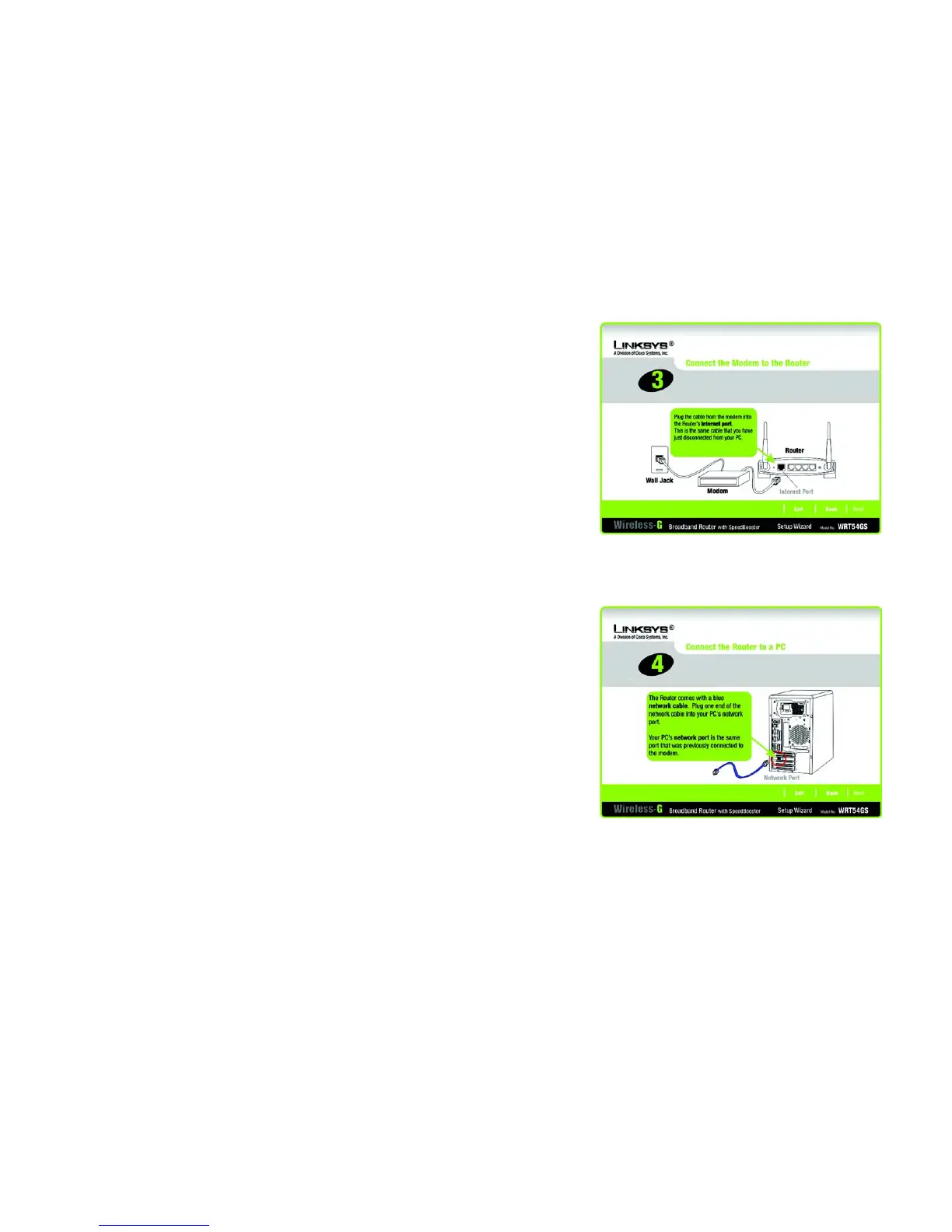

Figure 5-5: Setup Wizard’s Connect the Modem to the
Router Screen
Figure 5-6: Setup Wizard’s Connect a Network Cable to a
PC Screen

Linksys WRT54GS Specifications

Power

power supply	External, 12V DC, 0.5A
RF power output	18 dBm

Operating Environment

operating temperature	32ºF to 104ºF (0ºC to 40ºC)
storage temperature	-4ºF to 158ºF (-20ºC to 70ºC)
operating humidity	10~85% Non-condensing
storage humidity	5~90% Non-condensing

Weight and Dimensions

dimensions	7.32” x 1.89” x 6.06” (186 mm x 48 mm x 154 mm)
weight	13.58 oz (385 g)
