Linksys WRT54GS User Manual

20
Chapter 5: Setting up the Wireless-G Broadband Router
Using the Setup Wizard
Wireless-G Broadband Router with SpeedBooster
L2TP
Connection - If you are using an L2TP (Layer 2 Tunneling Protocol) connection, select L2TP from the drop-
down menu.
User Name - Enter the User Name provided by your ISP.
Password - Enter the Password provided by your ISP.
Confirm - To confirm the Password, enter it again in this field.
L2TP Server - Enter the IP address of the L2TP server you are using; this should be provided by your ISP.
Keep Alive - If you want the Router to periodically check your Internet connection, select Keep Alive. Then
specify how often you want the Router to check the Internet connection. If the connection is down, the Router
will automatically re-establish your connection.
Connect on Demand - If you want the Router to end the Internet connection after it has been inactive for a
period of time, select Connect on Demand and designate the number of minutes you want that period of
inactivity to last.
Click the Next button to continue or the Back button to return to the previous screen.

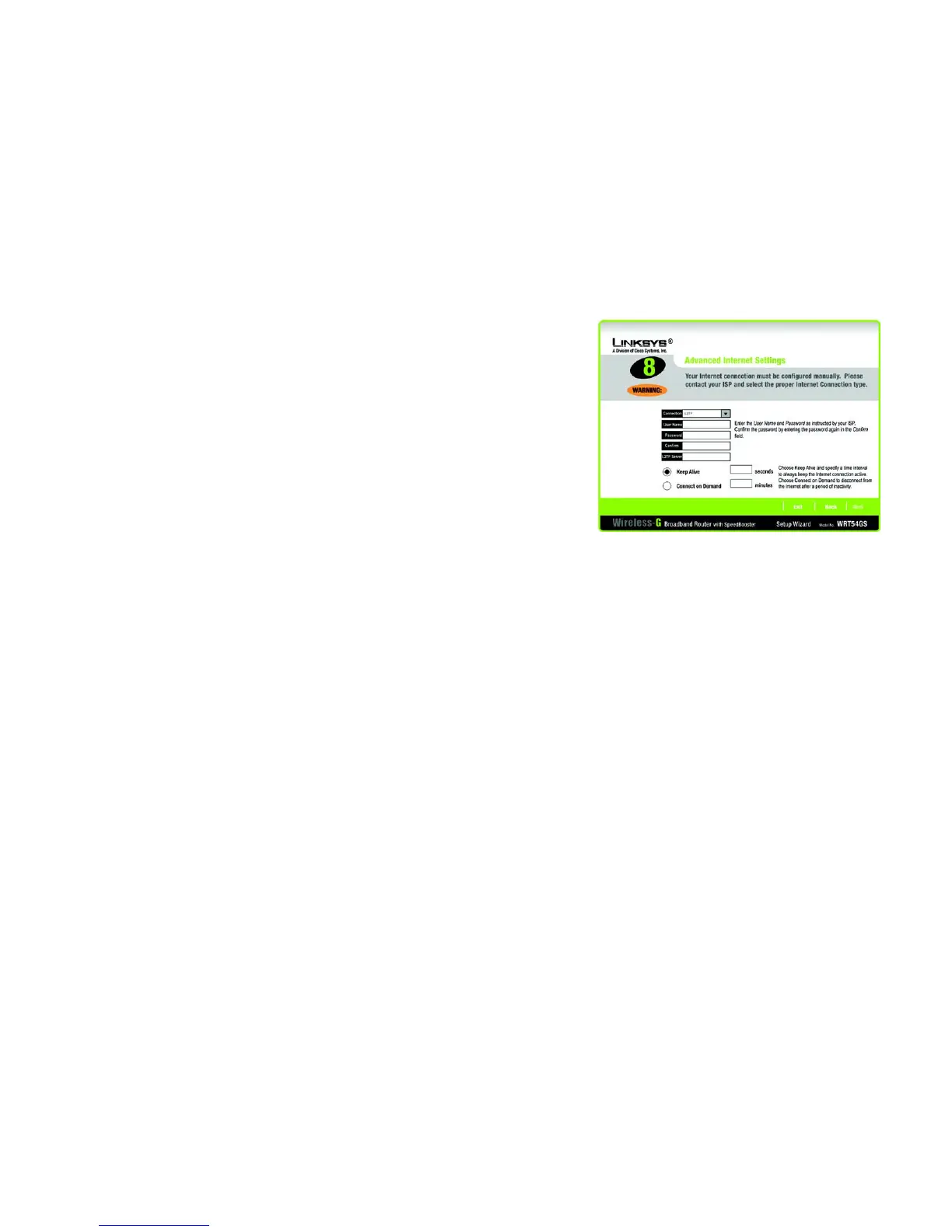

Figure 5-15: Setup Wizard’s Advanced Internet Settings -
L2TP Screen

Linksys WRT54GS Specifications

Power

power supply	External, 12V DC, 0.5A
RF power output	18 dBm

Operating Environment

operating temperature	32ºF to 104ºF (0ºC to 40ºC)
storage temperature	-4ºF to 158ºF (-20ºC to 70ºC)
operating humidity	10~85% Non-condensing
storage humidity	5~90% Non-condensing

Weight and Dimensions

dimensions	7.32” x 1.89” x 6.06” (186 mm x 48 mm x 154 mm)
weight	13.58 oz (385 g)
