Linksys WRT54GS User Manual

16
Chapter 5: Setting up the Wireless-G Broadband Router
Using the Setup Wizard
Wireless-G Broadband Router with SpeedBooster
8. The Setup Wizard will ask you to connect the other end of the network cable to the Router.
Then you can also connect additional PCs to the Router.
After you have done so, click the Next button.
9. The Setup Wizard will ask you to power on the Router. After you have done so, click the Next button.

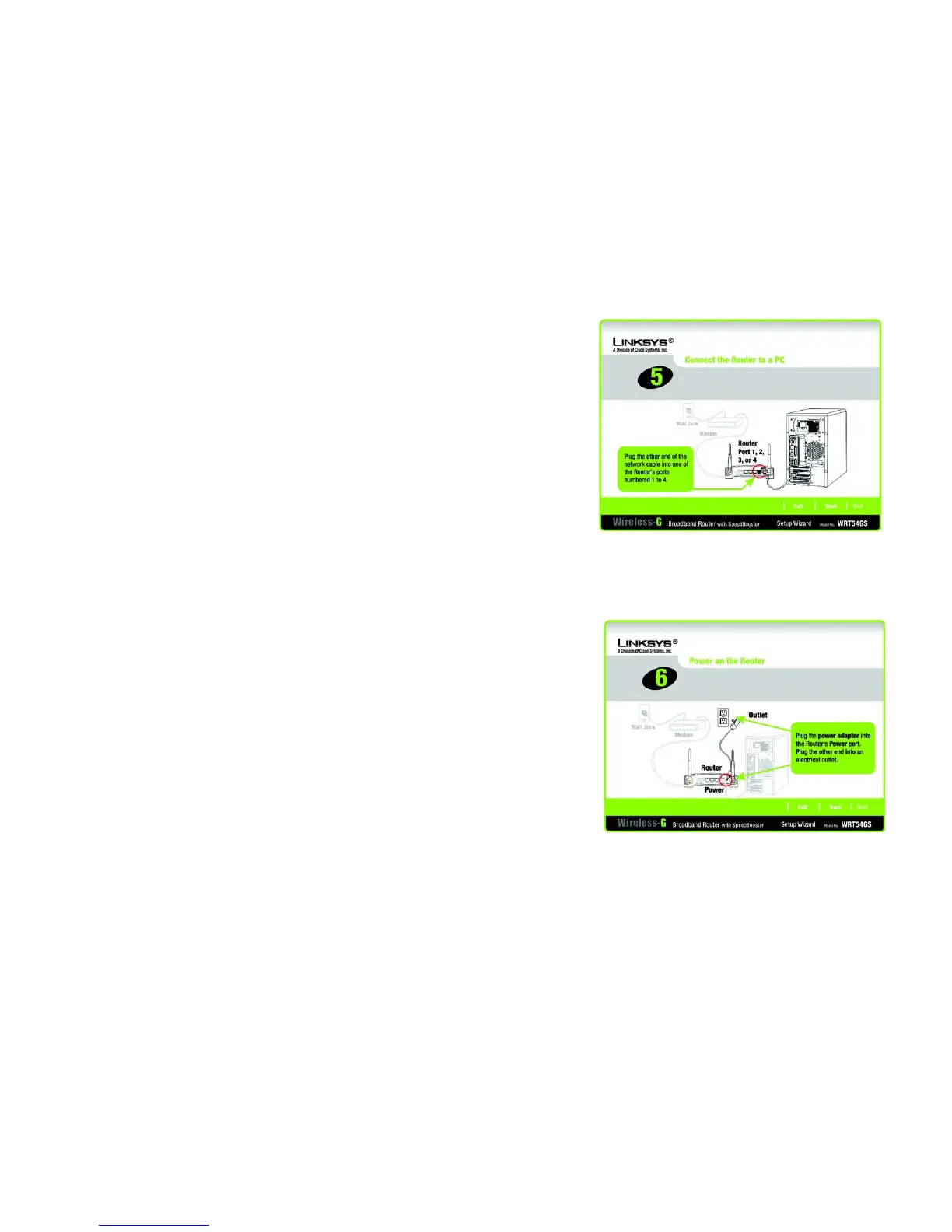

Figure 5-7: Setup Wizard’s Connect the Network Cable
to the Router Screen
Figure 5-8: Setup Wizard’s Power on the Router Screen

Linksys WRT54GS Specifications

Power

power supply	External, 12V DC, 0.5A
RF power output	18 dBm

Operating Environment

operating temperature	32ºF to 104ºF (0ºC to 40ºC)
storage temperature	-4ºF to 158ºF (-20ºC to 70ºC)
operating humidity	10~85% Non-condensing
storage humidity	5~90% Non-condensing

Weight and Dimensions

dimensions	7.32” x 1.89” x 6.06” (186 mm x 48 mm x 154 mm)
weight	13.58 oz (385 g)
