Linksys WRT54GS User Manual

17
Chapter 5: Setting up the Wireless-G Broadband Router
Using the Setup Wizard
Wireless-G Broadband Router with SpeedBooster
10. Make sure the Router’s Power, Internet, and numbered LEDs (depending on the number of PCs connected) are
lit on its front panel. After you have done so, click the Next button.
11. The Setup Wizard will automatically detect the Internet connection type you use: Cable or DHCP or DSL
(PPPoE). If the Setup Wizard cannot detect your Internet connection type, you will see the Advanced Internet
Settings screen, and you will be asked to select your Internet connection type: Static IP, PPTP, L2TP, or
Telstra. Proceed to the appropriate section for your Internet connection type.
Cable or DHCP
Host Name - Enter the Host Name if required by your ISP; otherwise, leave this field blank.
Domain Name - Enter the Domain Name if required by your ISP; otherwise, leave this field blank.
Click the Next button to continue or the Back button to return to the previous screen.

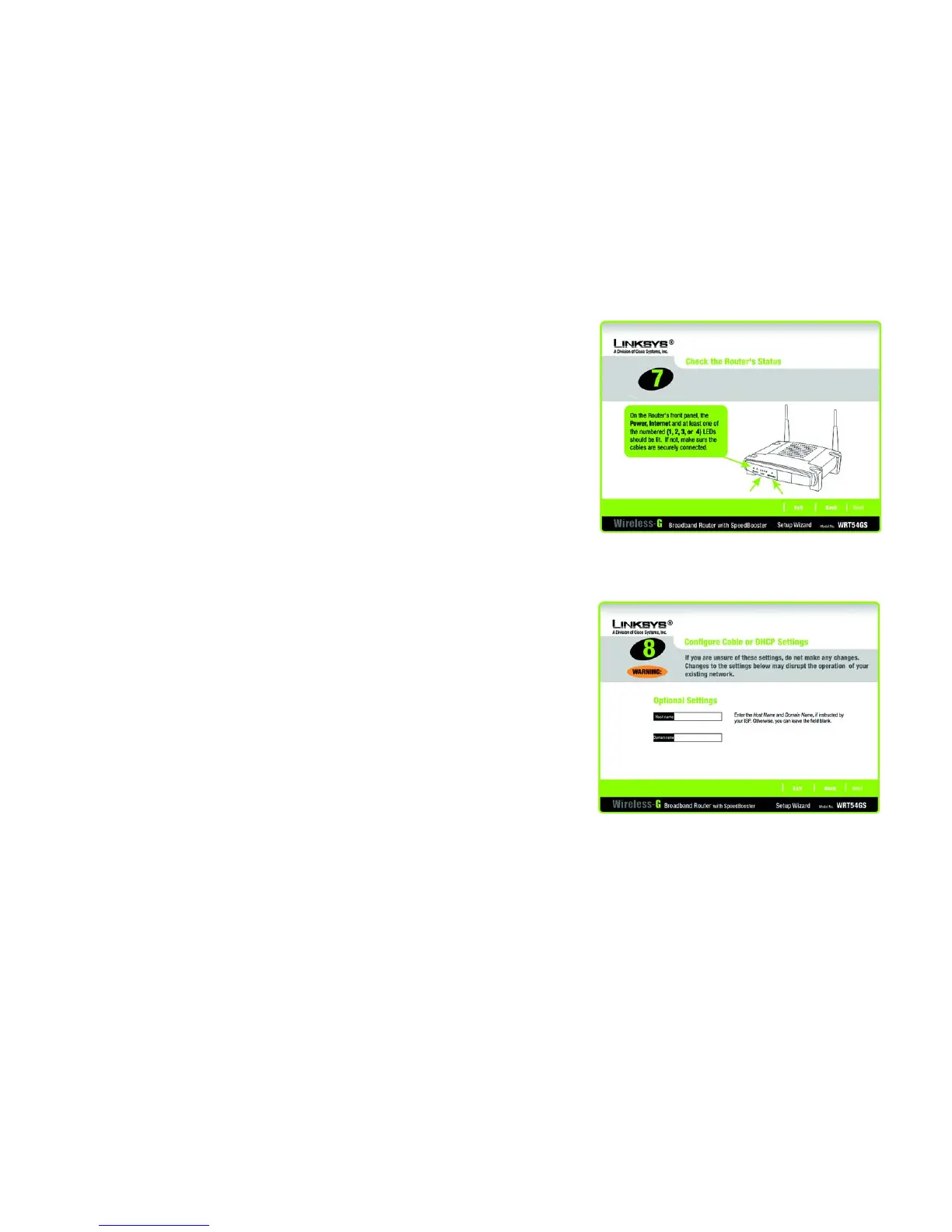

Figure 5-9: Setup Wizard’s Check the Router’s
Status Screen
Figure 5-10: Setup Wizard’s Configure Cable or DHCP
Settings Screen

Linksys WRT54GS Specifications

Power

power supply	External, 12V DC, 0.5A
RF power output	18 dBm

Operating Environment

operating temperature	32ºF to 104ºF (0ºC to 40ºC)
storage temperature	-4ºF to 158ºF (-20ºC to 70ºC)
operating humidity	10~85% Non-condensing
storage humidity	5~90% Non-condensing

Weight and Dimensions

dimensions	7.32” x 1.89” x 6.06” (186 mm x 48 mm x 154 mm)
weight	13.58 oz (385 g)
