Chapter 6: Configuring the Wireless-G Broadband Router
The Administration Tab - Diagnostics
Wireless-G Broadband Router with SpeedBooster
The Administration Tab - Diagnostics
The diagnostic tests (Ping and Traceroute) allow you to check the connections of your network components.
Ping Test. The Ping test will check the status of a connection. Click the Ping button to open the Ping Test screen.
Enter the address of the PC whose connection you wish to test and how many times you wish to test it. Then,
click the Ping button. The Ping Test screen will show if the test was successful. To stop the test, click the Stop
button. Click the Clear Log button to clear the screen. Click the Close button to return to the Diagnostics screen.
Traceroute Test. To test the performance of a connect, click the Traceroute button. Enter the address of the PC
whose connection you wish to test and click the Ping button. The Traceroute Test screen will show if the test was
successful. To stop the test, click the Stop button. Click the Clear Log button to clear the screen. Click the Close
button to return to the Diagnostics screen.
Change these settings as described here and click the Save Settings button to apply your changes or Cancel
Changes to cancel your changes.

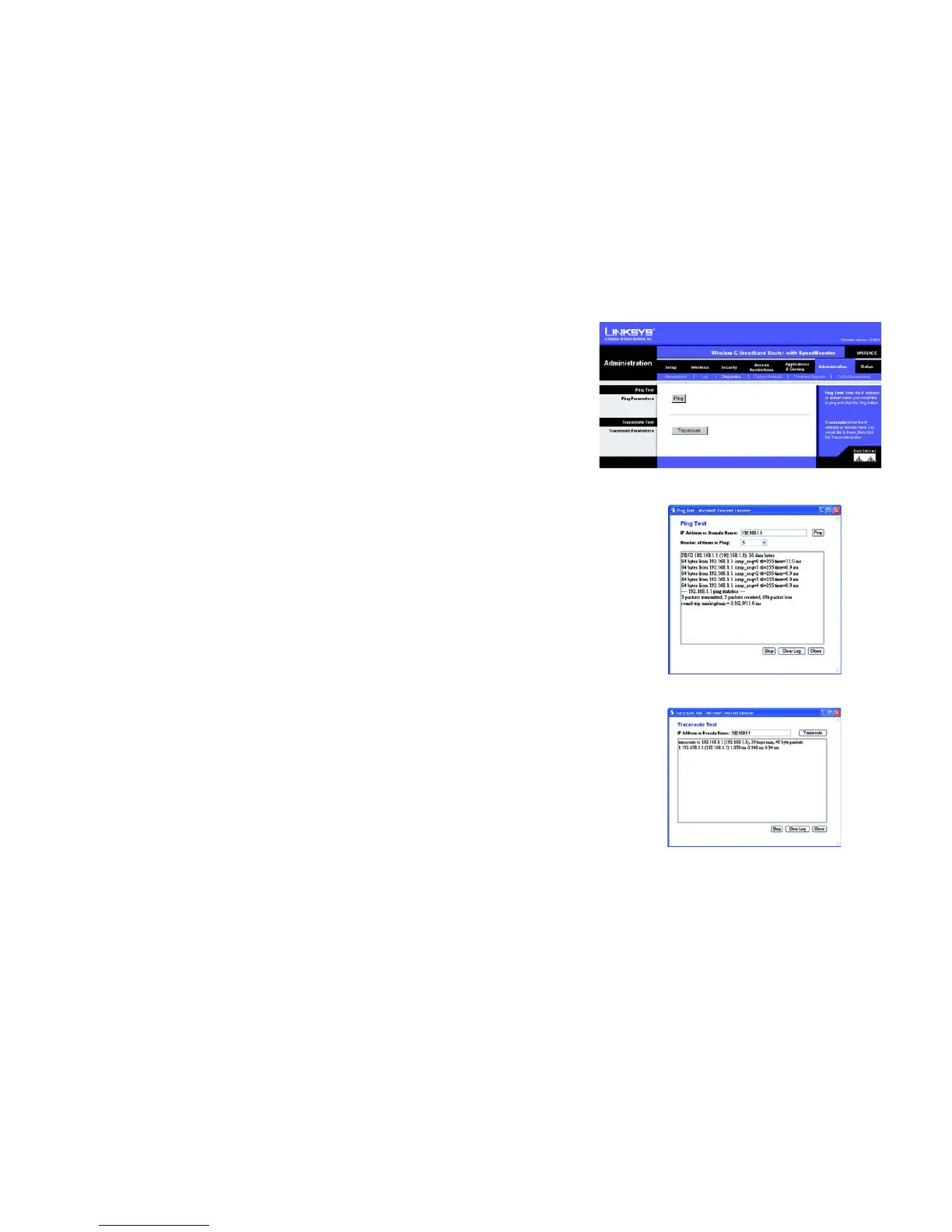

Figure 6-38: Administration Tab - Diagnostics
Figure 6-39: The Ping Test
Figure 6-40: The Traceroute Test

Linksys WRT54GS Specifications

Power

power supply	External, 12V DC, 0.5A
RF power output	18 dBm

Operating Environment

operating temperature	32ºF to 104ºF (0ºC to 40ºC)
storage temperature	-4ºF to 158ºF (-20ºC to 70ºC)
operating humidity	10~85% Non-condensing
storage humidity	5~90% Non-condensing

Weight and Dimensions

dimensions	7.32” x 1.89” x 6.06” (186 mm x 48 mm x 154 mm)
weight	13.58 oz (385 g)
