How To Create a Sequential Number
Linx 5900 & 7900
Use the Product Sensor option to define the trigger signal that you use.

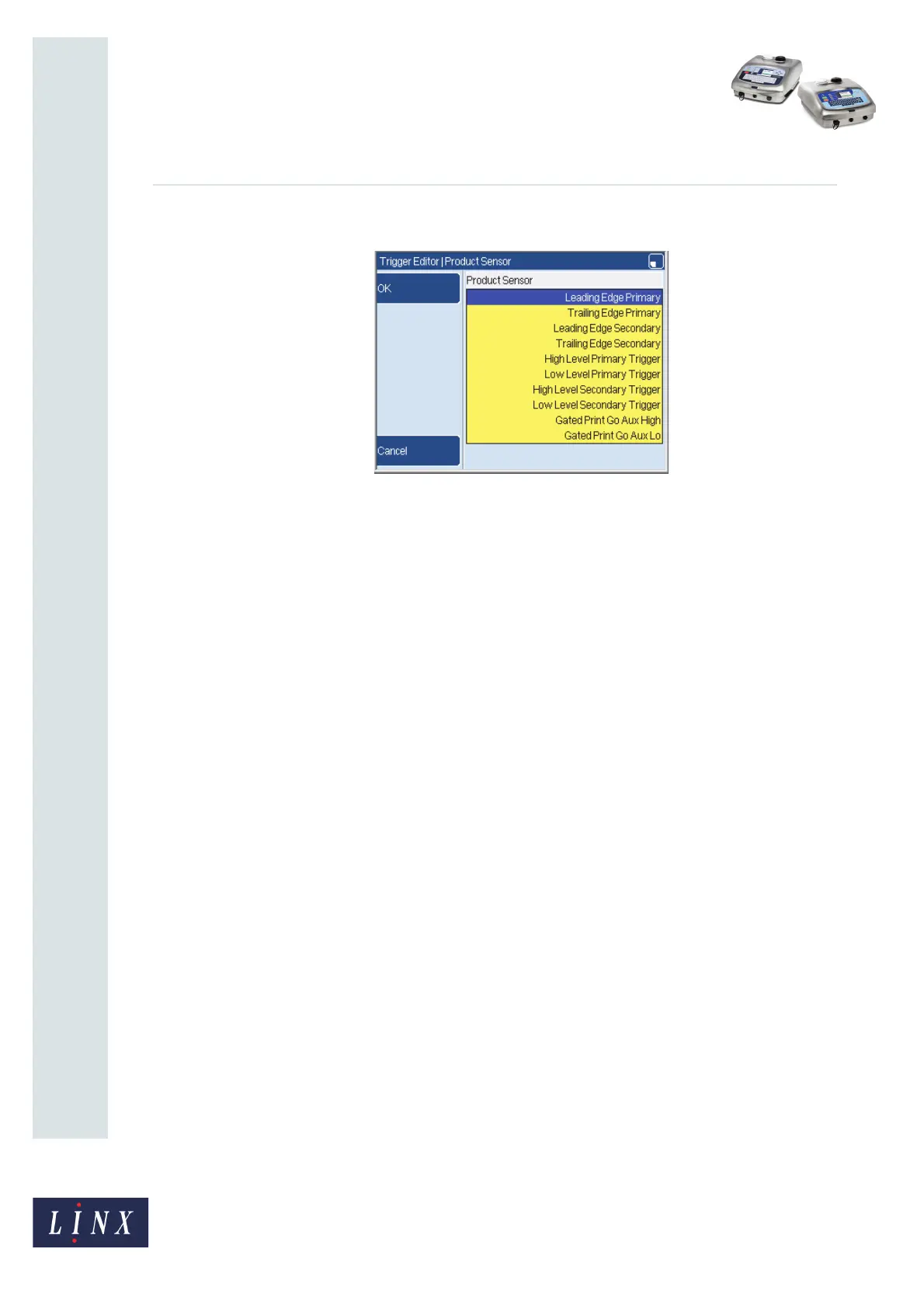

Figure 19. Trigger Editor: Product Sensor page
The trigger signal can be any of the following.
Leading Edge Primary
The rising edge of the signal from the Primary sensor.
Trailing Edge Primary
The falling edge of the signal from the Primary sensor.
Leading Edge Secondary
The rising edge of the signal from the Secondary sensor.
Trailing Edge Secondary
The falling edge of the signal from the Secondary sensor.
High Level Primary or Secondary
The Primary or Secondary sensor detects the presence of a product (the signal is active).
Low Level Primary or Secondary
The Primary or Secondary sensor does not detect the presence of a product (the signal is not
active).
Gated Print Go Aux High
The ‘gated’ trigger types are available only for the Next Trigger option.
