Rev: 07.15.19 Page 2 CCD-0002704
HAPPIJAC
®
BED LIFT SUPPORT LEG AND BRACKET INSTALLATION
TI-322
POWER AND MOTION
Support Leg Installation

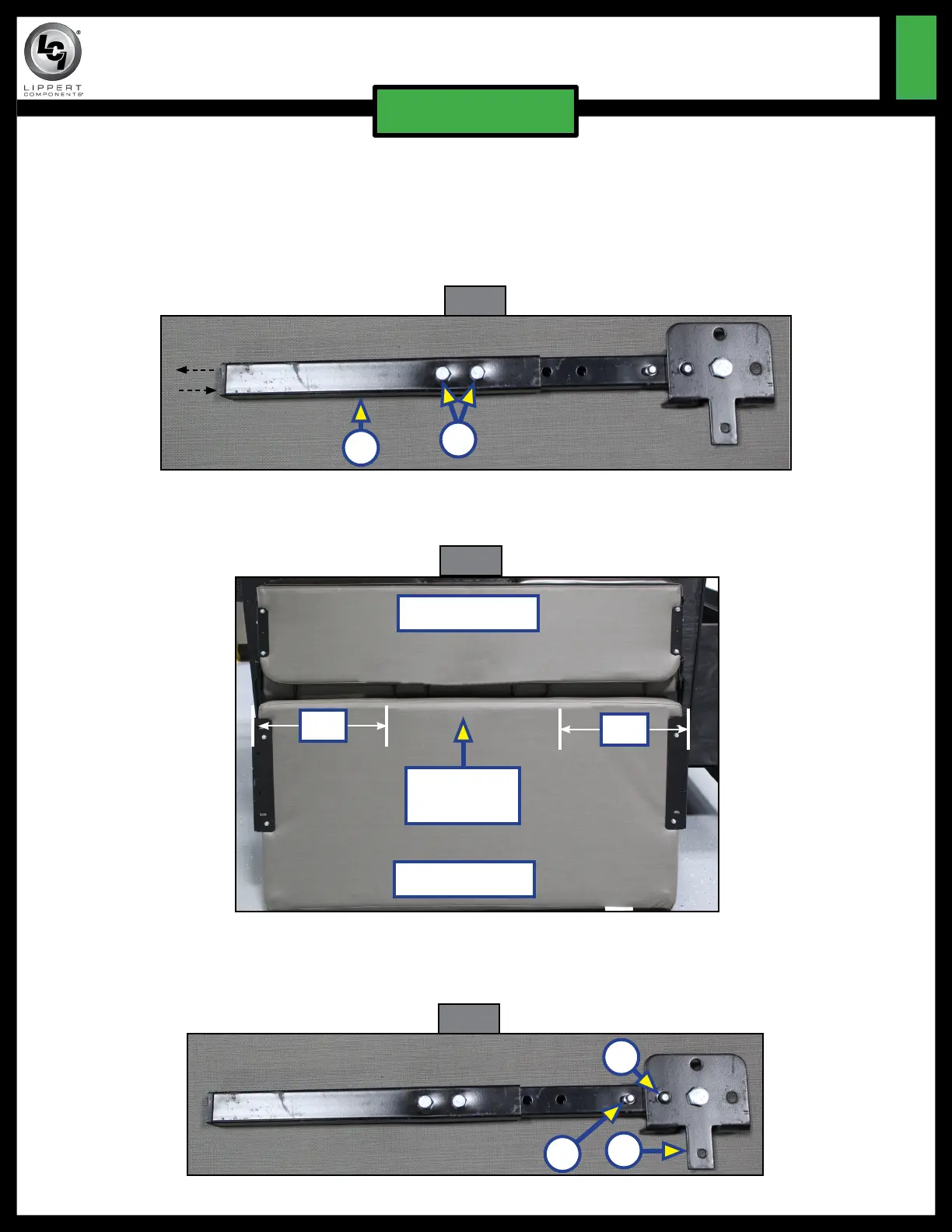

1. Remove the sofa unit from the HappiJac Bedlift and lay it flat face-down in a clean area.
2. The support legs can be adjusted, if needed. The 14-inch legs are normally are installed on the seat
cushion and the backrest uses the 15-inch. The legs can be adjusted by removing the two nuts and bolts
(Fig. 3A) and sliding the bottom part of the leg (Fig. 3B) in or out. Replace nuts and bolts after adjustment.
3. Measure about 12 inches from the outside edge of the cushion portion of the unit (Fig. 4). Feel for
strapping under the fabric and make a small mark between two straps that is close to both the 12-inch
measurement and to the inside edge of the steel frame. Repeat for the other side.
Fig. 4
12"
4. Fold one of the cushion support legs flat by pressing the adjustment button (Fig. 5A) and moving the
leg to one of the side holes (Fig. 5B) in the bracket.
5. Place the tab on the bracket end of the leg (Fig. 5C) on the measurement mark (step 3) with the leg
pointing towards center.
12"
inside edge
of frame
Seatback
Cushion
C
A
B
A
Fig. 3
Fig. 5
B
To Next Page
