BED LIFT SUPPORT LEG AND BRACKET INSTALLATION
TI-322
POWER AND MOTION

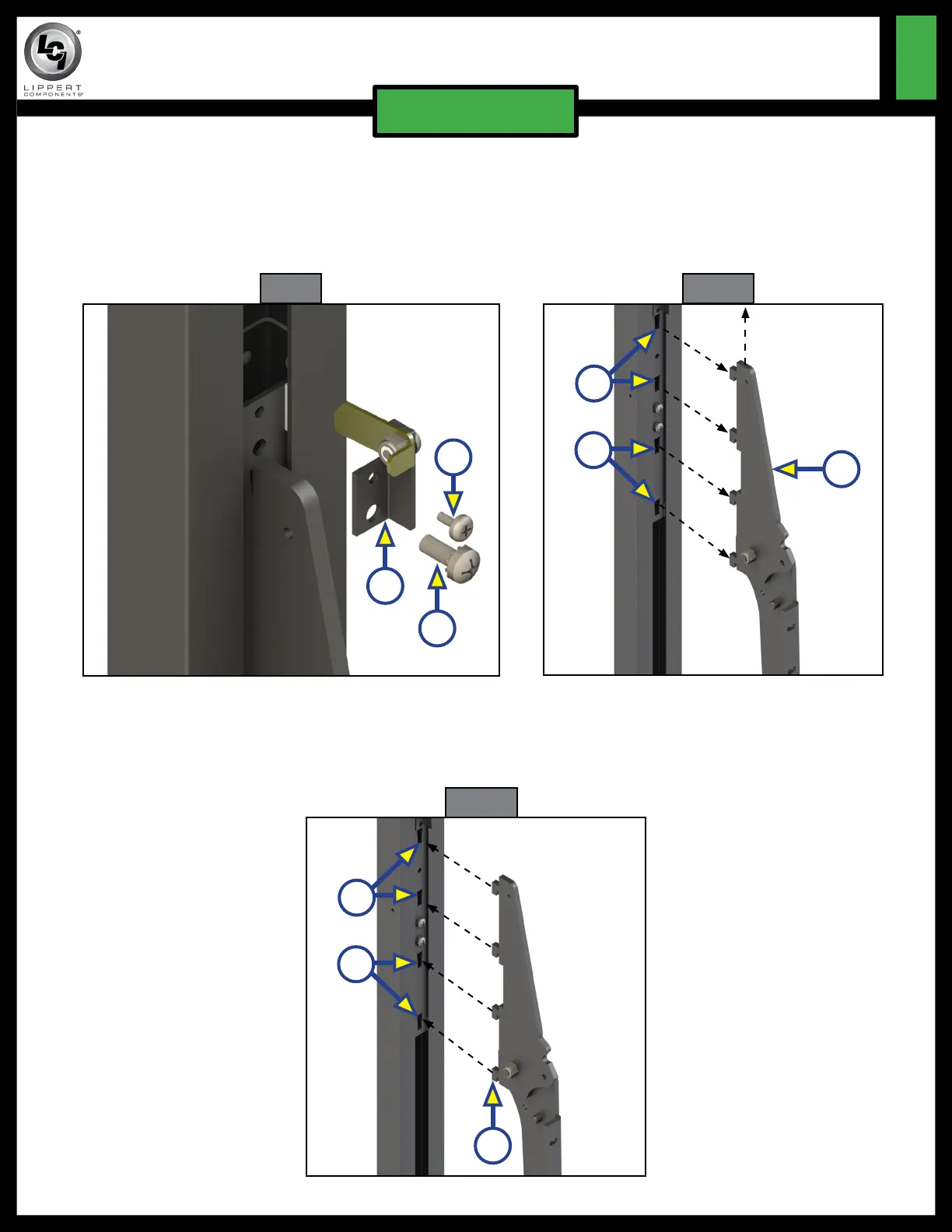

3. Remove the stop screw (Fig. 9A) from securing the support bracket, then remove the screw (Fig. 9B)
securing the trolley stop lock bracket (Fig. 9C) and remove the bracket. Set screws aside for later use.
4. Grasp the base of the sofa bracket (Fig. 10A) and pull up until the hooks are even with travel trolley
slots (Fig. 10B), then pull the sofa bracket away from the travel trolley.
5. Repeat for other brackets, if necessary.
Support Bracket Installation
1. Line up the hooks (Fig. 11A) on the end edge of the support bracket with the slots in the lower trolley
(Fig. 11B) then insert the bracket in to the trolley slots.
B
B
A
Fig. 10
A
B
C
Fig. 9
B
B
Fig. 11
A
