BED LIFT SUPPORT LEG AND BRACKET INSTALLATION
TI-322
POWER AND MOTION
A
B
Fig. 8
12. Make a small cut into the fabric, just beyond the inside edge the frame. The hole should be large
enough to accommodate the bracket tab. Slide the tab into the cut slot so that support leg bracket is
upright and the arms of the bracket are resting on the seat frame.
13. Secure the bracket to the frame with two 1 1/4" self-tapping screws.
14. Fold all three legs down and reinstall the sofa on the HappiJac support brackets.
15. After the sofa is installed, lower the sofa until it is stopped by the microswitch. Make sure the legs gently
rest on the floor. Adjust the legs, if necessary.
Support Bracket Removal
1. Remove the sofa/dinette configuration or bed platform from the support brackets.

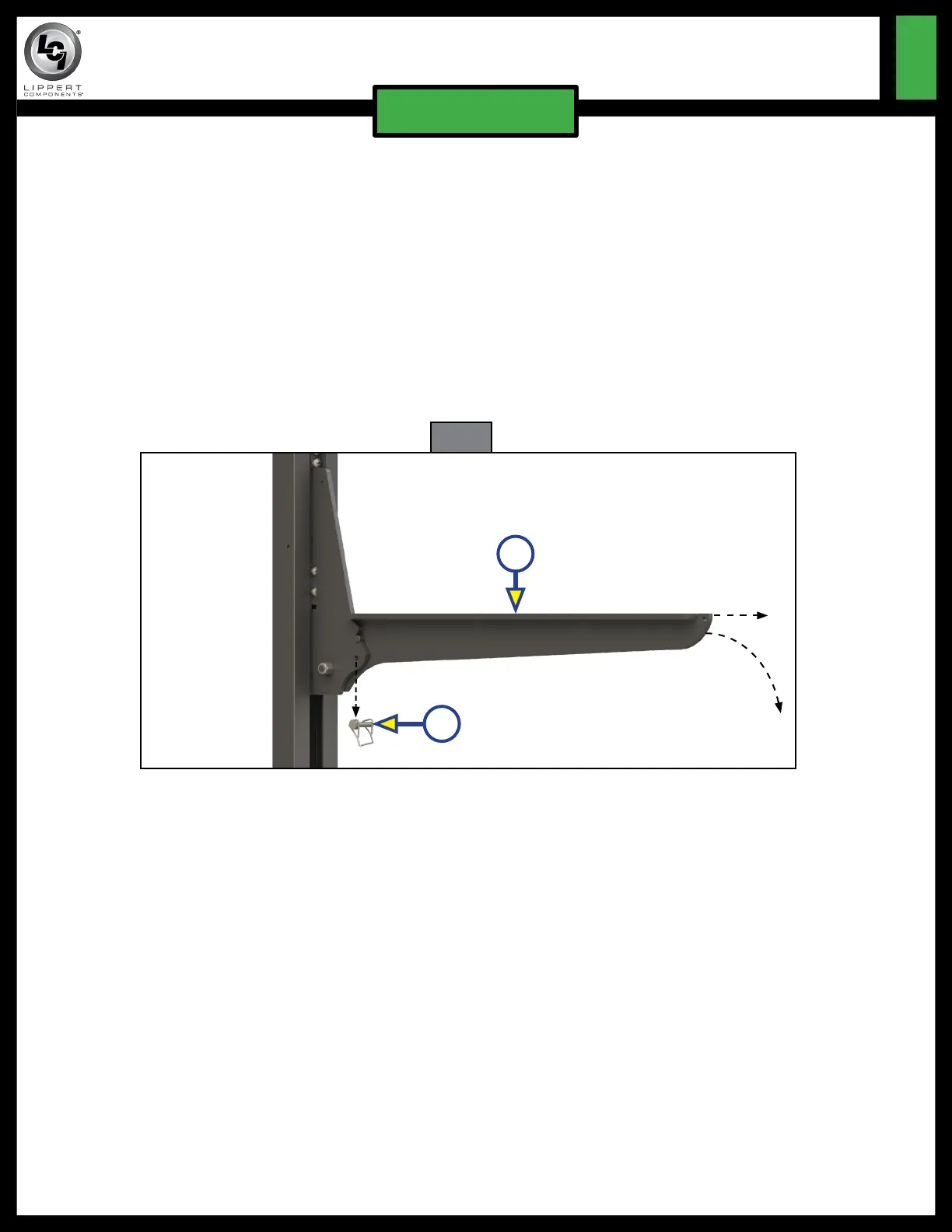

2. Remove the locking pin (Fig. 8A) from the bracket, then lower the bracket arm (Fig. 8B).
