Level-Up®
Aftermarket Manual
www.lippertcomponents.com (574) 537-8900 Rev: 09.15 - Level-Up® Aftermarket Manual
Operation
Unhitching from Tow Vehicle
NOTE: Prior to unhitching from the tow vehicle, ensure unit is
parked on a level surface and be sure to chock the tires of
the unit.
1. Extend the inner legs of both landing gear 4-5 inches by
pulling on the quick release pins.

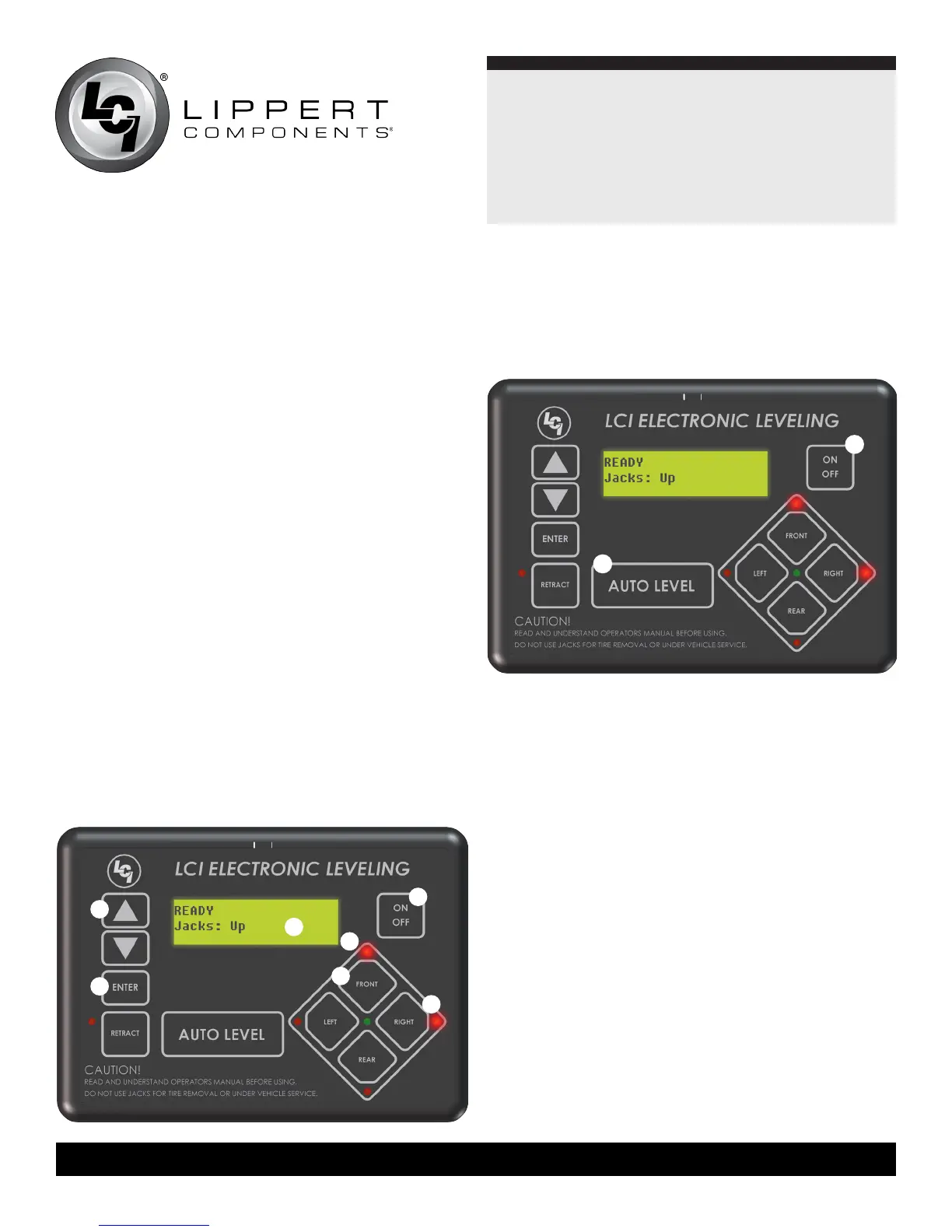

2. Push “ON/OFF” (Fig. 29A). LCD Screen will light up and
display“READYJACKS:UP”(Fig.29B).
3. Push the “UP” arrow (Fig. 29C) to scroll to “Drop Front
Jacks” option on LCD screen.
NOTE: Red indicator lights (Fig. 29D) may come on,
indicating the current disposition of the unit. In this case,
the front and right sides of the unit are low.
4. Push “ENTER” (Fig. 29E). Both front landing gear jacks will
go to ground and stop.
5. Push the “FRONT” button (Fig. 29F) extending the front
landing gear to a sufficient height, which raises the front of
the unit off of the tow vehicle’s 5th wheel hitch plate.
6. Pull tow vehicle away and park at a safe distance.
A
B
D
D
C
E
F
Fig.29
Auto Level
1. After unhitching from tow vehicle, and parking the vehicle
at a safe distance away from the unit, press the “ON/OFF”
button (Fig. 30A) and then press “AUTO LEVEL” (Fig. 30B).
A
B
NOTE: Once the automatic leveling cycle has been started, it
is important that there is no movement in the coach until
the unit has completed the leveling process. Failure to
remain still during the leveling cycle could have an effect
on the performance of the leveling system.
NOTE: In order for the hitch recognition feature to function,
the auto level sequence must be started with the front of
the unit above level.
Auto Level Sequence
1. When Auto Level Sequence begins, the front of the unit will
lower slightly to a point below level. The coach will then
stop and raise up to the point where it is level from front to
rear.
2. Rear leveling jacks are grounded.
3. A side to side leveling sequence occurs.
4. Each jack will perform a final grounding touch.
5. LCD will read “AUTO LEVEL SUCCESS” (Fig. 31).
6. LCD will then read “READY Jacks: Down” (Fig. 32A), and
Fig.30
