Rev: 09.11.20 Page 7 CCD-0001360-AU
3. Use a screwdriver to spread open either end of the awning rail on the installation side (Fig. 8A).
4. To protect the fabric from damage during installation, file any sharp edges or burrs from the awning
rail channel.
5. Spray the inside of the awning rail channel (Fig. 8B) with silicone lubricant.
6. Remove the packaging from the fabric. Unroll a small portion of fabric, but not more than one rotation
of the fabric.
Note: The next step will require three people: One to feed the polycord into the awning rail channel; two
to walk the support arm assemblies along the awning rail while the fabric slides into position.
7. Slide the polycord into the awning rail channel and walk the support arm assemblies and fabric
down the awning rail channel until the support arm assemblies are in line with the centerline marks
made previously.
8. Lift the support arm assembly up and secure the feet into the previously installed bottom mounting
brackets by pressing the lever and opening the latch (Fig. 9).
9. Slide the mount/rafter arm upper channel (channel #3) (Fig. 7) up or down as needed over the mount
arm lower channel (channel #4) (Fig. 7).
Note: If adjustments need made to set the desired height for the upper mounting bracket, loosen the
black locking knob on the mount/rafter arm upper channel (channel #3)(Fig. 7).

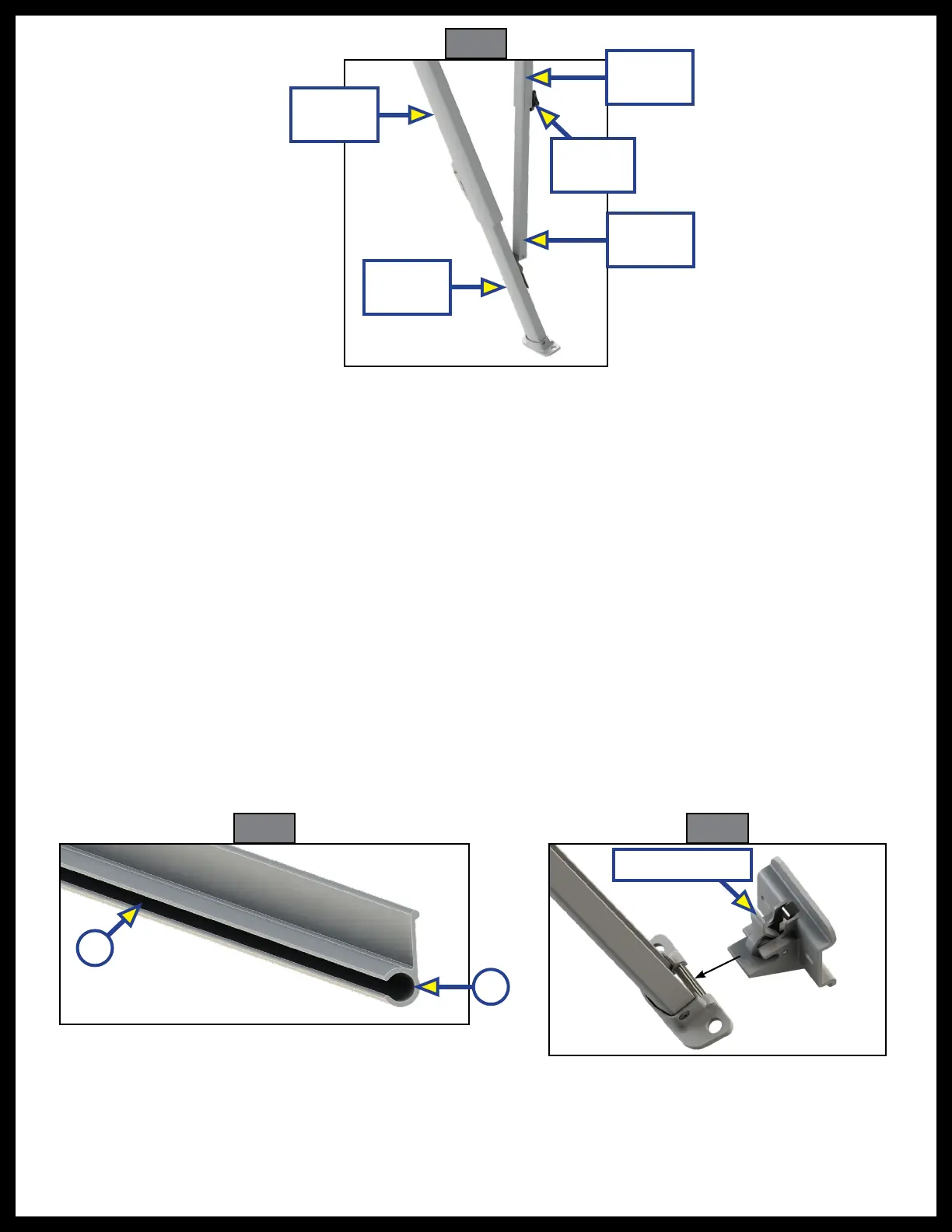

Fig. 7
Channel
#1
Channel
#2
Channel
#3
Locking
Knob
Channel
#4
Fig. 9
Push to Open
Fig. 8
B
A
10. Secure the upper bracket.
