Rev: 09.11.20 Page 4 CCD-0001360-AU
Installation
Note: All screws supporting the awning assembly MUST have a backer within the structure of the wall of
the unit. Refer to the unit manufacturer for proper location.
Installing the Awning Rail (If Necessary)
Note: Awning rail not included.
Sidewall Mounting
1. Position the awning rail along the line where roof and wall meet OR:
A. For pitched awnings: A minimum of 11” above doors or windows
B. For flat awnings: A minimum of 4” above doors or windows
Note: The awning rail must be level and parallel with the floor line of the unit (Fig. 2).
2. After determining the awning rail's proper location, mark its position with a non-permanent method of marking.
3. Seal the back of the awning rail.
4. Align the awning rail on the wall and secure with #10 x
¾
” screws, using all fastener holes.
Pop Top Mounting
1. Position the awning rail above the line where roof and wall meet.
Note: The awning rail must be level and parallel with the floor line of the unit (Fig. 2).
2. Repeat steps 2-3 above.
3. Align the awning rail on the roof (Pop Top) and secure with #10 x
¾
” screws, using all fastener holes.

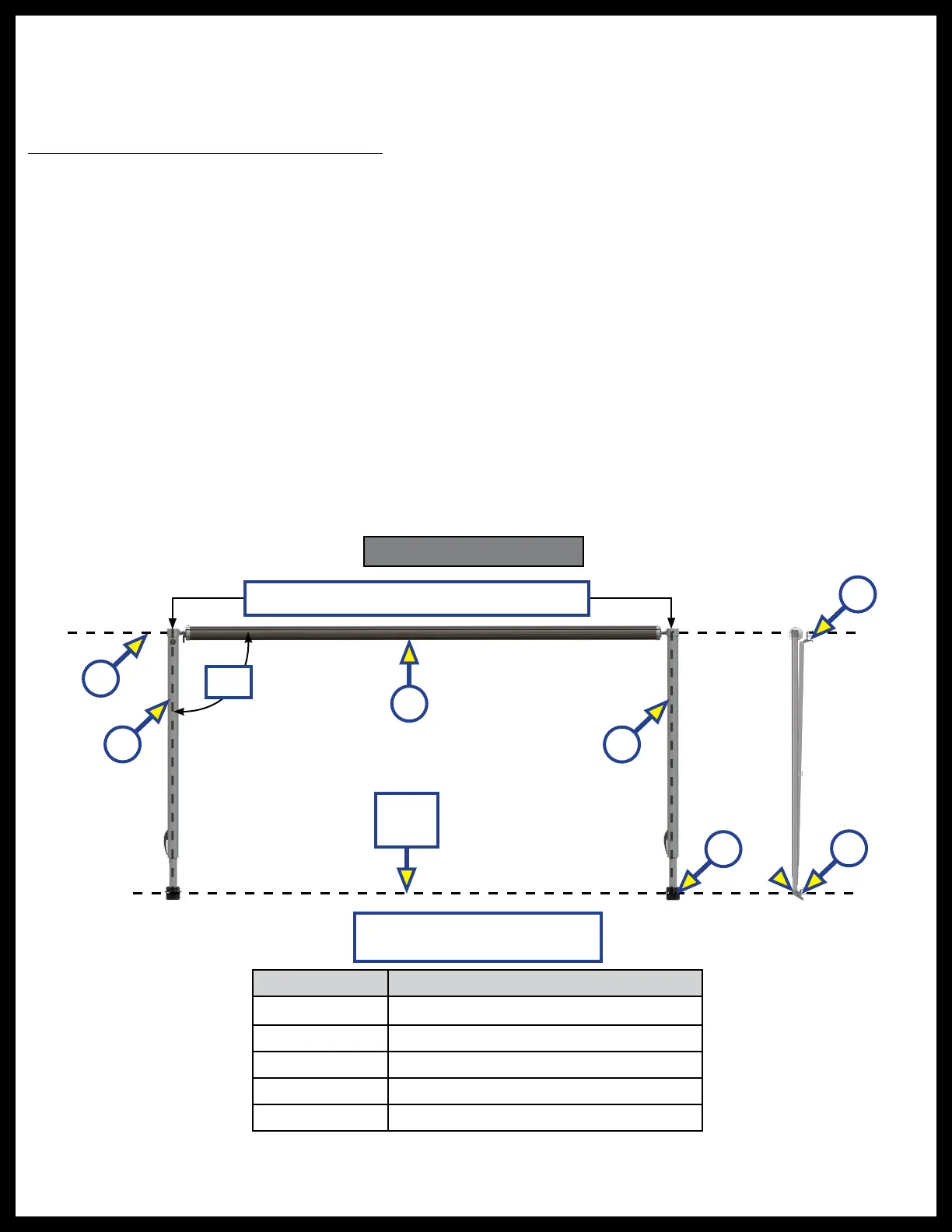

Floor
Line
90°
Awning Width = Bolthead-to-Bolthead
Fig. 2- Front Facing View
Callout Description
A Awning Rail
B Support Arm
C Roll Tube Assembly
D Lower Mounting Bracket
E Upper Mounting Bracket
E
D
D
A
B
B
C
Awning Rail Assembly Parts
