Securing the Fabric
1. Roll the awning in and out several times to ensure that the fabric is square on the roll tube.
2. Secure the fabric in the awning rail no more than 1” inside the edge of the fabric on both ends using
a #6 x 1/2” hex. head screw. Install the screw down through the awning rail into the fabric and the
polycord (Fig. 12).

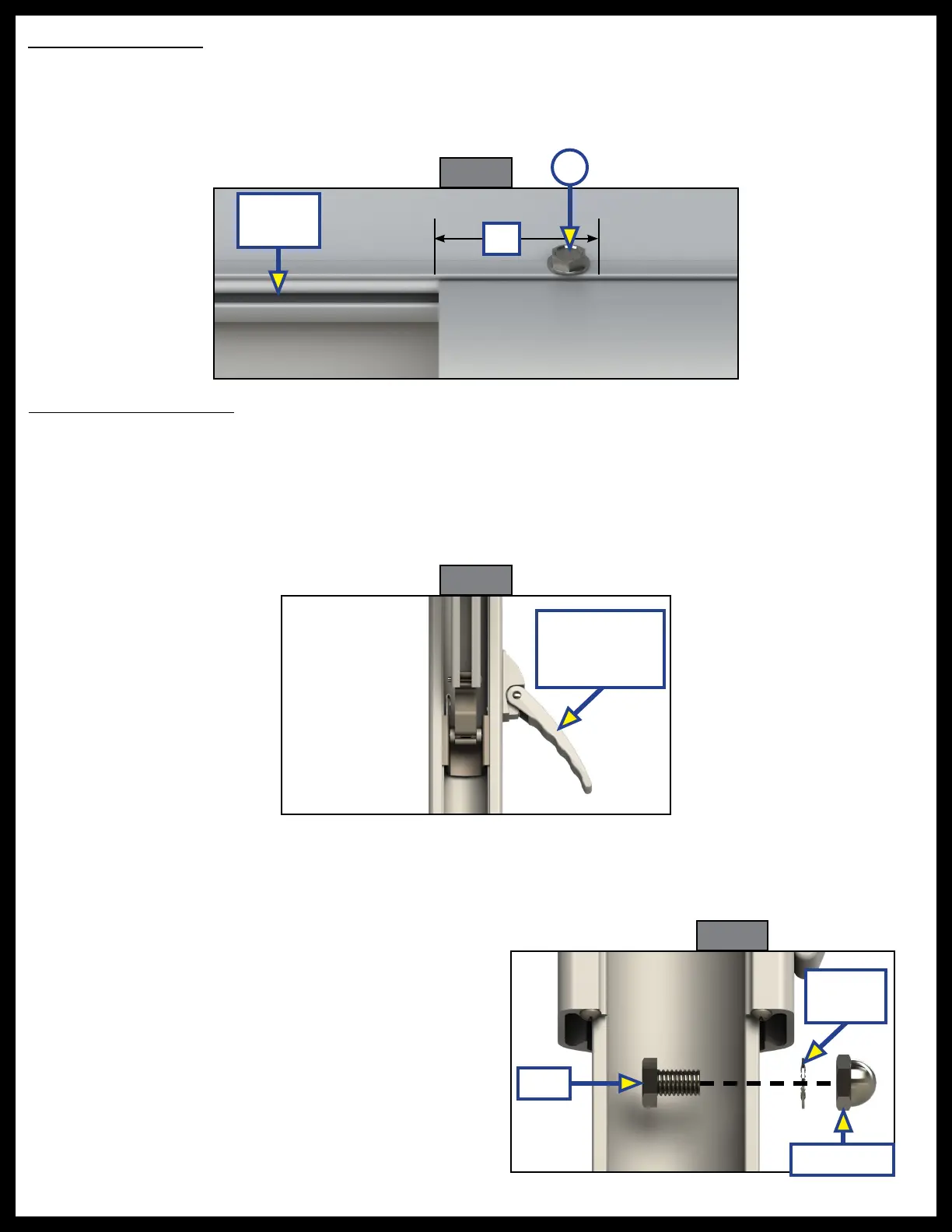

Fig. 12
Awning
Rail
1"
A
Installing the Stop Bolt
1. Make sure the awning is completely retracted.
2. Make sure the roll tube centerline is level with or slightly higher than the awning rail centerline (Fig. 2).
The bottom of the roll tube MUST not be higher than the awning rail.
3. Adjust support arm assemblies if necessary.
A. Open the outer arm handle (Fig. 13) and slide the outer arm upper channel (Fig. 7, channel #1) up
or down to the desired height.
Fig. 13
Support Arm
Assembly
Handle
B. Close the handle and slide the outer arm upper channel (Fig. 7, channel #1) upward on the outer
arm lower channel (Fig. 7, channel #2) until the locking pin clicks into the nearest positioning hole.
4. With a non-permanent method of marking, mark the position of the stop hole that is directly below the
outer arm upper channel (Fig. 7, channel #1).
Fig. 14
Bolt
Star
Washer
Acorn Nut
5. From the inside of the outer arm lower
channel (Fig. 7, channel #2) insert a ⁄" bolt
through the hole. Secure with a star washer
and a ⁄" acorn nut using a ½" socket and
wrench (Fig. 14).
Note: It may be necessary to lift the outer arm
upper channel (Fig. 7, channel #1) to
tighten the acorn nut.
6. Repeat steps 3-5 for the other support arm.
