The canvas bimini top has securing straps with female snaps (Fig. 1) located at frame cornerswhich may
be located at the bow port and starboard corners and/or aft port and starboard corners. Securing straps
prevent undue billowing of the bimini top when installing the boot.
Make sure all securing straps are in place when installing the boot or operating the bimini top. If necessary,
start at one canvas corner and tightly pull and wrap the securing strap around the bimini top strut (Fig. 1)
and snap in-place. Repeat procedure as necessary for each securing strap.

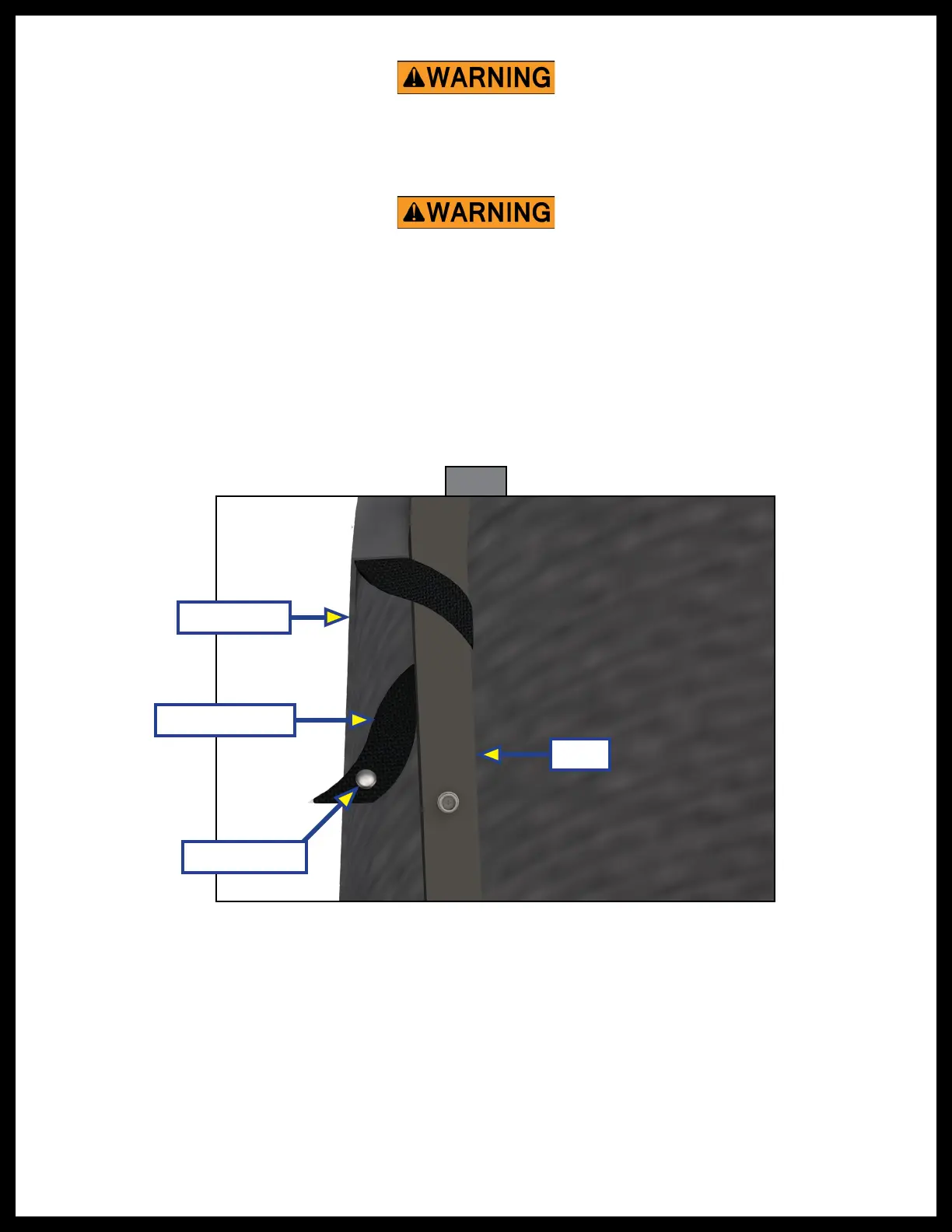

Fig. 1
Operation
The Power Bimini top can be operated in four different positions:
• Fully Closed for lifts, bridges and storage
• Vari-pitch for shade during low-setting sun conditions
• Radar for aft entry/exit
• Fully Opened for maximum shade
Never operate the top while the boat is in motion. Operating the top while the boat is in motion can
cause serious damage to the top's framework, which could cause severe product and/or property
damage including serious personal injury.
Before operating the power bimini top, thoroughly inspect the area around the entire bimini
assembly. Verify that all passengers are in a safe position and that nobody is in an area that will
interfere with the motion of the bimini or serious personal injury or severe product damage
mayoccur.
Strut
Canvas Top
Securing Strap
Female Snap
