Rev: 08.30.22 Page 50 CCD-0006500

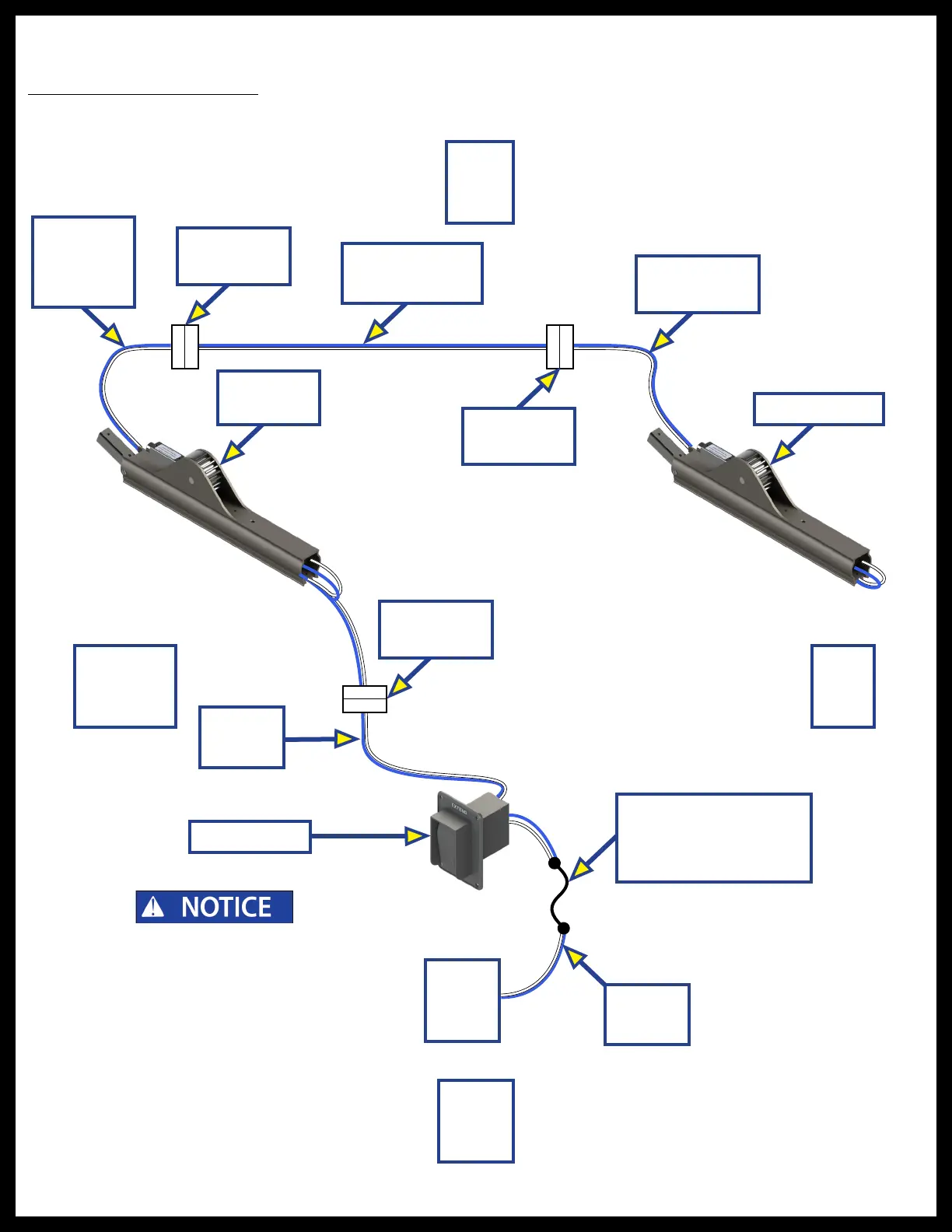

Wiring Diagrams
Helm Switch to Actuators
NOTE: Configuration NOT Bluetooth compatible.
Starboard
(Right)
Port
(Left)
Stern
(Rear)
Bow
(Front)
Power
Source
Starboard
Actuator
Port Actuator
Port Harness
(Blu/Wht)
Frame Harness
(Blu/Wht)
Starboard
Harness
(Blu/Wht)
Helm
Harness
Switch
Harness
Harness
Connectors
Harness
Connectors
Harness
Connectors
Circuit Protection per
ABYC Codes
(OEM Supplied)
e 6 Amp auto-reset circuit breaker used
on any Power Bimini System that does NOT
use the touch-sensitive controller MUST be
protected by a 15 Amp auto-reset circuit
breaker or a 30 Amp fuse. e 6 Amp auto-
reset circuit breaker provides protection for the
Power Bimini System and NOT for the entire
cra's electrical wiring system. Do NOT use a
replacement fuse less than 30 Amps. Circuit
breakers and fuses do NOT operate the same
and are NOT interchangeable.
Helm Switch
To Next Page
