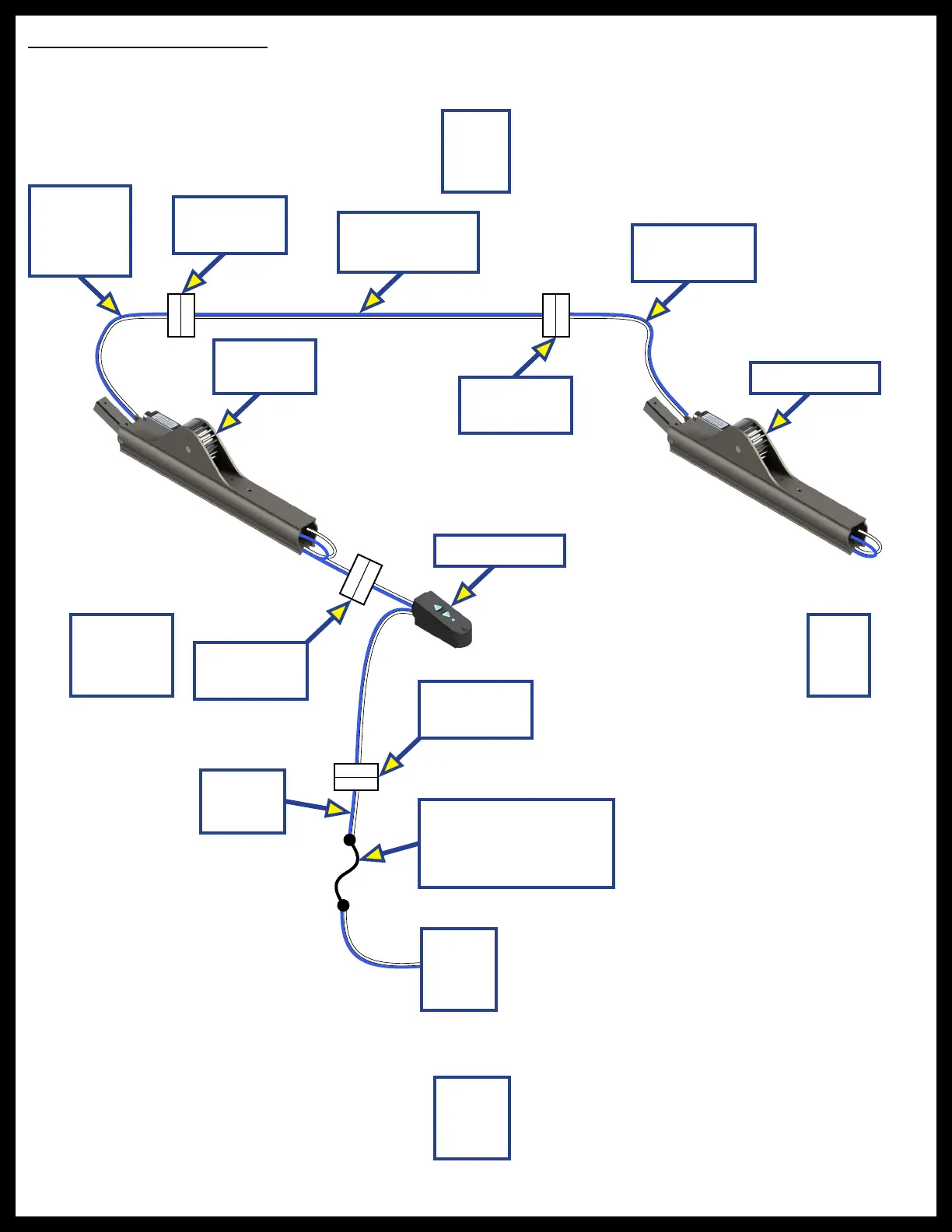

Lippert Power Bimini Master - QC Controller to Actuators

Rev: 08.30.22 Page 53 CCD-0006500
Starboard
(Right)
Port
(Left)
Stern
(Rear)
Bow
(Front)
Power
Source
QC Controller
Starboard
Actuator
Port Actuator
Port Harness
(Blu/Wht)
Frame Harness
(Blu/Wht)
Starboard
Harness
(Blu/Wht)
Helm
Harness
Harness
Connectors
Harness
Connectors
Harness
Connectors
Harness
Connectors
Circuit Protection per
ABYC Codes
(OEM Supplied)
QC Controller to Actuators
NOTE: Configuration Bluetooth compatible.
