Lippert Power Bimini Master - Front Shade Extension-If so Equipped

Rev: 08.30.22 Page 37 CCD-0006500

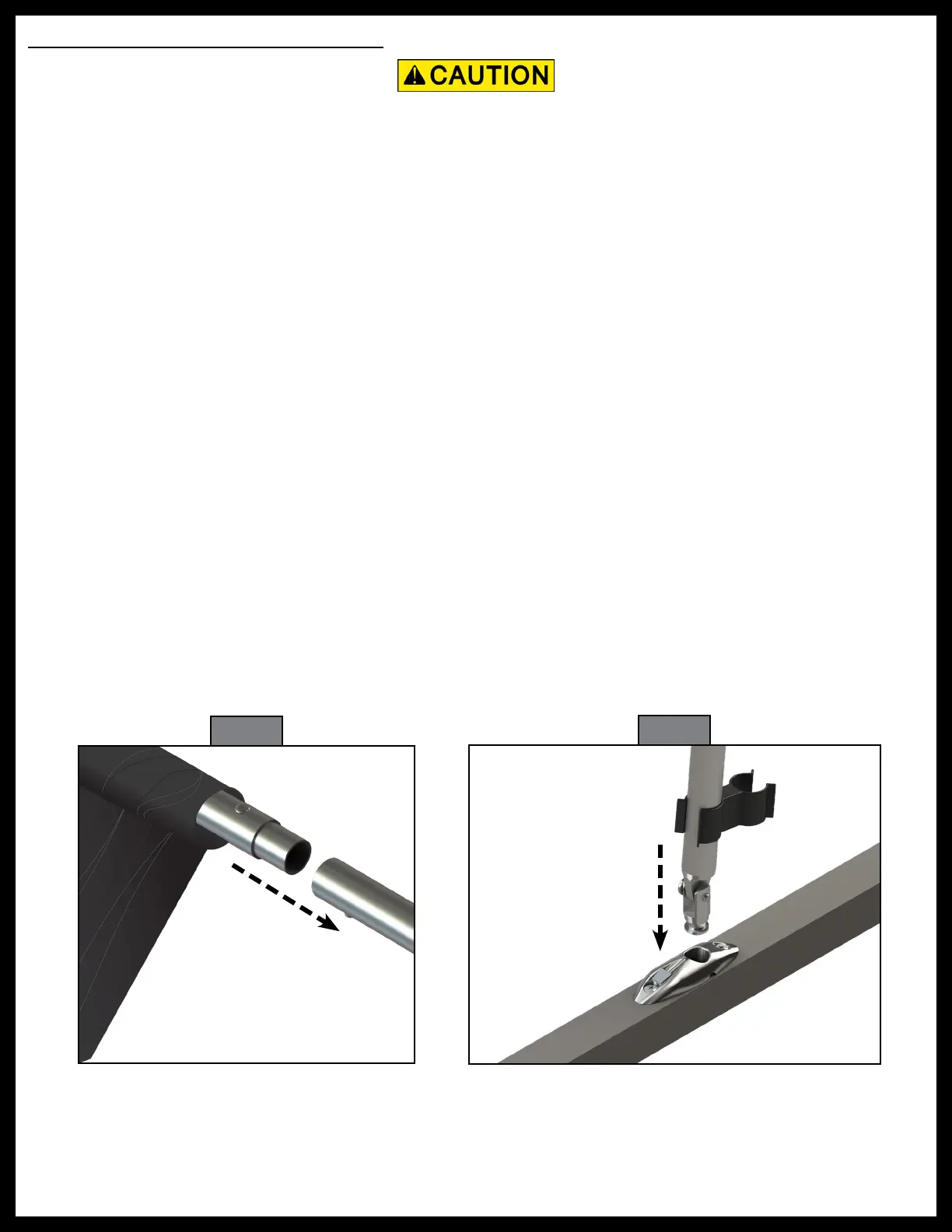

Fig. 40
Fig. 41
Front Shade Extensionif so equipped
Do NOT exceed 15 mph when front shade extension is deployed. Exceeding maximum speed
limit with front shade extension deployed can cause damage to the extension and void product
warranty.
The front shade extension provides protection from the elements over the front of the boat and can be
customized to provide the same protection at the rear of the boat.
NOTE: The maximum 15 mph speed limit MUST still be observed when the front shade extension is
deployed in the reversed position. Even when deployed in the reverse position, exceeding the
maximum speed limit can cause damage to the extension.
NOTE: Front support straps are NOT used when the front shade extension is in use. Disconnect front
support straps and stow them in the bimini top's front zippered storage pocket before deploying
the front shade extension. If so desired, reconnect the front support straps after the front shade
extension has been disconnected andstowed.
The front shade extension connects to Lippert canopies with the front, zippered storage pocket.
Forward (front)
1. If necessary, open the bimini top to its fully opened position.
NOTE: Do NOT fully open the QC bimini system without the canvas top installed or failure of the system
will result.
2. Extend the front shade extension forward, towards the front of the boat as follows:
A. Unzip the top’s front storage pocket.
B. If necessary, connect the zipper end of the front shade extension fabric to the open zipper of the
storage pocket, then zip it closed to secure the front shade extension fabric to the top.
C. Unfurl and stretch the front shade extension fabric towards the front of the boat.
D. Release the stanchions.
E. Snap the two sections of the tube together (Fig. 40).
F. Insert each stanchion into its respective locking plate (Fig. 41).
