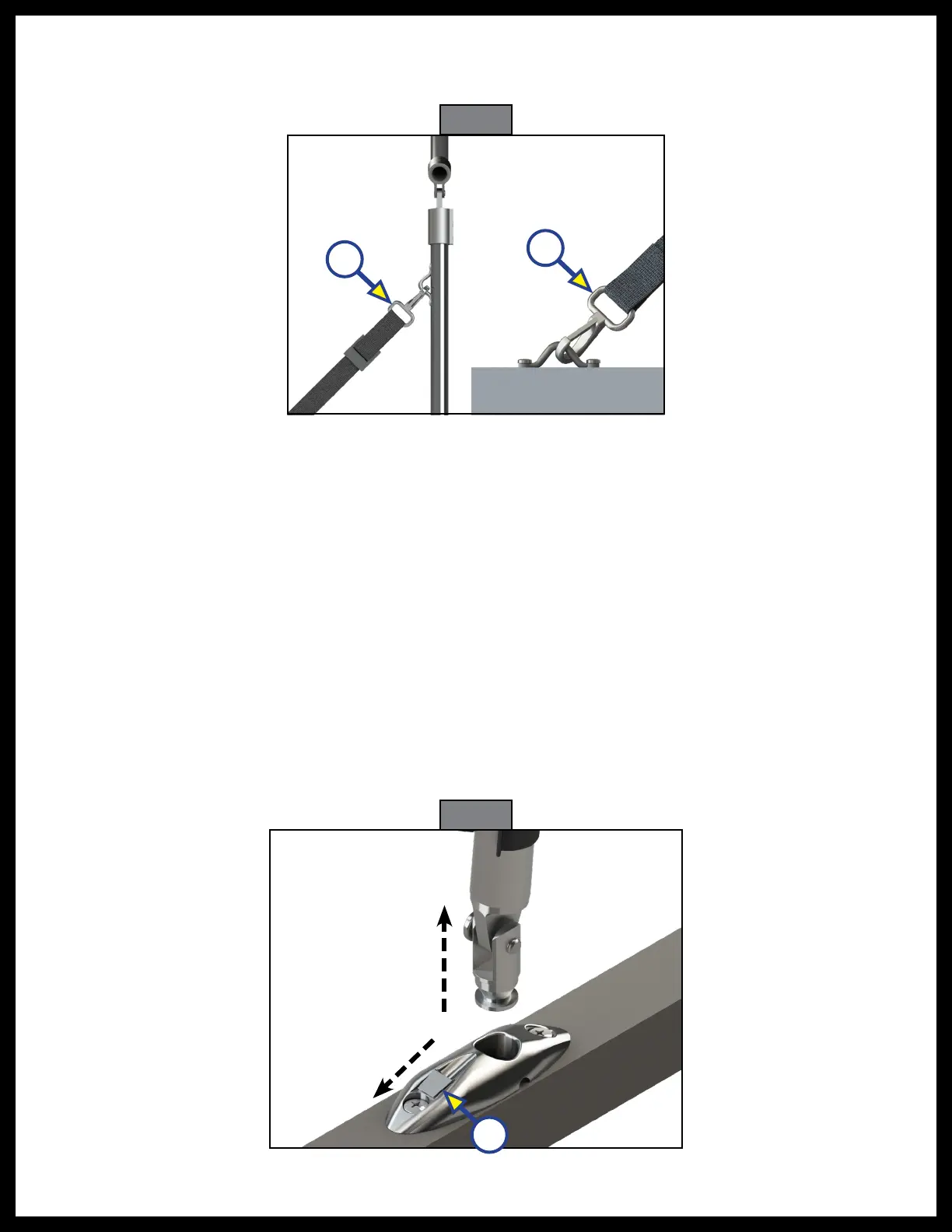

Fig. 42
G. Attach and extend the tie-down strap from the stanchion's saddle (Fig. 42A) to its respective fence
rail saddle (Fig. 42B).
H. Pull tie-down straps taut to ensure proper forward installation of the front shade extension.
Fig. 43
A
Reverse (rear)
The installation of the reverse (rear) front shade extension position, when used in combination with the high
speed mesh top, is meant as a rain deterrent. Installation of the reverse front shade extension is performed
in the same manner as outlined for the forward (front), except the fabric is placed underneath the bimini top
and secured to the rear rails with locking plates for the stanchions and saddles for the tie-down straps.
With the bimini top fully opened and the front shade extension mounted forward, reverse the bimini top
asfollows:
1. Loosen the tie-down straps and unclip them from their saddles.
2. Slide the locking button (Fig.43A) on each locking plate back to release the stanchions from their
locking plates.
3. Walk the stanchions to the rear of the boat, passing the front shade extension underneath the
extendedcanopy.
4. Insert each stanchion in its respective locking plate.
5. Clip each tie-down strap onto its respective saddle, then draw the tie-down straps taut to ensure
proper reverse installation of the front shade extension.
