Lippert Power Bimini Master - Helm Switch to Actuators and Speakers

Rev: 08.30.22 Page 52 CCD-0006500

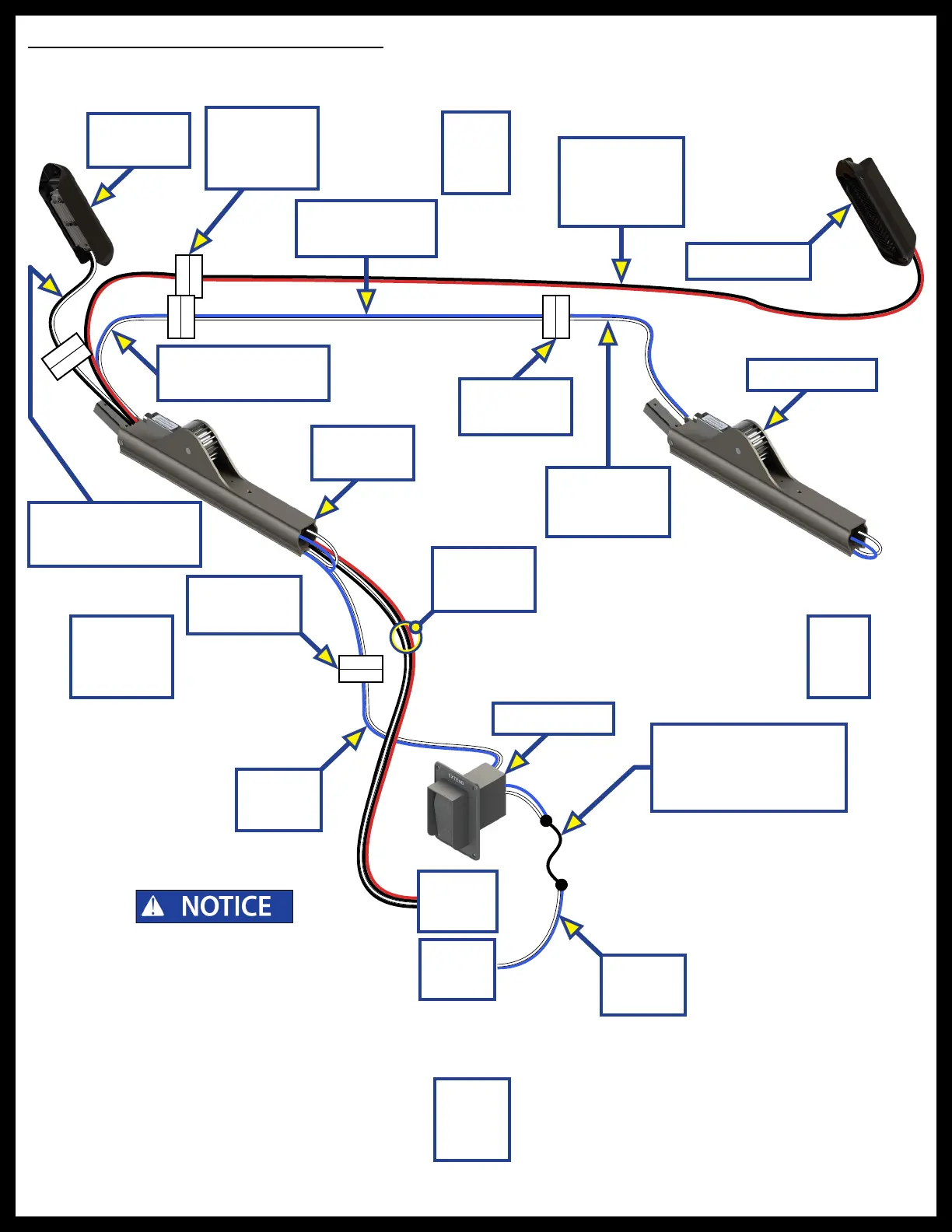

Helm Switch to Actuators and Speakers
NOTE: Configuration NOT Bluetooth compatible.
NOTE: Connect Port Speaker to sound system's
Left Speaker output and Starboard
Speaker to Right Speaker output.
Starboard
(Right)
Port
(Left)
Stern
(Rear)
Bow
(Front)
Helm Switch
Starboard
Actuator
Port Actuator
Starboard Harness
(Blu/Wht)
Helm
Harness
Switch
Harness
Harness
Connectors
Harness
Connectors
Starboard
Speaker
Port Speaker
Harness
(Blk/Red)
Frame Harness
(Blu/Wht)
Port Harness
(Blu/Wht)
Port Speaker
Starboard Speaker
Harness (Blk/Wht)
Sound
System
Speaker
Harness
Connectors
Speaker
Harnesses
Power
Source
Circuit Protection per
ABYC Codes
(OEM Supplied)
e 6 Amp auto-reset circuit breaker used
on any Power Bimini System that does NOT
use the touch-sensitive controller MUST be
protected by a 15 Amp auto-reset circuit
breaker or a 30 Amp fuse. e 6 Amp auto-
reset circuit breaker provides protection for the
Power Bimini System and NOT for the entire
cra's electrical wiring system. Do NOT use a
replacement fuse less than 30 Amps. Circuit
breakers and fuses do NOT operate the same
and are NOT interchangeable.
