1. To extend the front support arms:

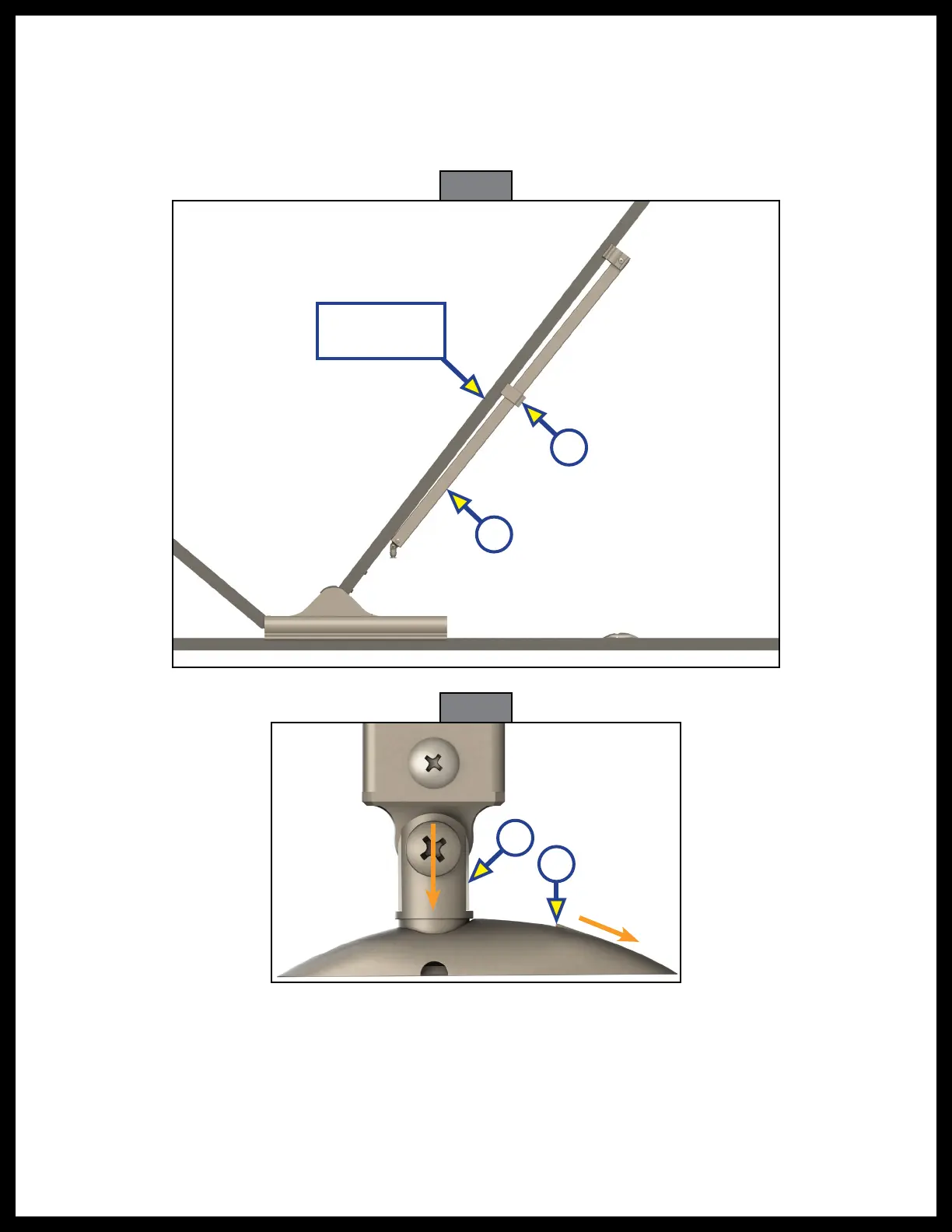

I. Fully open the power bimini top (Fig. 47) until the auto-reset breaker trips.
J. Pull the front support arm (Fig. 47A) out of its EZ Clip (Fig. 47B).
K. Position the swivel barrel over the hinge assembly.
L. Slide and hold the locking button down (Fig. 48A), then insert the swivel barrel (Fig. 48B).
M. Release the locking button.
B
A
Fully Opened
Bimini Frame
Fig. 47
Fig. 48
B
A
