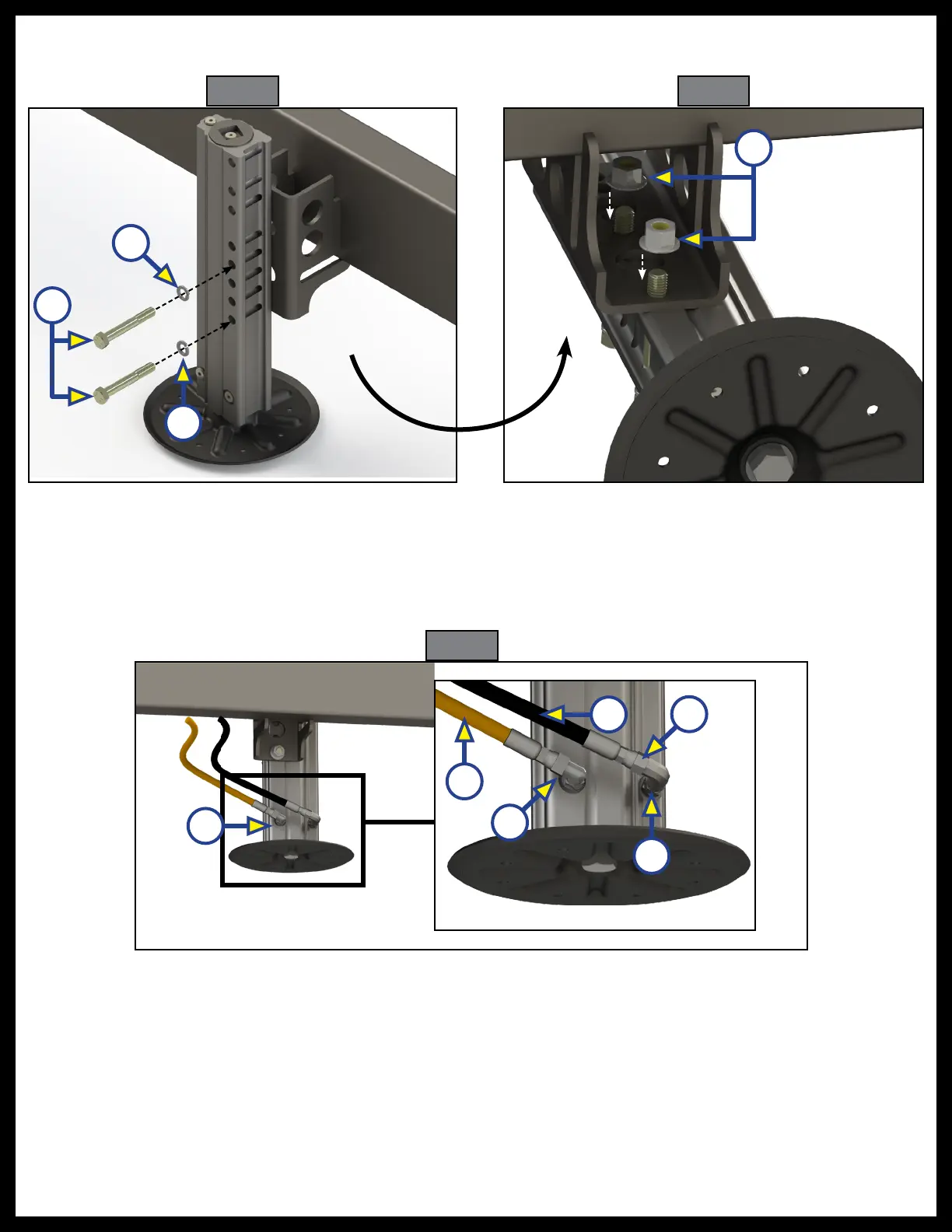

Fig. 16 Fig. 17
Fig. 18
A
C
1/2” - 13 lock nuts (Fig. 17A). Torque to 90 ft/lbs.
5. At the bottom inside-facing rear of the Titan Jack (Fig. 18A), remove the retract port plug and attach
the JIC 90 degree elbow retract fitting (Fig. 18D) and attach the pre-measured orange retract hose (Fig.
18B).
6. At the bottom inside-facing front of the Titan Jack (Fig. 16E), remove the extend port plug and attach a
straight fitting and swivel elbow retract fitting (Fig. 18F). Attach the pre-measured black extend hose (Fig.
18C).
7. Repeat steps 1-6 on the opposite side of the coach.
D
B
E
F
A
A
8. Attach the opposite ends of the extend and retract hoses to the hydraulic pump, see the Hydraulic
Plumbing Diagram section in this manual.
