Lippert Titan Leveling Systems E450 - Hydraulic Plumbing Diagram

Rev: 09.19.23 Page 31 CCD-0007153

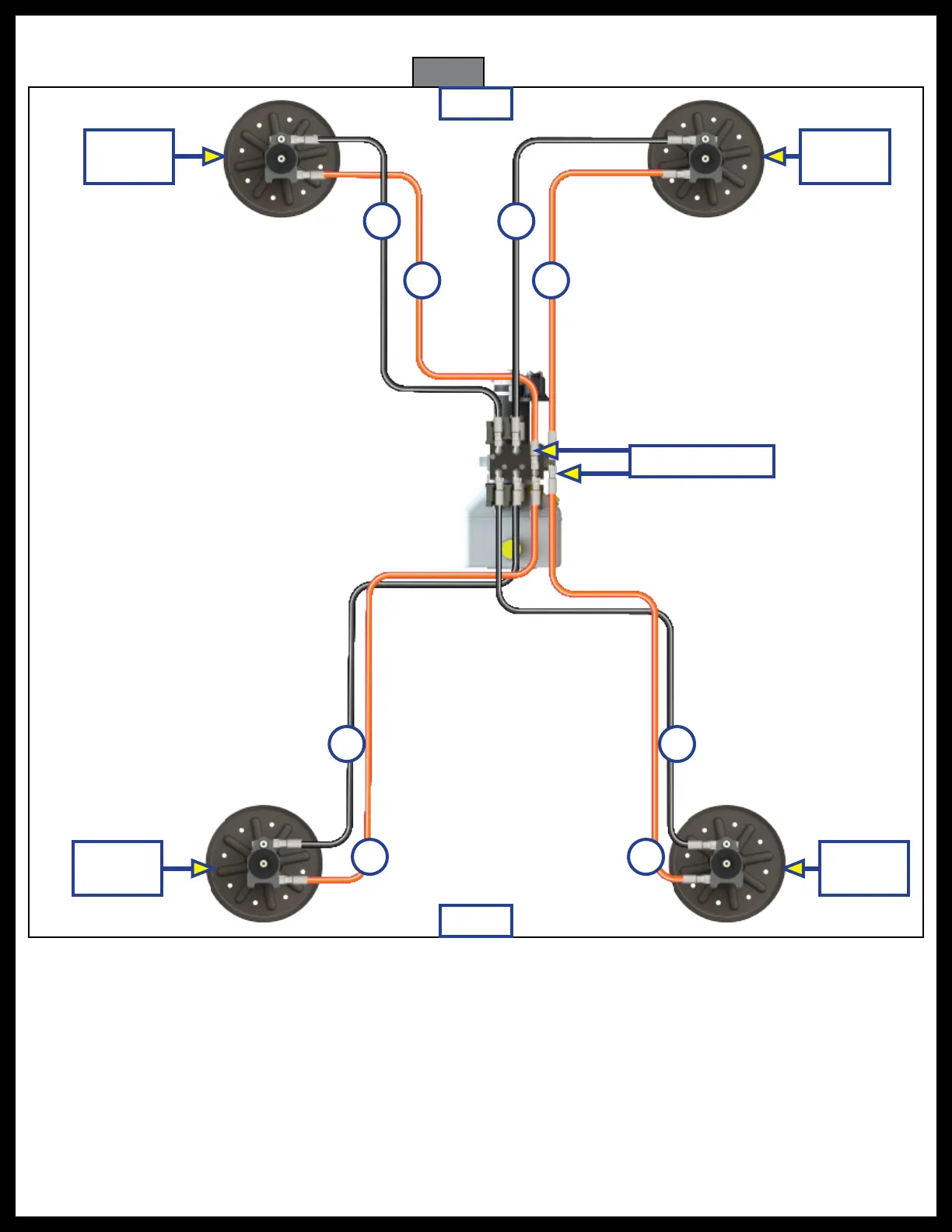

Hydraulic Plumbing Diagram
• Hoses will vary in length by coach model.
• Measure hose and consult Lippert Service. Hose Specs. 3000 p.s.i.; ½” in. I.D.
• Curbside Front - Black Hose - PURPLE Label & Wire
• Roadside Front - Black Hose - GREEN Label & Wire
• Curbside Rear - Black Hose - RED Label & Wire
• Roadside Rear - Black Hose - BLUE Label & Wire
• Return / Retract - Orange Hose
• PSI Switch - Yellow Wire into Blue PSI Wire
Rear
Leveling
Jack
Leveling
Jack
Leveling
Jack
Fig. 66
A B
C D
E
Retract Fittings
F
G
H
Front
Leveling
Jack
