Level Zero Point Calibration
After the system is installed and power is supplied, the Zero Point needs to be calibrated on the LED
touchpad controller prior to operating the jacks. Zero Point is the programmed point that the coach will
return to each time the Auto Level features used. The Zero Point MUST be programmed prior to using the
Auto Level feature to ensure the proper operation of the system. To set the zero point, the control module
must be fully secured in the production intent location.
NOTE: Parking brake MUST be ON in order to operate the leveling system.
NOTE: The LED touchpad controller is only ON while the coach ignition is ON, no operation of leveling is
allowed without the ignition source. Once power is on, the LED touchpad controller will illuminate.

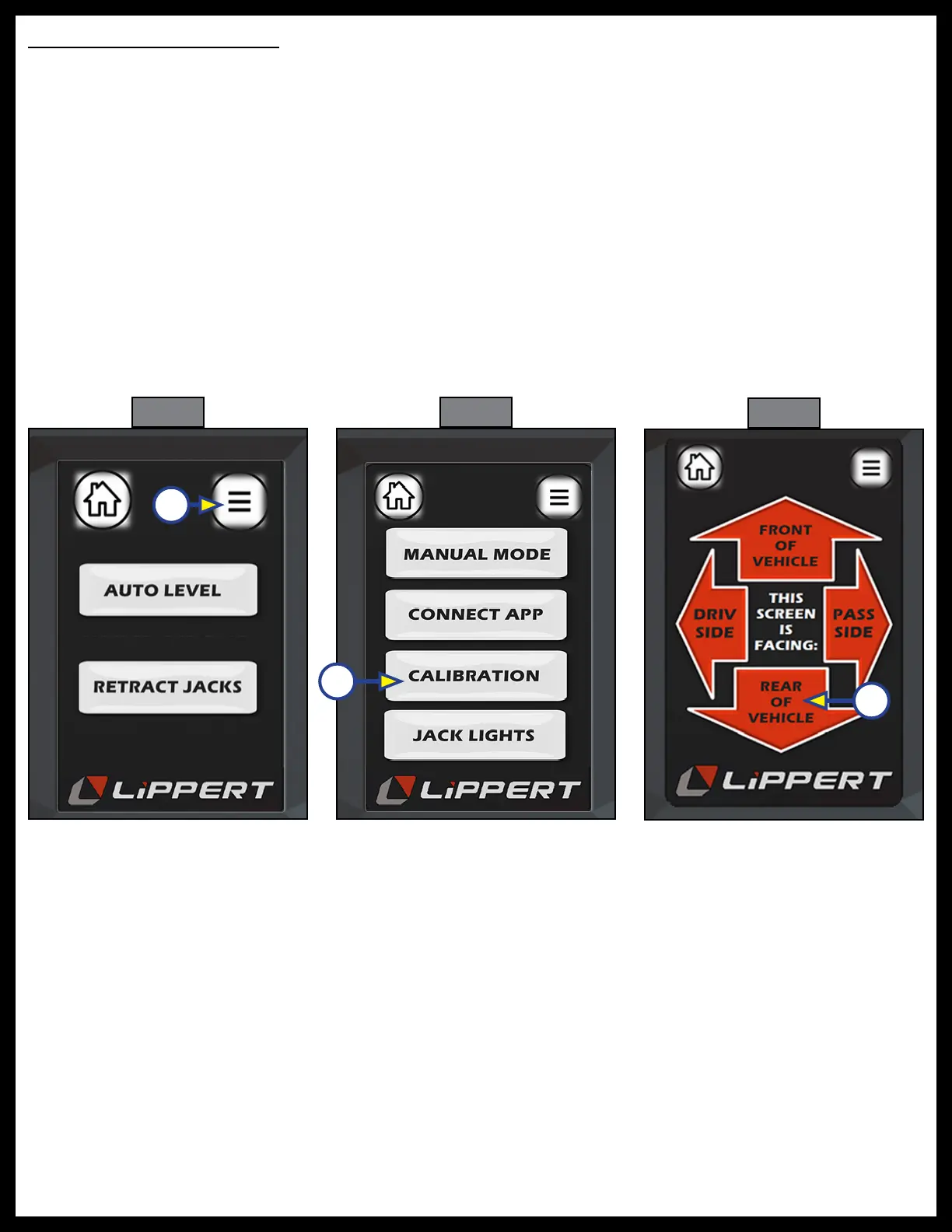

1. At initial power on, the Home screen (Fig. 43) will be displayed. Select the menu icon (Fig. 43A).
2. Select "Calibration" (Fig. 44A) on the Menu screen (Fig. 44).
3. Once the orientation screen (Fig. 45) is displayed, select the arrow that correctly matches the
orientation of the touchpad itself to the orientation of the coach (Fig. 40). i.e. if the screen of the
touchpad is facing the rear of coach, select the, "REAR OF VEHICLE" arrow (Fig. 45A).
A
A
Home Screen Menu Screen
Fig. 43 Fig. 44
Fig. 45
A
