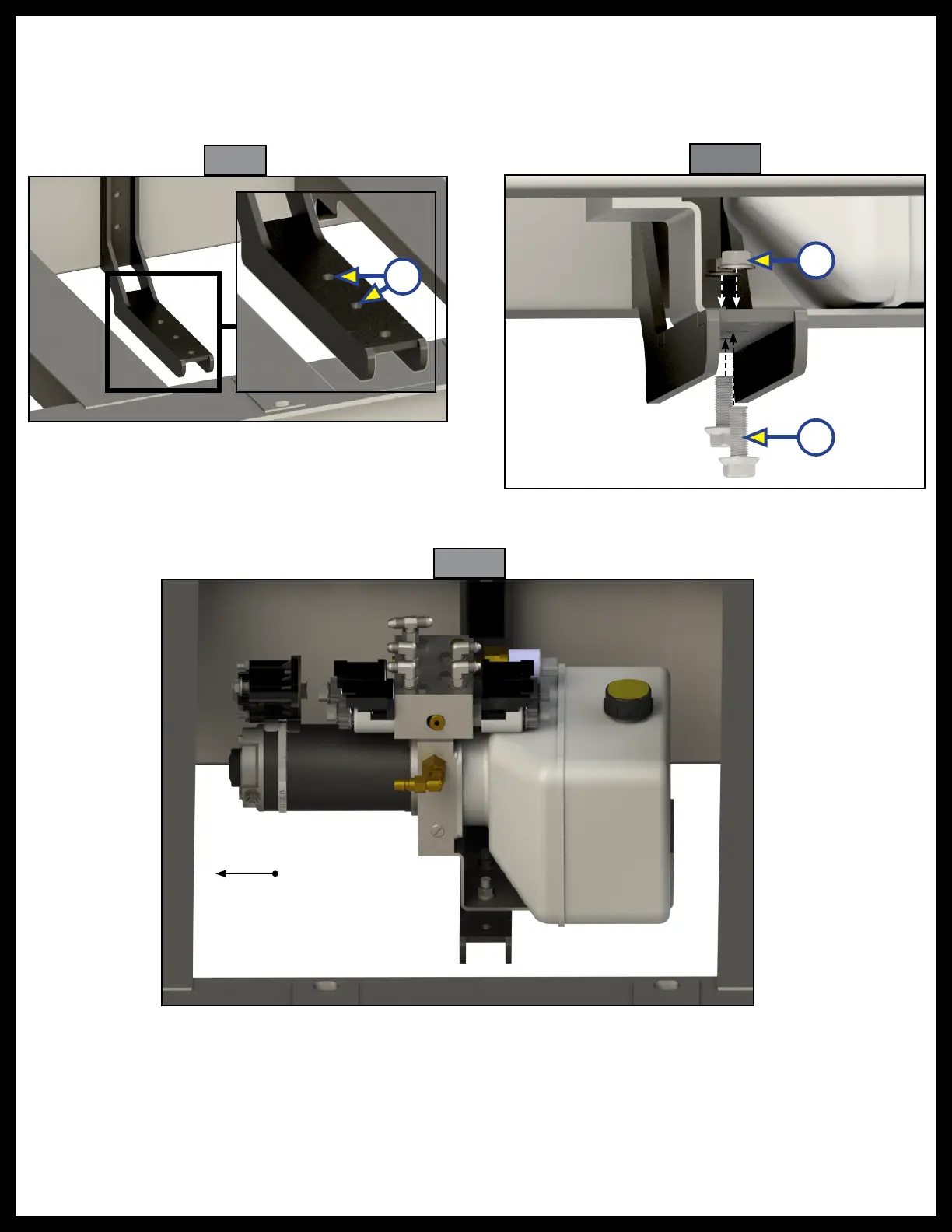

5. Utilizing the two holes closest to the inside of the bracket (Fig. 9A), install the hydraulic power unit to
the bracket using two 3/8"-16 X 1" bolts (Fig. 10B) and nuts (Fig. 10A).
NOTE: Motor must face rear of coach
NOTE: Figure 11 depicts the hydraulic power unit installed onto the hydraulic power unit bracket.
Fig. 9
A
A
B
Fig. 10
Fig. 11
Rear of Coach
