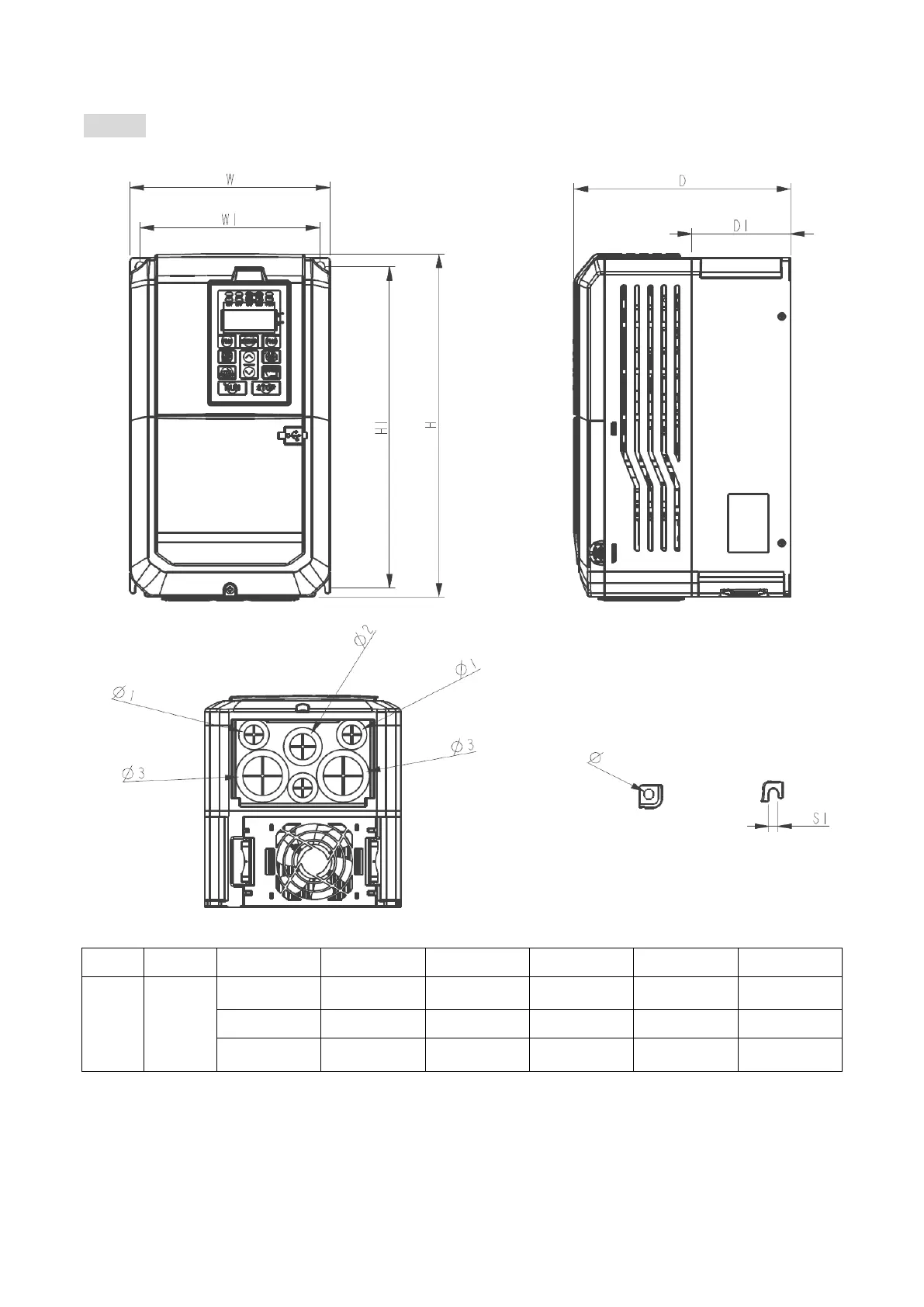

LiteOn EVO 8000 Series - Page 22

19
Frame 3
EVO800043S7D5E20, EVO800043S011E20, EVO800043S015E20
Unit: mm/inch
Series
Frame Size
W
W1
H
H1
D
D1
EVO8000
3
180[7.09]
162[6.38]
310[2.2]
290.6[11.44]
195[7.68]
89[3.5]
S1
Φ
Φ1
Φ2
Φ3
8.4[0.33]
8.4[0.33]
22[0.86]
28[1.1]
44[1.73]
