4.4 I/O Connections
4.4.1 Sink and Source Mode Selection
 Use the Sink/Source switch on the control board to set the multi-function digital input contacts
S1 to S8 to Sink or Source mode.
 Default: Sink mode
F1-F4
F5-F6

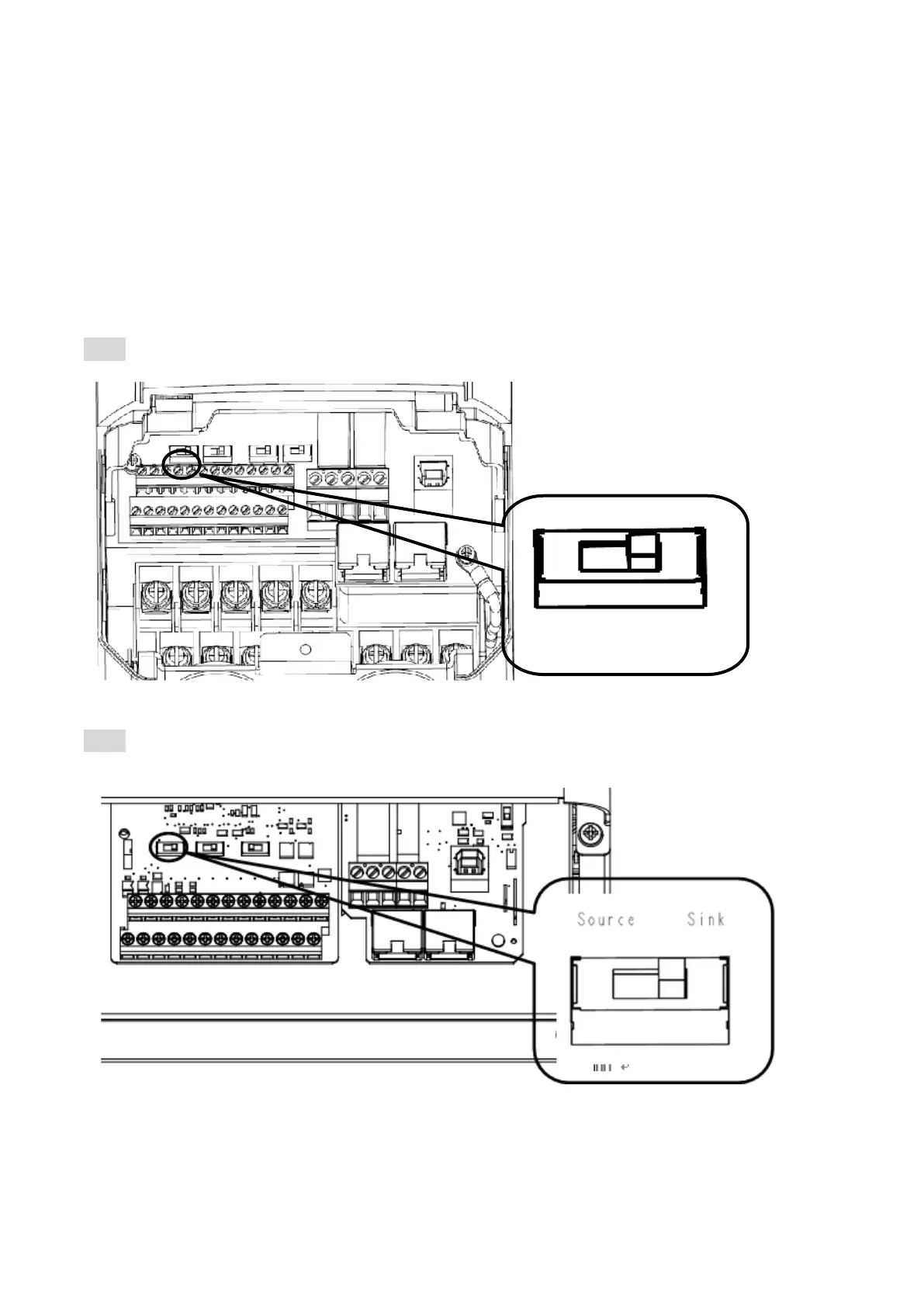

Figure 4.4.1 Sink/Source DIP Switch
Source Sink
