53
4.5 Connection to PC
The drive is equipped with a USB port. The drive can connect to a PC through USB cable to manage
parameter settings using LiteOn PC software.
Note: When USB connection is detected, the communication will be automatically switched from
RS485 to USB, and return to RS-485 when USB is disconnected.
PC
Type AType B
USB Cable
AB-Type

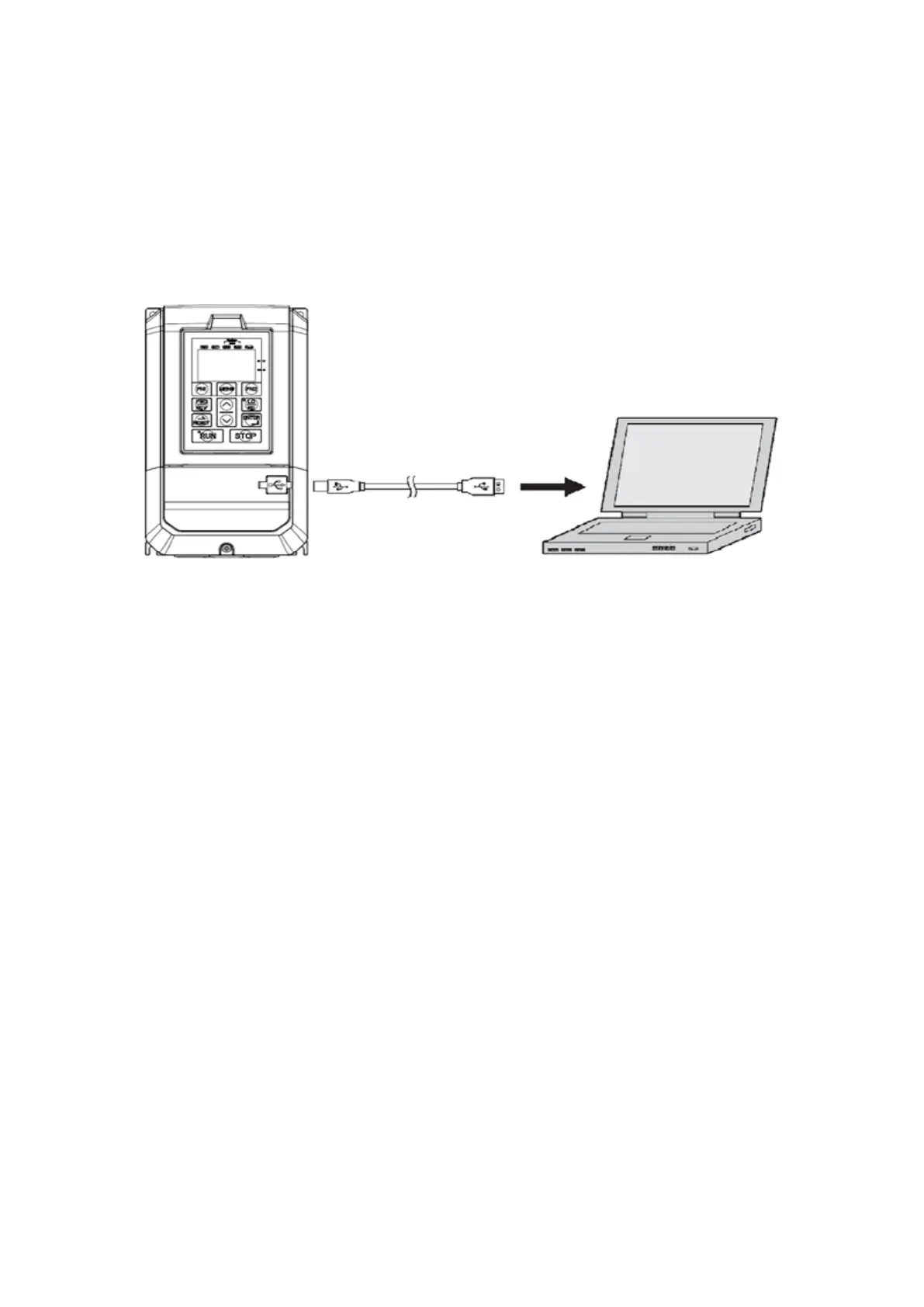

Figure 4.5 Connection to PC
