3.5 The operator is installed in the electric control cabinet
EVO8000 series operators can be used for external pulling. When pulling out, the operator can be
fixed on the electric control cabinet through the communication cable. The locking screw used in
the operator is M4 X P0.7, the screw used for locking. The length must correspond to the thickness
of the door panel of the electric control cabinet. Just confirm that the screw size is M4 X P0.7.
Extension cables and mounting accessories need to be prepared by yourself.
3.5.1 Keypad pull-out method and size
3.5.1.1 Keypad use precautions

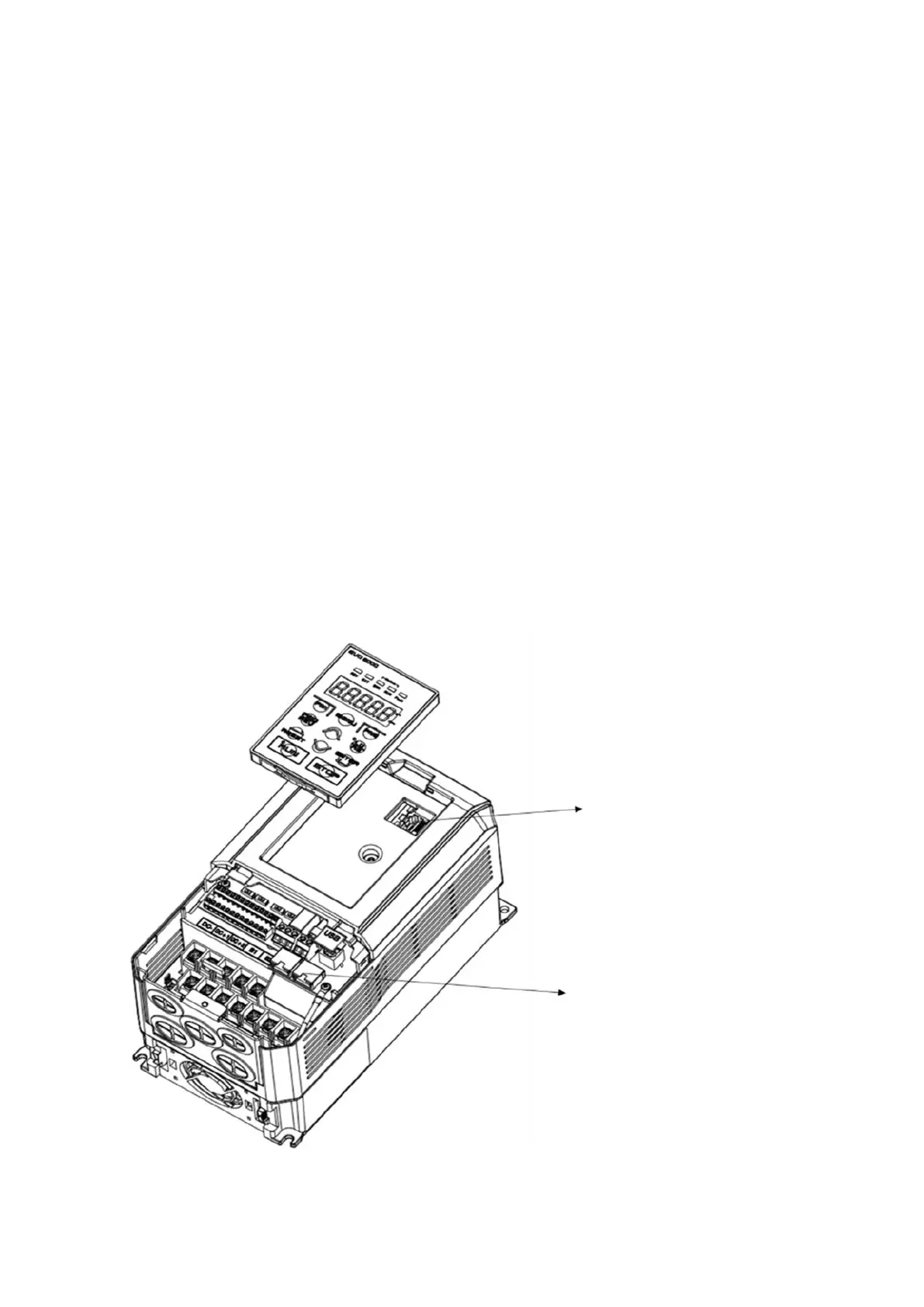

The EVO8000 series has two sets of RS-485 interfaces. The upper part is dedicated to the extension
panel and the lower part is dedicated to the communication function. The two do not support each
other. Be sure to pay attention to the correct function when using it. If it is used incorrectly, there is
a risk of damage.
